ACE_Asynch_Read_Dgram_Result_Impl Class Reference

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Read_Dgram::Result class. More...

#include <Asynch_IO_Impl.h>

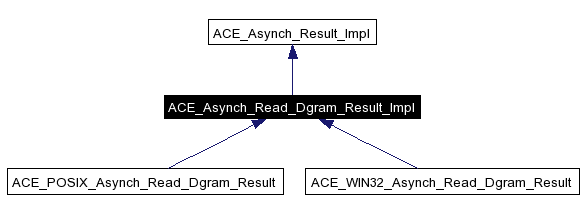

Inheritance diagram for ACE_Asynch_Read_Dgram_Result_Impl:

Inheritance graph
[legend]
Collaboration diagram for ACE_Asynch_Read_Dgram_Result_Impl:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual ~ACE_Asynch_Read_Dgram_Result_Impl (void)
virtual ACE_Message_Blockmessage_block (void) const =0
 Message block which contains the read data.
virtual size_t bytes_to_read (void) const =0
virtual int remote_address (ACE_Addr &addr) const =0
 The address of where the packet came from.
virtual int flags (void) const =0
 The flags used in the read.
virtual ACE_HANDLE handle (void) const =0
 I/O handle used for reading.

Protected Member Functions

 ACE_Asynch_Read_Dgram_Result_Impl (void)
 Do-nothing constructor.

Detailed Description

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Read_Dgram::Result class.


Constructor & Destructor Documentation

ACE_Asynch_Read_Dgram_Result_Impl::~ACE_Asynch_Read_Dgram_Result_Impl void   )  [virtual]


ACE_Asynch_Read_Dgram_Result_Impl::ACE_Asynch_Read_Dgram_Result_Impl void   )  [protected]


Do-nothing constructor.


Member Function Documentation

virtual size_t ACE_Asynch_Read_Dgram_Result_Impl::bytes_to_read void   )  const [pure virtual]


The number of bytes which were requested at the start of the asynchronous read.

Implemented in ACE_POSIX_Asynch_Read_Dgram_Result, and ACE_WIN32_Asynch_Read_Dgram_Result.

virtual int ACE_Asynch_Read_Dgram_Result_Impl::flags void   )  const [pure virtual]


The flags used in the read.

Implemented in ACE_POSIX_Asynch_Read_Dgram_Result, and ACE_WIN32_Asynch_Read_Dgram_Result.

virtual ACE_HANDLE ACE_Asynch_Read_Dgram_Result_Impl::handle void   )  const [pure virtual]


I/O handle used for reading.

Implemented in ACE_POSIX_Asynch_Read_Dgram_Result, and ACE_WIN32_Asynch_Read_Dgram_Result.

virtual ACE_Message_Block* ACE_Asynch_Read_Dgram_Result_Impl::message_block void   )  const [pure virtual]


Message block which contains the read data.

Implemented in ACE_POSIX_Asynch_Read_Dgram_Result, and ACE_WIN32_Asynch_Read_Dgram_Result.

virtual int ACE_Asynch_Read_Dgram_Result_Impl::remote_address ACE_Addr addr  )  const [pure virtual]


The address of where the packet came from.

Implemented in ACE_POSIX_Asynch_Read_Dgram_Result, and ACE_WIN32_Asynch_Read_Dgram_Result.


The documentation for this class was generated from the following files:
