TAO_EC_Gateway_IIOP_Factory Class Reference

Factory for the EC_Gateway_IIOP settings. More...

#include <EC_Gateway_IIOP_Factory.h>

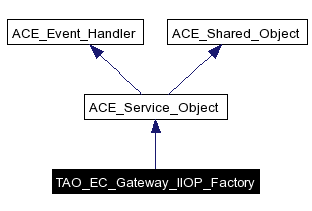

Inheritance diagram for TAO_EC_Gateway_IIOP_Factory:

Inheritance graph
[legend]

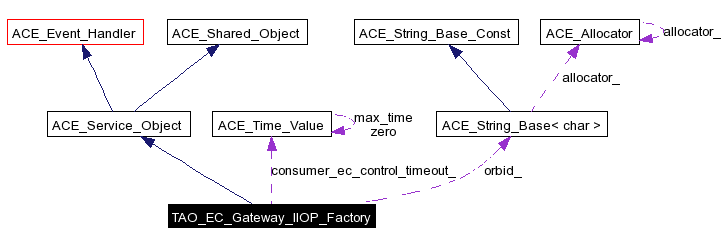

Collaboration diagram for TAO_EC_Gateway_IIOP_Factory:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_EC_Gateway_IIOP_Factory (void)
virtual ~TAO_EC_Gateway_IIOP_Factory (void)
TAO_ECG_ConsumerEC_Controlcreate_consumerec_control (TAO_EC_Gateway_IIOP *gateway)
 Create the consumer event channel control.
void destroy_consumerec_control (TAO_ECG_ConsumerEC_Control *x)
 Destroy consumer event channel control.
int use_ttl (void) const
 Accessors to use_ttl flag.
int use_consumer_proxy_map (void) const
 Accessors to use_consumer_proxy_map flag.
virtual int init (int argc, char *argv[])
virtual int fini (void)

Static Public Member Functions

int init_svcs (void)

Protected Attributes

ACE_CString orbid_
 Use this ORB to locate global resources.
int consumer_ec_control_
 The control policy for the consumer event channel.
int consumer_ec_control_period_
 The consumer event channel control periods in usecs.
ACE_Time_Value consumer_ec_control_timeout_
 The control timeout in usecs for the consumer event channel.
int use_ttl_
int use_consumer_proxy_map_

Private Member Functions

void unsupported_option_value (const char *option_name, const char *option_value)

Detailed Description

Factory for the EC_Gateway_IIOP settings.

Default configuration values can be found in ECG_Defaults.h


Constructor & Destructor Documentation

TAO_EC_Gateway_IIOP_Factory::TAO_EC_Gateway_IIOP_Factory void   )


TAO_EC_Gateway_IIOP_Factory::~TAO_EC_Gateway_IIOP_Factory void   )  [virtual]



Member Function Documentation

TAO_ECG_ConsumerEC_Control * TAO_EC_Gateway_IIOP_Factory::create_consumerec_control TAO_EC_Gateway_IIOP gateway  )


Create the consumer event channel control.

void TAO_EC_Gateway_IIOP_Factory::destroy_consumerec_control TAO_ECG_ConsumerEC_Control x  )


Destroy consumer event channel control.

int TAO_EC_Gateway_IIOP_Factory::fini void   )  [virtual]


Reimplemented from ACE_Shared_Object.

int TAO_EC_Gateway_IIOP_Factory::init int  argc,
char *  argv[]
[virtual]


TAO_BEGIN_VERSIONED_NAMESPACE_DECL int TAO_EC_Gateway_IIOP_Factory::init_svcs void   )  [static]


Helper function to register the Gateway into the service configurator.

void TAO_EC_Gateway_IIOP_Factory::unsupported_option_value const char *  option_name,
const char *  option_value
[private]


Helper for agrument parsing. Prints out an error message about unsupported option value.

ACE_INLINE int TAO_EC_Gateway_IIOP_Factory::use_consumer_proxy_map void   )  const


Accessors to use_consumer_proxy_map flag.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int TAO_EC_Gateway_IIOP_Factory::use_ttl void   )  const


Accessors to use_ttl flag.


Member Data Documentation

int TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_ [protected]


The control policy for the consumer event channel.

int TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_period_ [protected]


The consumer event channel control periods in usecs.

ACE_Time_Value TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_timeout_ [protected]


The control timeout in usecs for the consumer event channel.

ACE_CString TAO_EC_Gateway_IIOP_Factory::orbid_ [protected]


Use this ORB to locate global resources.

int TAO_EC_Gateway_IIOP_Factory::use_consumer_proxy_map_ [protected]


The flag for using the consumer proxy map. With 1 the consumer proxy map is used, meaning that for each unique source id we use a different proxy push consumer, if 0, we only use one proxy push consumer for all source ids.

int TAO_EC_Gateway_IIOP_Factory::use_ttl_ [protected]


If 1, we use the TTL flags, if 0, we just ignore TTL.

Note:
When this flag is set to 0, make sure that no recursive structures exists in the gateway setup for the same source/type combination, else one event will flow continuosly through all gateways.


The documentation for this class was generated from the following files:
Generated on Tue Dec 20 23:42:40 2005 for TAO_RTEvent by  doxygen 1.3.9.1
