TAO_ECG_UDP_Sender Class Reference

Send events received from a "local" EC using UDP. NOT THREAD-SAFE. This class connect as a consumer to an EventChannel and forwards the events it receives from that EC using UDP. More...

#include <ECG_UDP_Sender.h>

Inheritance diagram for TAO_ECG_UDP_Sender:

Inheritance graph
[legend]

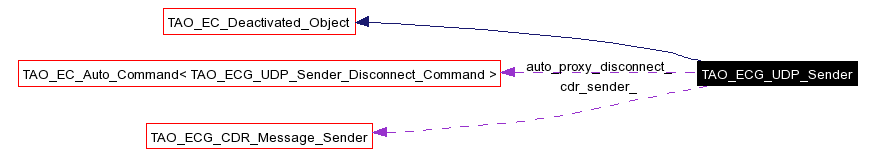

Collaboration diagram for TAO_ECG_UDP_Sender:

Collaboration graph
[legend]
List of all members.

[NOHEADER]

 ~TAO_ECG_UDP_Sender (void)
void init (RtecEventChannelAdmin::EventChannel_ptr lcl_ec, RtecUDPAdmin::AddrServer_ptr addr_server, TAO_ECG_Refcounted_Endpoint endpoint_rptr ACE_ENV_ARG_DECL)
void connect (const RtecEventChannelAdmin::ConsumerQOS &sub ACE_ENV_ARG_DECL)
 Connect or reconnect to the EC with the given subscriptions.
void shutdown (ACE_ENV_SINGLE_ARG_DECL)
TAO_EC_Servant_Var< TAO_ECG_UDP_Sendercreate (CORBA::Boolean crc=0)

Public Member Functions

int mtu (CORBA::ULong mtu)
CORBA::ULong mtu (void) const
int get_local_addr (ACE_INET_Addr &addr)
 Get the local endpoint used to send the events.
virtual void disconnect_push_consumer (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException)
virtual void push (const RtecEventComm::EventSet &events ACE_ENV_ARG_DECL) throw (CORBA::SystemException)

Protected Member Functions

 TAO_ECG_UDP_Sender (CORBA::Boolean crc=0)

Private Types

typedef TAO_EC_Auto_Command<
TAO_ECG_UDP_Sender_Disconnect_Command
ECG_Sender_Auto_Proxy_Disconnect

Private Member Functions

void new_connect (const RtecEventChannelAdmin::ConsumerQOS &sub ACE_ENV_ARG_DECL)
void reconnect (const RtecEventChannelAdmin::ConsumerQOS &sub ACE_ENV_ARG_DECL)

Private Attributes

RtecEventChannelAdmin::ProxyPushSupplier_var supplier_proxy_
 Proxy used to receive events from the Event Channel.
RtecEventChannelAdmin::EventChannel_var lcl_ec_
 Event Channel to which we act as a consumer.
RtecUDPAdmin::AddrServer_var addr_server_
 We query this object to determine where the events should be sent.
TAO_ECG_CDR_Message_Sender cdr_sender_
 Helper for fragmenting and sending cdr-encoded events using udp.
ECG_Sender_Auto_Proxy_Disconnect auto_proxy_disconnect_
 Manages our connection to Supplier Proxy.

Detailed Description

Send events received from a "local" EC using UDP. NOT THREAD-SAFE. This class connect as a consumer to an EventChannel and forwards the events it receives from that EC using UDP.


Member Typedef Documentation

typedef TAO_EC_Auto_Command<TAO_ECG_UDP_Sender_Disconnect_Command> TAO_ECG_UDP_Sender::ECG_Sender_Auto_Proxy_Disconnect [private]



Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_ECG_UDP_Sender::~TAO_ECG_UDP_Sender void   )


TAO_ECG_UDP_Sender::TAO_ECG_UDP_Sender CORBA::Boolean  crc = 0  )  [protected]


Constructor (protected). Clients can create new TAO_ECG_UDP_Sender objects using the static create() method.


Member Function Documentation

void TAO_ECG_UDP_Sender::connect const RtecEventChannelAdmin::ConsumerQOS &sub  ACE_ENV_ARG_DECL  )


Connect or reconnect to the EC with the given subscriptions.

NOTE: if we are already connected to EC and a reconnection is necessary, the EC must have reconnects enabled in order for this method to succeed.

TAO_EC_Servant_Var<TAO_ECG_UDP_Sender> TAO_ECG_UDP_Sender::create CORBA::Boolean  crc = 0  )  [static]


Create a new TAO_ECG_UDP_Sender object. (Constructor access is restricted to insure that all TAO_ECG_UDP_Sender objects are heap-allocated.)

void TAO_ECG_UDP_Sender::disconnect_push_consumer ACE_ENV_SINGLE_ARG_DECL   )  throw (CORBA::SystemException) [virtual]


Invokes shutdown (), which may result in the object being deleted, if refcounting is used to manage its lifetime.

int TAO_ECG_UDP_Sender::get_local_addr ACE_INET_Addr addr  )


Get the local endpoint used to send the events.

void TAO_ECG_UDP_Sender::init RtecEventChannelAdmin::EventChannel_ptr  lcl_ec,
RtecUDPAdmin::AddrServer_ptr  addr_server,
TAO_ECG_Refcounted_Endpoint endpoint_rptr  ACE_ENV_ARG_DECL


Parameters:
lcl_ec Event Channel to which we will act as a consumer of events.
addr_server Address server used to obtain event type to multicast group mapping.
endpoint_rptr Endpoint for sending udp/multicast messages. Endpoint's dgram must be open!
To insure proper resource clean up, if init () is successful, shutdown () must be called when the sender is no longer needed. This is done by disconnect_push_consumer() method. If disconnect_push_consumer() will not be called, it is the responsibility of the user. Furthermore, if shutdown() is not explicitly called by either disconnect_push_consumer () or the user, the sender will clean up the resources in its destructor, however, certain entities involved in cleanup must still exist at that point, e.g., POA.

CORBA::ULong TAO_ECG_UDP_Sender::mtu void   )  const


The sender may need to fragment the message, otherwise the network may drop the packets. Setting the MTU can fail if the value is too small (at least the header + 8 bytes must fit).

int TAO_ECG_UDP_Sender::mtu CORBA::ULong  mtu  )


The sender may need to fragment the message, otherwise the network may drop the packets. Setting the MTU can fail if the value is too small (at least the header + 8 bytes must fit).

void TAO_ECG_UDP_Sender::new_connect const RtecEventChannelAdmin::ConsumerQOS &sub  ACE_ENV_ARG_DECL  )  [private]


void TAO_ECG_UDP_Sender::push const RtecEventComm::EventSet &events  ACE_ENV_ARG_DECL  )  throw (CORBA::SystemException) [virtual]


Invokes shutdown (), which may result in the object being deleted, if refcounting is used to manage its lifetime.

void TAO_ECG_UDP_Sender::reconnect const RtecEventChannelAdmin::ConsumerQOS &sub  ACE_ENV_ARG_DECL  )  [private]


void TAO_ECG_UDP_Sender::shutdown ACE_ENV_SINGLE_ARG_DECL   )


Calling this method may result in decrementing of the reference count (due to deactivation) and deletion of the object.


Member Data Documentation

RtecUDPAdmin::AddrServer_var TAO_ECG_UDP_Sender::addr_server_ [private]


We query this object to determine where the events should be sent.

ECG_Sender_Auto_Proxy_Disconnect TAO_ECG_UDP_Sender::auto_proxy_disconnect_ [private]


Manages our connection to Supplier Proxy.

TAO_ECG_CDR_Message_Sender TAO_ECG_UDP_Sender::cdr_sender_ [private]


Helper for fragmenting and sending cdr-encoded events using udp.

RtecEventChannelAdmin::EventChannel_var TAO_ECG_UDP_Sender::lcl_ec_ [private]


Event Channel to which we act as a consumer.

RtecEventChannelAdmin::ProxyPushSupplier_var TAO_ECG_UDP_Sender::supplier_proxy_ [private]


Proxy used to receive events from the Event Channel.


The documentation for this class was generated from the following files:
