TAO::PG_Property_Set Class Reference

#include <PG_Property_Set.h>

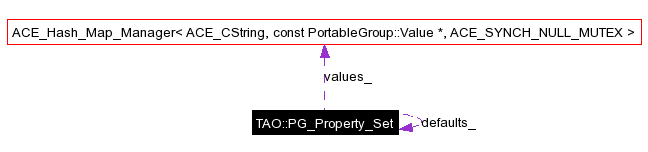

Collaboration diagram for TAO::PG_Property_Set:

[legend]List of all members.

Public Member Functions
	PG_Property_Set (void)
	PG_Property_Set (const PortableGroup::Properties &property_set ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	PG_Property_Set (const PortableGroup::Properties &property_set, PG_Property_Set *defaults ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	PG_Property_Set (PG_Property_Set *defaults)
	~PG_Property_Set ()
int	find (const ACE_CString &key, const PortableGroup::Value *&pValue) const
void	decode (const PortableGroup::Properties &property_set ACE_ENV_ARG_DECL) throw (CORBA::SystemException)
void	clear ()
void	remove (const PortableGroup::Properties &property_set) throw (CORBA::SystemException)
void	set_property (const char *name, const PortableGroup::Value &value ACE_ENV_ARG_DECL)
void	export_properties (PortableGroup::Properties &property_set) const
Private Types
typedef ACE_Hash_Map_Manager< ACE_CString, const PortableGroup::Value *, ACE_SYNCH_NULL_MUTEX >	ValueMap
typedef ACE_Hash_Map_Iterator< ACE_CString, const PortableGroup::Value *, ACE_SYNCH_NULL_MUTEX >	ValueMapIterator
Private Member Functions
void	merge_properties (ValueMap &merged_values) const
	PG_Property_Set (const PG_Property_Set &rhs)
PG_Property_Set &	operator= (const PG_Property_Set &rhs)
Private Attributes
TAO_SYNCH_MUTEX	internals_
ValueMap	values_
PG_Property_Set *	defaults_

---

Detailed Description

The PG_Property_Set captures the set of properties from a PortableGroup::Properties structure in a more usable format (a hash map), and provides methods for operating on these properties.

It supports "chains" of property sets to implement default value semantics. If a requested property is not found in this set, the default set(s) are searched. Thus, any property found at this level overrides the defaults.

See: PG_Properties_Support for more details on use of this object.

A PG_Property_Set may also be used for it's original purpose as a stand-alone helper class for extracting values from PortableGroup::Properties.

---

Member Typedef Documentation

typedef ACE_Hash_Map_Manager< ACE_CString, const PortableGroup::Value *, ACE_SYNCH_NULL_MUTEX> TAO::PG_Property_Set::ValueMap [private]

typedef ACE_Hash_Map_Iterator< ACE_CString, const PortableGroup::Value *, ACE_SYNCH_NULL_MUTEX> TAO::PG_Property_Set::ValueMapIterator [private]

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO::PG_Property_Set::PG_Property_Set (  void   )

constructor: empty set with no defaults.

TAO::PG_Property_Set::PG_Property_Set (  const PortableGroup::Properties &property_set  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException)

constructor Parameters: property_set  the properties to be decoded

TAO::PG_Property_Set::PG_Property_Set (  const PortableGroup::Properties &  property_set, PG_Property_Set *defaults  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException)

constructor with defaults Parameters: property_set  the properties to be decoded defaults  a propert set decoder that supplies default values.

TAO::PG_Property_Set::PG_Property_Set (  PG_Property_Set *  defaults  )

constructor with defaults, but no properties (yet) (note this is not a copy constructor) Parameters: defaults  a propert set decoder that supplies default values.

TAO::PG_Property_Set::~PG_Property_Set (   )

TAO::PG_Property_Set::PG_Property_Set (  const PG_Property_Set &  rhs  )  [private]

---

Member Function Documentation

void TAO::PG_Property_Set::clear (   )

Clear properties Does not clear default properties.

void TAO::PG_Property_Set::decode (  const PortableGroup::Properties &property_set  ACE_ENV_ARG_DECL  )  throw (CORBA::SystemException)

Decode additional properties Duplicate values replace previous values. Parameters: property_set  the properties to be decoded

void TAO::PG_Property_Set::export_properties (  PortableGroup::Properties &  property_set  )  const

Export the properties to a PortableGroup::Properties This method is intended to be used to implement the PropertyManager::get_*_properties methods. If you want to access the properties for any purpose other than exporting them across a CORBA interface, it is much more efficient to use the find interface.

int TAO::PG_Property_Set::find (  const ACE_CString &  key, const PortableGroup::Value *&  pValue )  const

general purpose find. returns a pointer to an Any if templated methods were available: template <typename type=""> int find (const ACE_CString & key, TYPE & value) const; instead, see global function below Parameters: key  the (simple) name of the property pValue  an out parameter to receive a pointer to the Any containing the value Returns: boolean true if found

void TAO::PG_Property_Set::merge_properties (  ValueMap &  merged_values  )  const [private]

populate a ValueMap with the properties known to this decoder including but overriding default values

PG_Property_Set& TAO::PG_Property_Set::operator= (  const PG_Property_Set &  rhs  )  [private]

void TAO::PG_Property_Set::remove (  const PortableGroup::Properties &  property_set  )  throw (CORBA::SystemException)

void TAO::PG_Property_Set::set_property (  const char *  name, const PortableGroup::Value &value  ACE_ENV_ARG_DECL )

set or replace a single property

---

Member Data Documentation

PG_Property_Set* TAO::PG_Property_Set::defaults_ [private]

a parent to another property decoder that provides default values these can be chained indefinitely. Todo: reference counted pointers would be a good idea here.

TAO_SYNCH_MUTEX TAO::PG_Property_Set::internals_ [mutable, private]

Protect internal state.

ValueMap TAO::PG_Property_Set::values_ [private]

---

The documentation for this class was generated from the following files:

• PG_Property_Set.h
• PG_Property_Set.cpp

---
