TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, > Class Template Reference

TAO_ESF_Delayed_Operations. More...

#include <ESF_Delayed_Changes.h>

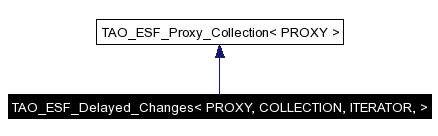

Inheritance diagram for TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >:

Inheritance graph
[legend]

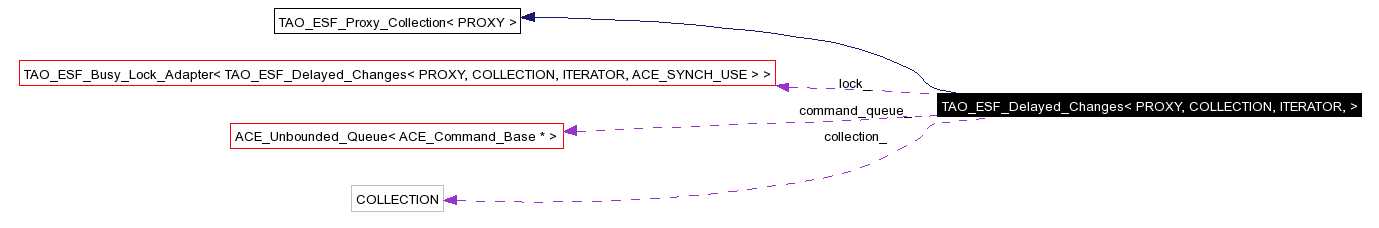

Collaboration diagram for TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef TAO_ESF_Connected_Command<
TAO_ESF_Delayed_Changes<
PROXY, COLLECTION, ITERATOR,
ACE_SYNCH_USE >, PROXY >
Connected_Command
typedef TAO_ESF_Reconnected_Command<
TAO_ESF_Delayed_Changes<
PROXY, COLLECTION, ITERATOR,
ACE_SYNCH_USE >, PROXY >
Reconnected_Command
typedef TAO_ESF_Disconnected_Command<
TAO_ESF_Delayed_Changes<
PROXY, COLLECTION, ITERATOR,
ACE_SYNCH_USE >, PROXY >
Disconnected_Command
typedef TAO_ESF_Shutdown_Command<
TAO_ESF_Delayed_Changes<
PROXY, COLLECTION, ITERATOR,
ACE_SYNCH_USE > >
Shutdown_Command

Public Member Functions

 TAO_ESF_Delayed_Changes (void)
 TAO_ESF_Delayed_Changes (const COLLECTION &collection)
int busy (void)
int idle (void)
int execute_delayed_operations (void)
void connected_i (PROXY *proxy ACE_ENV_ARG_DECL)
void reconnected_i (PROXY *proxy ACE_ENV_ARG_DECL)
void disconnected_i (PROXY *proxy ACE_ENV_ARG_DECL)
void shutdown_i (ACE_ENV_SINGLE_ARG_DECL)
virtual void for_each (TAO_ESF_Worker< PROXY > *worker ACE_ENV_ARG_DECL)
virtual void connected (PROXY *proxy ACE_ENV_ARG_DECL)
virtual void reconnected (PROXY *proxy ACE_ENV_ARG_DECL)
virtual void disconnected (PROXY *proxy ACE_ENV_ARG_DECL)
 Remove an element from the collection.
virtual void shutdown (ACE_ENV_SINGLE_ARG_DECL)
 The EC is shutting down, must release all the elements.

Private Types

typedef TAO_ESF_Busy_Lock_Adapter<
TAO_ESF_Delayed_Changes<
PROXY, COLLECTION, ITERATOR,
ACE_SYNCH_USE > >
Busy_Lock

Private Attributes

COLLECTION collection_
Busy_Lock lock_
ACE_SYNCH_MUTEX_T busy_lock_
ACE_SYNCH_CONDITION_T busy_cond_
CORBA::ULong busy_count_
CORBA::ULong write_delay_count_
CORBA::ULong busy_hwm_
 Control variables for the concurrency policies.
CORBA::ULong max_write_delay_
ACE_Unbounded_Queue< ACE_Command_Base * > command_queue_

Detailed Description

template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL>
class TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >

TAO_ESF_Delayed_Operations.

This class implements the Delayed Operations protocol to solve the concurrency challenges outlined in the documentation of TAO_ESF_Proxy_Collection. In short the class delays changes by putting them on an "operation queue", the operations are stored as command objects in this queue and executed once the system is quiescent (i.e. no threads are iterating over the collection). The algorithm implemented so far is:


Member Typedef Documentation

template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
typedef TAO_ESF_Busy_Lock_Adapter<TAO_ESF_Delayed_Changes<PROXY,COLLECTION,ITERATOR,ACE_SYNCH_USE> > TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::Busy_Lock [private]


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
typedef TAO_ESF_Connected_Command<TAO_ESF_Delayed_Changes<PROXY,COLLECTION,ITERATOR,ACE_SYNCH_USE>,PROXY> TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::Connected_Command


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
typedef TAO_ESF_Disconnected_Command<TAO_ESF_Delayed_Changes<PROXY,COLLECTION,ITERATOR,ACE_SYNCH_USE>,PROXY> TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::Disconnected_Command


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
typedef TAO_ESF_Reconnected_Command<TAO_ESF_Delayed_Changes<PROXY,COLLECTION,ITERATOR,ACE_SYNCH_USE>,PROXY> TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::Reconnected_Command


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
typedef TAO_ESF_Shutdown_Command<TAO_ESF_Delayed_Changes<PROXY,COLLECTION,ITERATOR,ACE_SYNCH_USE> > TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::Shutdown_Command



Constructor & Destructor Documentation

template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::TAO_ESF_Delayed_Changes void   )


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::TAO_ESF_Delayed_Changes const COLLECTION &  collection  )



Member Function Documentation

template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
int TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::busy void   )


template<class PROXY, class C, class I, ACE_SYNCH_DECL >
void TAO_ESF_Delayed_Changes< PROXY, C, I, >::connected PROXY *proxy  ACE_ENV_ARG_DECL  )  [virtual]


Insert a new element into the collection. The collection assumes ownership of the element.

Implements TAO_ESF_Proxy_Collection< PROXY >.

template<class PROXY, class C, class I, ACE_SYNCH_DECL >
TAO_BEGIN_VERSIONED_NAMESPACE_DECL void TAO_ESF_Delayed_Changes< PROXY, C, I, >::connected_i PROXY *proxy  ACE_ENV_ARG_DECL  )


template<class PROXY, class C, class I, ACE_SYNCH_DECL >
void TAO_ESF_Delayed_Changes< PROXY, C, I, >::disconnected PROXY *proxy  ACE_ENV_ARG_DECL  )  [virtual]


Remove an element from the collection.

Implements TAO_ESF_Proxy_Collection< PROXY >.

template<class PROXY, class C, class I, ACE_SYNCH_DECL >
void TAO_ESF_Delayed_Changes< PROXY, C, I, >::disconnected_i PROXY *proxy  ACE_ENV_ARG_DECL  )


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
int TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::execute_delayed_operations void   )


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
virtual void TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::for_each TAO_ESF_Worker< PROXY > *worker  ACE_ENV_ARG_DECL  )  [virtual]


Iterate over the collection and invoke worker->work() for each member of the collection. This encapsulates

Implements TAO_ESF_Proxy_Collection< PROXY >.

template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
int TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::idle void   )


template<class PROXY, class C, class I, ACE_SYNCH_DECL >
void TAO_ESF_Delayed_Changes< PROXY, C, I, >::reconnected PROXY *proxy  ACE_ENV_ARG_DECL  )  [virtual]


Insert an element into the collection. No errors can be raised if the element is already present. The collection assumes ownership, i.e. must invoke <proxy->_decr_refcnt()> if the element is already present in the collection.

Implements TAO_ESF_Proxy_Collection< PROXY >.

template<class PROXY, class C, class I, ACE_SYNCH_DECL >
void TAO_ESF_Delayed_Changes< PROXY, C, I, >::reconnected_i PROXY *proxy  ACE_ENV_ARG_DECL  )


template<class PROXY, class C, class I, ACE_SYNCH_DECL >
void TAO_ESF_Delayed_Changes< PROXY, C, I, >::shutdown ACE_ENV_SINGLE_ARG_DECL   )  [virtual]


The EC is shutting down, must release all the elements.

Implements TAO_ESF_Proxy_Collection< PROXY >.

template<class PROXY, class C, class I, ACE_SYNCH_DECL >
void TAO_ESF_Delayed_Changes< PROXY, C, I, >::shutdown_i ACE_ENV_SINGLE_ARG_DECL   )



Member Data Documentation

template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
ACE_SYNCH_CONDITION_T TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::busy_cond_ [private]


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
CORBA::ULong TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::busy_count_ [private]


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
CORBA::ULong TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::busy_hwm_ [private]


Control variables for the concurrency policies.

template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
ACE_SYNCH_MUTEX_T TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::busy_lock_ [private]


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
COLLECTION TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::collection_ [private]


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
ACE_Unbounded_Queue<ACE_Command_Base*> TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::command_queue_ [private]


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
Busy_Lock TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::lock_ [private]


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
CORBA::ULong TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::max_write_delay_ [private]


template<class PROXY, class COLLECTION, class ITERATOR, ACE_SYNCH_DECL >
CORBA::ULong TAO_ESF_Delayed_Changes< PROXY, COLLECTION, ITERATOR, >::write_delay_count_ [private]



The documentation for this class was generated from the following files:
