CIAO::Deployment_Configuration Class Reference

A class that provides strategies on deployment topology. More...

#include <Deployment_Configuration.h>

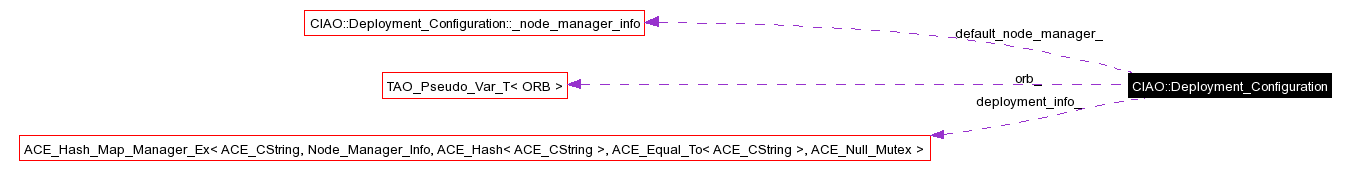

Collaboration diagram for CIAO::Deployment_Configuration:

Collaboration graph
List of all members.

Public Types

typedef CIAO::Deployment_Configuration::_node_manager_info Node_Manager_Info

Public Member Functions

 Deployment_Configuration (CORBA::ORB_ptr o)
virtual ~Deployment_Configuration (void)
int init (const char *filename)
virtual const char * get_node_manager_ior (const char *name)
virtual const char * get_default_node_manager_ior ()
virtual ::Deployment::NodeManager_ptr get_node_manager (const char *name ACE_ENV_ARG_DECL_WITH_DEFAULTS)
virtual ::Deployment::NodeManager_ptr get_default_node_manager (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)

Protected Attributes

CORBA::ORB_var orb_
ACE_Hash_Map_Manager_Ex< ACE_CString,
Node_Manager_Info, ACE_Hash<
ACE_CString >, ACE_Equal_To<
ACE_CString >, ACE_Null_Mutex
Node_Manager_Info default_node_manager_

Detailed Description

A class that provides strategies on deployment topology.

This class provides strategies on how the DomainApplicationManager should deploy an deployment plan at domain-level. This is achieved by providing mappings from deployment destination names to actually NodeManager daemon IORs, and the strategy for which default NodeManager daemons a deployment mechanism should use.

This is a trivial implementation of the deployment configuration strategy. We can enhance this class later on to provide different deployment location strategies, such as naming service.

Member Typedef Documentation

typedef struct CIAO::Deployment_Configuration::_node_manager_info CIAO::Deployment_Configuration::Node_Manager_Info

Constructor & Destructor Documentation

CIAO::Deployment_Configuration::Deployment_Configuration CORBA::ORB_ptr  o  )

CIAO::Deployment_Configuration::~Deployment_Configuration void   )  [virtual]


Member Function Documentation

Deployment::NodeManager_ptr CIAO::Deployment_Configuration::get_default_node_manager ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )

Return the reference to the default NodeManager the DomainApplicationManager should use to deploy a node-level deployment plan..

Return values:
nil if no valid daemon is configured.

const char * CIAO::Deployment_Configuration::get_default_node_manager_ior  )  [virtual]

Return the default NodeManager the DomainApplicationManager should use to deploy a component. In this implementation, the first entry in the deployment configuration data file is always the entry for default activator.

Return values:
0 if no valid daemon is configured.

Deployment::NodeManager_ptr CIAO::Deployment_Configuration::get_node_manager const char *name  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )

Return values:
nil if no valid name were found.

const char * CIAO::Deployment_Configuration::get_node_manager_ior const char *  name  )  [virtual]

Return values:
0 if no valid name were found. When name = 0, then this function behave exactly as get_default_activator_ior.

int CIAO::Deployment_Configuration::init const char *  filename  )

Init method takes the filename to a configuration file which has a simple line format of name, ior string delimited by a space in each line.

name IOR-string

Return values:
0 on success.
-1 otherwise.

Member Data Documentation

Node_Manager_Info CIAO::Deployment_Configuration::default_node_manager_ [protected]

ACE_Hash_Map_Manager_Ex<ACE_CString, Node_Manager_Info, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::Deployment_Configuration::deployment_info_ [protected]

CORBA::ORB_var CIAO::Deployment_Configuration::orb_ [protected]

The documentation for this class was generated from the following files:
