ACE_WIN32_Asynch_Write_File_Result Class Reference

This class provides implementation for ACE_Asynch_Write_File_Result for WIN32 platforms. More...

#include <WIN32_Asynch_IO.h>

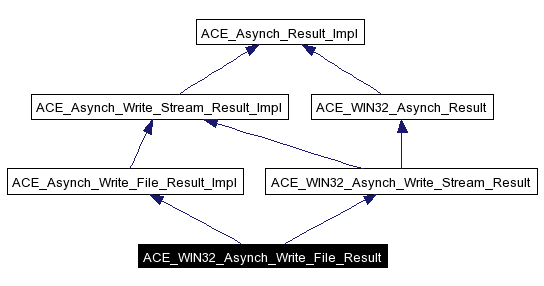

Inheritance diagram for ACE_WIN32_Asynch_Write_File_Result:

Inheritance graph
[legend]

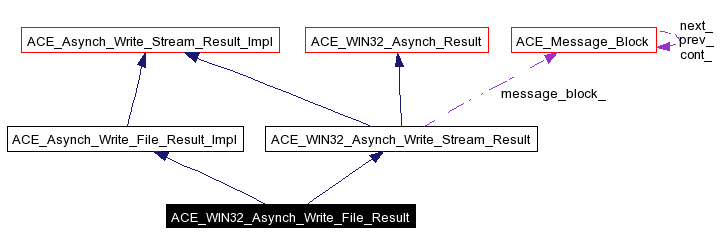

Collaboration diagram for ACE_WIN32_Asynch_Write_File_Result:

Collaboration graph
[legend]
List of all members.

Public Member Functions

size_t bytes_transferred (void) const
 Number of bytes transferred by the operation.
const void * act (void) const
 ACT associated with the operation.
int success (void) const
 Did the operation succeed?
const void * completion_key (void) const
u_long error (void) const
 Error value if the operation fail.
ACE_HANDLE event (void) const
 Event associated with the OVERLAPPED structure.
u_long offset (void) const
 This really make sense only when doing file I/O.
u_long offset_high (void) const
 Offset_high associated with the OVERLAPPED structure.
int priority (void) const
int signal_number (void) const
 No-op. Returns 0.
size_t bytes_to_write (void) const
ACE_Message_Blockmessage_block (void) const
 Message block that contains the data to be written.
ACE_HANDLE handle (void) const
 I/O handle used for writing.
int post_completion (ACE_Proactor_Impl *proactor)
 Post <this> to the Proactor's completion port.

Protected Member Functions

 ACE_WIN32_Asynch_Write_File_Result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_write, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event, int priority, int signal_number=0, int gather_enabled=0)
virtual void complete (size_t bytes_transferred, int success, const void *completion_key, u_long error)
 ACE_Proactor will call this method when the write completes.
virtual ~ACE_WIN32_Asynch_Write_File_Result (void)
 Destructor.

Friends

class ACE_WIN32_Asynch_Write_File
 Factory class will have special permission.
class ACE_WIN32_Proactor
 Proactor class has special permission.

Detailed Description

This class provides implementation for ACE_Asynch_Write_File_Result for WIN32 platforms.

This class has all the information necessary for the <handler> to uniquiely identify the completion of the asynchronous write.

This class differs slightly from ACE_Asynch_Write_Stream::Result as it calls back <ACE_Handler::handle_write_file> on the <handler> instead of <ACE_Handler::handle_write_stream>. No additional state is required by this class as ACE_Asynch_Result can store the <offset>.


Constructor & Destructor Documentation

ACE_WIN32_Asynch_Write_File_Result::ACE_WIN32_Asynch_Write_File_Result const ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block message_block,
size_t  bytes_to_write,
const void *  act,
u_long  offset,
u_long  offset_high,
ACE_HANDLE  event,
int  priority,
int  signal_number = 0,
int  gather_enabled = 0
[protected]


Constructor is protected since creation is limited to ACE_Asynch_Write_File factory.

ACE_WIN32_Asynch_Write_File_Result::~ACE_WIN32_Asynch_Write_File_Result void   )  [protected, virtual]


Destructor.


Member Function Documentation

const void * ACE_WIN32_Asynch_Write_File_Result::act void   )  const [virtual]


ACT associated with the operation.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

size_t ACE_WIN32_Asynch_Write_File_Result::bytes_to_write void   )  const [virtual]


The number of bytes which were requested at the start of the asynchronous write.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

size_t ACE_WIN32_Asynch_Write_File_Result::bytes_transferred void   )  const [virtual]


Number of bytes transferred by the operation.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

void ACE_WIN32_Asynch_Write_File_Result::complete size_t  bytes_transferred,
int  success,
const void *  completion_key,
u_long  error
[protected, virtual]


ACE_Proactor will call this method when the write completes.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

const void * ACE_WIN32_Asynch_Write_File_Result::completion_key void   )  const [virtual]


This returns the ACT associated with the handle when it was registered with the I/O completion port. This ACT is not the same as the ACT associated with the asynchronous operation.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

u_long ACE_WIN32_Asynch_Write_File_Result::error void   )  const [virtual]


Error value if the operation fail.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

ACE_HANDLE ACE_WIN32_Asynch_Write_File_Result::event void   )  const [virtual]


Event associated with the OVERLAPPED structure.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

ACE_HANDLE ACE_WIN32_Asynch_Write_File_Result::handle void   )  const [virtual]


I/O handle used for writing.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

ACE_Message_Block & ACE_WIN32_Asynch_Write_File_Result::message_block void   )  const [virtual]


Message block that contains the data to be written.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

u_long ACE_WIN32_Asynch_Write_File_Result::offset void   )  const [virtual]


This really make sense only when doing file I/O.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

u_long ACE_WIN32_Asynch_Write_File_Result::offset_high void   )  const [virtual]


Offset_high associated with the OVERLAPPED structure.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

int ACE_WIN32_Asynch_Write_File_Result::post_completion ACE_Proactor_Impl proactor  )  [virtual]


Post <this> to the Proactor's completion port.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

int ACE_WIN32_Asynch_Write_File_Result::priority void   )  const [virtual]


The priority of the asynchronous operation. Currently, this is not supported on Win32.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

int ACE_WIN32_Asynch_Write_File_Result::signal_number void   )  const [virtual]


No-op. Returns 0.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.

int ACE_WIN32_Asynch_Write_File_Result::success void   )  const [virtual]


Did the operation succeed?

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.


Friends And Related Function Documentation

friend class ACE_WIN32_Asynch_Write_File [friend]


Factory class will have special permission.

friend class ACE_WIN32_Proactor [friend]


Proactor class has special permission.

Reimplemented from ACE_WIN32_Asynch_Write_Stream_Result.


The documentation for this class was generated from the following files:
