ACE_UPIPE_Stream Class Reference

Defines the method that transfer data on a UPIPE. More...

#include <UPIPE_Stream.h>

Inheritance diagram for ACE_UPIPE_Stream:

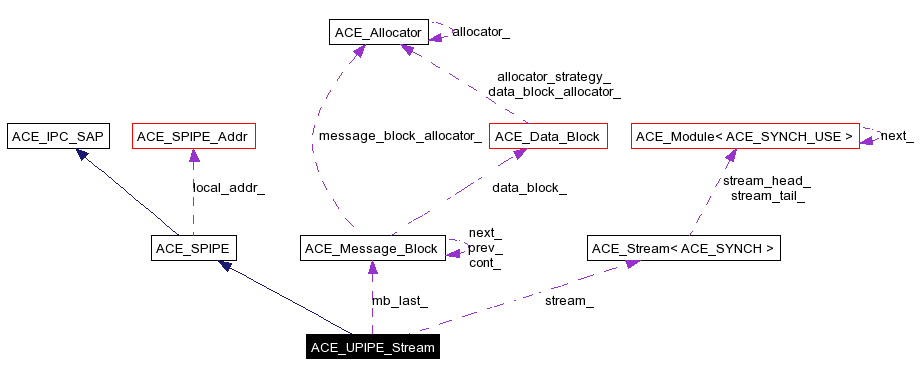

[legend]Collaboration diagram for ACE_UPIPE_Stream:

[legend]List of all members.

Public Types
typedef ACE_Stream< ACE_SYNCH >	MT_Stream
typedef ACE_UPIPE_Addr	PEER_ADDR
Public Member Functions
	ACE_UPIPE_Stream (void)
virtual	~ACE_UPIPE_Stream (void)
int	close (void)
	Shut down the UPIPE and release resources.
ACE_HANDLE	get_handle (void) const
	Return the underlying I/O handle.
int	send (ACE_Message_Block *mb_p, ACE_Time_Value *timeout=0)
int	recv (ACE_Message_Block *&mb_p, ACE_Time_Value *timeout=0)
ssize_t	send (const char *buffer, size_t n, ACE_Time_Value *timeout=0)
ssize_t	recv (char *buffer, size_t n, ACE_Time_Value *timeout=0)
ssize_t	send_n (const char *buffer, size_t n, ACE_Time_Value *timeout=0)
ssize_t	recv_n (char *buffer, size_t n, ACE_Time_Value *timeout=0)
int	control (int cmd, void *val) const
	Perform control operations on the UPIPE_Stream.
int	get_remote_addr (ACE_UPIPE_Addr &remote_sap) const
	Return the remote address we are connected to.
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Attributes
ACE_Message_Block *	mb_last_
ACE_UPIPE_Addr	remote_addr_
	Address of who we are connected to.
MT_Stream	stream_
int	reference_count_
Friends
class	ACE_UPIPE_Acceptor
class	ACE_UPIPE_Connector

---

Detailed Description

Defines the method that transfer data on a UPIPE.

---

Member Typedef Documentation

typedef ACE_Stream<ACE_SYNCH> ACE_UPIPE_Stream::MT_Stream

typedef ACE_UPIPE_Addr ACE_UPIPE_Stream::PEER_ADDR

---

Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_UPIPE_Stream::ACE_UPIPE_Stream (  void   )

ACE_UPIPE_Stream::~ACE_UPIPE_Stream (  void   )  [virtual]

---

Member Function Documentation

int ACE_UPIPE_Stream::close (  void   )

Shut down the UPIPE and release resources. Reimplemented from ACE_SPIPE.

int ACE_UPIPE_Stream::control (  int  cmd, void *  val )  const

Perform control operations on the UPIPE_Stream. Reimplemented from ACE_IPC_SAP.

void ACE_UPIPE_Stream::dump (  void   )  const

Dump the state of an object. Reimplemented from ACE_SPIPE.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_HANDLE ACE_UPIPE_Stream::get_handle (  void   )  const

Return the underlying I/O handle. Reimplemented from ACE_IPC_SAP.

int ACE_UPIPE_Stream::get_remote_addr (  ACE_UPIPE_Addr &  remote_sap  )  const

Return the remote address we are connected to.

ssize_t ACE_UPIPE_Stream::recv (  char *  buffer, size_t  n, ACE_Time_Value *  timeout = 0 )

Recv a buffer of upto n bytes from the message queue. Returns -1 on error, else number of bytes read.

int ACE_UPIPE_Stream::recv (  ACE_Message_Block *&  mb_p, ACE_Time_Value *  timeout = 0 )

Recv a message from the message queue. Returns -1 on error, else 0.

ssize_t ACE_UPIPE_Stream::recv_n (  char *  buffer, size_t  n, ACE_Time_Value *  timeout = 0 )

Recv a buffer of exactly <n> bytes from the message queue. Returns -1 on error, else the number of bytes read.

ssize_t ACE_UPIPE_Stream::send (  const char *  buffer, size_t  n, ACE_Time_Value *  timeout = 0 )

Send a buffer of n bytes through the message queue. Returns -1 on error, else number of bytes sent.

int ACE_UPIPE_Stream::send (  ACE_Message_Block *  mb_p, ACE_Time_Value *  timeout = 0 )

Send a message through the message queue. Returns -1 on error, else 0.

ssize_t ACE_UPIPE_Stream::send_n (  const char *  buffer, size_t  n, ACE_Time_Value *  timeout = 0 )

Send a buffer of exactly n bytes to the message queue. Returns -1 on error, else number of bytes written (which should == n).

---

Friends And Related Function Documentation

friend class ACE_UPIPE_Acceptor [friend]

friend class ACE_UPIPE_Connector [friend]

---

Member Data Documentation

ACE_UPIPE_Stream::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks. Reimplemented from ACE_SPIPE.

ACE_Message_Block* ACE_UPIPE_Stream::mb_last_ [private]

To hold the last ACE_Message_Block read out of the stream. Thus allowing subsequent reads from one ACE_Message_Block

int ACE_UPIPE_Stream::reference_count_ [private]

Keep track of whether the sender and receiver have both shut down.

ACE_UPIPE_Addr ACE_UPIPE_Stream::remote_addr_ [private]

Address of who we are connected to.

MT_Stream ACE_UPIPE_Stream::stream_ [private]

Stream component used by the UPIPE_Acceptor and UPIPE_Connector to link together two UPIPE_Streams.

---

The documentation for this class was generated from the following files:

• UPIPE_Stream.h
• UPIPE_Stream.cpp
• UPIPE_Stream.inl

---
