ACE_Thread_Adapter Class Reference

Converts a C++ function into a function that can be called from a thread creation routine (e.g., pthread_create() or _beginthreadex()) that expects an extern "C" entry point. This class also makes it possible to transparently provide hooks to register a thread with an ACE_Thread_Manager. More...

#include <Thread_Adapter.h>

Inheritance diagram for ACE_Thread_Adapter:

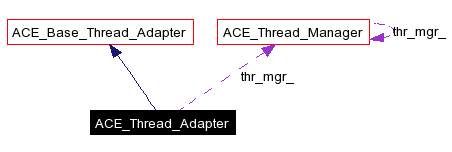

[legend]Collaboration diagram for ACE_Thread_Adapter:

[legend]List of all members.

Public Member Functions
	ACE_Thread_Adapter (ACE_THR_FUNC user_func, void *arg, ACE_THR_C_FUNC entry_point=(ACE_THR_C_FUNC) ACE_THREAD_ADAPTER_NAME, ACE_Thread_Manager *thr_mgr=0, ACE_Thread_Descriptor *td=0)
	Constructor.
virtual ACE_THR_FUNC_RETURN	invoke (void)
ACE_Thread_Manager *	thr_mgr (void)
	Accessor for the optional <thread_manager>.
Protected Member Functions
	~ACE_Thread_Adapter (void)
	Ensure that this object must be allocated on the heap.
Private Member Functions
virtual ACE_THR_FUNC_RETURN	invoke_i (void)
Private Attributes
ACE_Thread_Manager *	thr_mgr_
	Optional thread manager.

---

Detailed Description

Converts a C++ function into a function that can be called from a thread creation routine (e.g., pthread_create() or _beginthreadex()) that expects an extern "C" entry point. This class also makes it possible to transparently provide hooks to register a thread with an ACE_Thread_Manager.

This class is used in ACE_OS::thr_create(). In general, the thread that creates an object of this class is different from the thread that calls invoke() on this object. Therefore, the invoke() method is responsible for deleting itself.

---

Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Thread_Adapter::ACE_Thread_Adapter (  ACE_THR_FUNC  user_func, void *  arg, ACE_THR_C_FUNC  entry_point = (ACE_THR_C_FUNC) ACE_THREAD_ADAPTER_NAME, ACE_Thread_Manager *  thr_mgr = 0, ACE_Thread_Descriptor *  td = 0 )

Constructor.

ACE_Thread_Adapter::~ACE_Thread_Adapter (  void   )  [protected]

Ensure that this object must be allocated on the heap.

---

Member Function Documentation

ACE_THR_FUNC_RETURN ACE_Thread_Adapter::invoke (  void   )  [virtual]

Execute the <user_func_> with the <arg>. This function deletes <this>, thereby rendering the object useless after the call returns. Implements ACE_Base_Thread_Adapter.

ACE_THR_FUNC_RETURN ACE_Thread_Adapter::invoke_i (  void   )  [private, virtual]

Called by invoke, mainly here to separate the SEH stuff because SEH on Win32 doesn't compile with local vars with destructors.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_Thread_Manager * ACE_Thread_Adapter::thr_mgr (  void   )

Accessor for the optional <thread_manager>.

---

Member Data Documentation

ACE_Thread_Manager* ACE_Thread_Adapter::thr_mgr_ [private]

Optional thread manager.

---

The documentation for this class was generated from the following files:

• Thread_Adapter.h
• Thread_Adapter.cpp
• Thread_Adapter.inl

---
