ACE_Task_Base Class Reference

Direct base class for the ACE_Task template. More...

#include <Task.h>

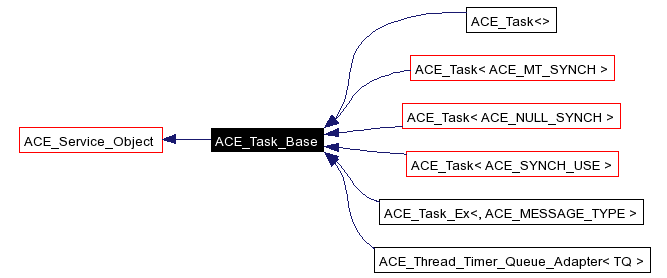

Inheritance diagram for ACE_Task_Base:

Inheritance graph
[legend]

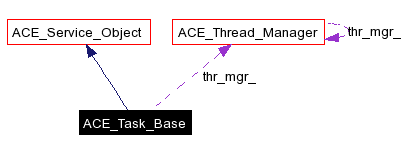

Collaboration diagram for ACE_Task_Base:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Task_Base (ACE_Thread_Manager *=0)
 Constructor.
virtual ~ACE_Task_Base (void)
 Destructor.
virtual int open (void *args=0)
virtual int close (u_long flags=0)
virtual int module_closed (void)
virtual int put (ACE_Message_Block *, ACE_Time_Value *=0)
virtual int svc (void)
 Run by a daemon thread to handle deferred processing.
virtual int activate (long flags=THR_NEW_LWP|THR_JOINABLE|THR_INHERIT_SCHED, int n_threads=1, int force_active=0, long priority=ACE_DEFAULT_THREAD_PRIORITY, int grp_id=-1, ACE_Task_Base *task=0, ACE_hthread_t thread_handles[]=0, void *stack[]=0, size_t stack_size[]=0, ACE_thread_t thread_ids[]=0)
virtual int wait (void)
virtual int suspend (void)
 Suspend a task.
virtual int resume (void)
 Resume a suspended task.
int grp_id (void) const
 Get the current group id.
void grp_id (int)
 Set the current group id.
ACE_Thread_Managerthr_mgr (void) const
 Get the thread manager associated with this Task.
void thr_mgr (ACE_Thread_Manager *)
 Set the thread manager associated with this Task.
int is_reader (void) const
 True if queue is a reader, else false.
int is_writer (void) const
 True if queue is a writer, else false.
size_t thr_count (void) const
void thr_count_dec (void)

Static Public Member Functions

ACE_THR_FUNC_RETURN svc_run (void *)
 Routine that runs the service routine as a daemon thread.
void cleanup (void *object, void *params)

Public Attributes

size_t thr_count_
ACE_Thread_Managerthr_mgr_
 Multi-threading manager.
u_long flags_
 ACE_Task flags.
int grp_id_
 This maintains the group id of the Task.

Private Member Functions

ACE_Task_Baseoperator= (const ACE_Task_Base &)
 ACE_Task_Base (const ACE_Task_Base &)

Detailed Description

Direct base class for the ACE_Task template.

This class factors out the non-template code in order to reduce template bloat, as well as to make it possible for the <ace_thread_manager> to store <ace_task_base> *'s polymorphically.


Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Task_Base::ACE_Task_Base ACE_Thread_Manager = 0  )


Constructor.

ACE_Task_Base::~ACE_Task_Base void   )  [virtual]


Destructor.

ACE_Task_Base::ACE_Task_Base const ACE_Task_Base  )  [private]



Member Function Documentation

int ACE_Task_Base::activate long  flags = THR_NEW_LWP|THR_JOINABLE|THR_INHERIT_SCHED,
int  n_threads = 1,
int  force_active = 0,
long  priority = ACE_DEFAULT_THREAD_PRIORITY,
int  grp_id = -1,
ACE_Task_Base task = 0,
ACE_hthread_t  thread_handles[] = 0,
void *  stack[] = 0,
size_t  stack_size[] = 0,
ACE_thread_t  thread_ids[] = 0
[virtual]


Turn the task into an active object, i.e., having <n_threads> of control, all running at the <priority> level (see below) with the same <grp_id>, all of which invoke <Task::svc>. Returns -1 if failure occurs, returns 1 if Task is already an active object and <force_active> is false (i.e., do *not* create a new thread in this case), and returns 0 if Task was not already an active object and a thread is created successfully or thread is an active object and <force_active> is true. Note that if <force_active> is true and there are already threads spawned in this <task>, the <grp_id> parameter is ignored and the <grp_id> of any newly activated thread(s) will inherit the existing <grp_id> of the existing thread(s) in the <task>.

The <{flags}> are a bitwise-OR of the following: = BEGIN<INDENT> THR_CANCEL_DISABLE, THR_CANCEL_ENABLE, THR_CANCEL_DEFERRED, THR_CANCEL_ASYNCHRONOUS, THR_BOUND, THR_NEW_LWP, THR_DETACHED, THR_SUSPENDED, THR_DAEMON, THR_JOINABLE, THR_SCHED_FIFO, THR_SCHED_RR, THR_SCHED_DEFAULT, THR_EXPLICIT_SCHED, THR_SCOPE_SYSTEM, THR_SCOPE_PROCESS = END<INDENT> If THR_SCHED_INHERIT is not desirable, applications should specifically pass in THR_EXPLICIT_SCHED.

By default, or if <{priority}> is set to ACE_DEFAULT_THREAD_PRIORITY, an "appropriate" priority value for the given scheduling policy (specified in <{flags}>, e.g., <thr_sched_default>) is used. This value is calculated dynamically, and is the median value between the minimum and maximum priority values for the given policy. If an explicit value is given, it is used. Note that actual priority values are EXTREMEMLY implementation-dependent, and are probably best avoided.

If <thread_handles> != 0 it is assumed to be an array of <n> thread_handles that will be assigned the values of the thread handles being spawned. Returns -1 on failure (<errno> will explain...), otherwise returns the group id of the threads.

Assigning <task> allows you to associate the newly spawned threads with an instance of ACE_Task_Base. If <task> == 0, then the new threads are associated automatically with <this> ACE_Task_Base. Setting the <task> argument to value other than <this> makes the thread manipulating methods, such as wait(), suspend(), resume(), useless. Threads spawned with user specified <task> value must therefore be manipulated thru ACE_Thread_Manager directly.

If <stack> != 0 it is assumed to be an array of <n> pointers to the base of the stacks to use for the threads being spawned. Likewise, if <stack_size> != 0 it is assumed to be an array of <n> values indicating how big each of the corresponding <stack>s are.

Reimplemented in ACE_Thread_Timer_Queue_Adapter< TQ >.

void ACE_Task_Base::cleanup void *  object,
void *  params
[static]


Cleanup hook that is called when a thread exits to gracefully shutdown an ACE_Task.

int ACE_Task_Base::close u_long  flags = 0  )  [virtual]


Hook called from ACE_Thread_Exit when during thread exit and from the default implementation of <module_closed>. In general, this method shouldn't be called directly by an application, particularly if the <task> is running as an Active Object. Instead, a special message should be passed into the <task> via the <put> method defined below, and the <svc> method should interpret this as a flag to shut down the <task>.

Reimplemented in ACE_Stream_Head<>, ACE_Stream_Tail<>, ACE_Thru_Task<>, ACE_Svc_Handler<, >, and ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

ACE_INLINE void ACE_Task_Base::grp_id int   )


Set the current group id.

ACE_INLINE int ACE_Task_Base::grp_id void   )  const


Get the current group id.

ACE_INLINE int ACE_Task_Base::is_reader void   )  const


True if queue is a reader, else false.

ACE_INLINE int ACE_Task_Base::is_writer void   )  const


True if queue is a writer, else false.

int ACE_Task_Base::module_closed void   )  [virtual]


Hook called during <ACE_Module::close>. The default implementation calls forwards the call to close(1). Please notice the changed value of the default argument of <close>. This allows tasks to differ between the call has been originated from <ace_thread_exit> or from <module_closed>. Be aware that close(0) will be also called when a thread associated with the ACE_Task instance exits.

int ACE_Task_Base::open void *  args = 0  )  [virtual]


Hook called to initialize a task and prepare it for execution. <args> can be used to pass arbitrary information into <open>.

Reimplemented in ACE_NT_Service, ACE_Stream_Head<>, ACE_Stream_Tail<>, ACE_Thru_Task<>, ACE_Svc_Handler<, >, and ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

ACE_Task_Base& ACE_Task_Base::operator= const ACE_Task_Base  )  [private]


int ACE_Task_Base::put ACE_Message_Block ,
ACE_Time_Value = 0
[virtual]


A hook method that can be used to pass a message to a task, where it can be processed immediately or queued for subsequent processing in the <svc> hook method.

Reimplemented in ACE_Stream_Head<>, ACE_Stream_Tail<>, ACE_Thru_Task<>, and ACE_Buffered_Svc_Handler<, >.

int ACE_Task_Base::resume void   )  [virtual]


Resume a suspended task.

Reimplemented from ACE_Service_Object.

int ACE_Task_Base::suspend void   )  [virtual]


Suspend a task.

Reimplemented from ACE_Service_Object.

int ACE_Task_Base::svc void   )  [virtual]


Run by a daemon thread to handle deferred processing.

Reimplemented in ACE_Asynch_Pseudo_Task, ACE_NT_Service, ACE_Proactor_Timer_Handler, ACE_Stream_Head<>, ACE_Stream_Tail<>, ACE_Thru_Task<>, and ACE_Thread_Timer_Queue_Adapter< TQ >.

ACE_THR_FUNC_RETURN ACE_Task_Base::svc_run void *   )  [static]


Routine that runs the service routine as a daemon thread.

ACE_INLINE size_t ACE_Task_Base::thr_count void   )  const


Returns the number of threads currently running within a task. If we're a passive object this value is 0, else it's greater than 0.

ACE_INLINE void ACE_Task_Base::thr_count_dec void   )


Atomically decrement the thread count by 1. This should only be called by the ACE_Thread_Exit class destructor.

ACE_INLINE void ACE_Task_Base::thr_mgr ACE_Thread_Manager  )


Set the thread manager associated with this Task.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_Thread_Manager * ACE_Task_Base::thr_mgr void   )  const


Get the thread manager associated with this Task.

int ACE_Task_Base::wait void   )  [virtual]


Block until there are no more threads running in this task. This method will not wait for either detached or daemon threads; the threads must have been spawned with the THR_JOINABLE flag. Upon successful completion, the threads have been joined, so further attempts to join with any of the waited-for threads will fail.

Return values:
0 Success.
-1 Failure (consult errno for further information).


Member Data Documentation

u_long ACE_Task_Base::flags_


ACE_Task flags.

int ACE_Task_Base::grp_id_


This maintains the group id of the Task.

size_t ACE_Task_Base::thr_count_


Count of the number of threads running within the task. If this value is greater than 0 then we're an active object and the value of <thr_count_> is the number of active threads at this instant. If the value == 0, then we're a passive object.

ACE_Thread_Manager* ACE_Task_Base::thr_mgr_


Multi-threading manager.


The documentation for this class was generated from the following files:
