ACE_Select_Reactor_Notify Class Reference

Unblock the ACE_Select_Reactor from its event loop. More...

#include <Select_Reactor_Base.h>

Inheritance diagram for ACE_Select_Reactor_Notify:

Inheritance graph
[legend]

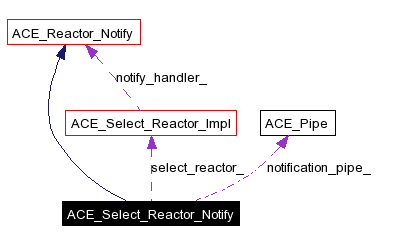

Collaboration diagram for ACE_Select_Reactor_Notify:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Select_Reactor_Notify (void)
 Constructor.
virtual ~ACE_Select_Reactor_Notify (void)
 Destructor.
virtual int open (ACE_Reactor_Impl *, ACE_Timer_Queue *=0, int disable_notify_pipe=0)
 Initialize.
virtual int close (void)
 Destroy.
virtual int notify (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *timeout=0)
virtual int dispatch_notifications (int &number_of_active_handles, ACE_Handle_Set &rd_mask)
virtual ACE_HANDLE notify_handle (void)
virtual int dispatch_notify (ACE_Notification_Buffer &buffer)
virtual int read_notify_pipe (ACE_HANDLE handle, ACE_Notification_Buffer &buffer)
virtual int is_dispatchable (ACE_Notification_Buffer &buffer)
 Verify whether the buffer has dispatchable info or not.
virtual int handle_input (ACE_HANDLE handle)
virtual void max_notify_iterations (int)
virtual int max_notify_iterations (void)
virtual int purge_pending_notifications (ACE_Event_Handler *, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)
virtual void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Attributes

ACE_Select_Reactor_Implselect_reactor_
ACE_Pipe notification_pipe_
int max_notify_iterations_

Detailed Description

Unblock the ACE_Select_Reactor from its event loop.

This implementation is necessary for cases where the ACE_Select_Reactor is run in a multi-threaded program. In this case, we need to be able to unblock select or poll when updates occur other than in the main ACE_Select_Reactor thread. To do this, we signal an auto-reset event the ACE_Select_Reactor is listening on. If an ACE_Event_Handler and ACE_Select_Reactor_Mask is passed to notify, the appropriate handle_* method is dispatched in the context of the ACE_Select_Reactor thread.


Constructor & Destructor Documentation

ACE_Select_Reactor_Notify::ACE_Select_Reactor_Notify void   )


Constructor.

ACE_Select_Reactor_Notify::~ACE_Select_Reactor_Notify void   )  [virtual]


Destructor.


Member Function Documentation

int ACE_Select_Reactor_Notify::close void   )  [virtual]


Destroy.

Implements ACE_Reactor_Notify.

int ACE_Select_Reactor_Notify::dispatch_notifications int &  number_of_active_handles,
ACE_Handle_Set rd_mask
[virtual]


Handles pending threads (if any) that are waiting to unblock the ACE_Select_Reactor.

Implements ACE_Reactor_Notify.

int ACE_Select_Reactor_Notify::dispatch_notify ACE_Notification_Buffer buffer  )  [virtual]


Handle one of the notify call on the handle. This could be because of a thread trying to unblock the <reactor_impl>

Implements ACE_Reactor_Notify.

void ACE_Select_Reactor_Notify::dump void   )  const [virtual]


Dump the state of an object.

Implements ACE_Reactor_Notify.

int ACE_Select_Reactor_Notify::handle_input ACE_HANDLE  handle  )  [virtual]


Called back by the <ace_select_reactor> when a thread wants to unblock us.

Reimplemented from ACE_Event_Handler.

int ACE_Select_Reactor_Notify::is_dispatchable ACE_Notification_Buffer buffer  )  [virtual]


Verify whether the buffer has dispatchable info or not.

Implements ACE_Reactor_Notify.

int ACE_Select_Reactor_Notify::max_notify_iterations void   )  [virtual]


Get the maximum number of times that the <ACE_Select_Reactor_Notify::handle_input> method will iterate and dispatch the <ace_event_handlers> that are passed in via the notify pipe before breaking out of its <recv> loop.

Implements ACE_Reactor_Notify.

void ACE_Select_Reactor_Notify::max_notify_iterations int   )  [virtual]


Set the maximum number of times that the <ACE_Select_Reactor_Notify::handle_input> method will iterate and dispatch the <ace_event_handlers> that are passed in via the notify pipe before breaking out of its <recv> loop. By default, this is set to -1, which means "iterate until the pipe is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead.

Implements ACE_Reactor_Notify.

int ACE_Select_Reactor_Notify::notify ACE_Event_Handler = 0,
ACE_Reactor_Mask  = ACE_Event_Handler::EXCEPT_MASK,
ACE_Time_Value timeout = 0
[virtual]


Called by a thread when it wants to unblock the ACE_Select_Reactor. This wakeups the ACE_Select_Reactor if currently blocked in select/poll. Pass over both the Event_Handler *and* the mask to allow the caller to dictate which Event_Handler method the ACE_Select_Reactor will invoke. The ACE_Time_Value indicates how long to blocking trying to notify the ACE_Select_Reactor. If timeout == 0, the caller will block until action is possible, else will wait until the relative time specified in *timeout elapses).

Implements ACE_Reactor_Notify.

ACE_HANDLE ACE_Select_Reactor_Notify::notify_handle void   )  [virtual]


Returns the ACE_HANDLE of the notify pipe on which the reactor is listening for notifications so that other threads can unblock the Select_Reactor

Implements ACE_Reactor_Notify.

int ACE_Select_Reactor_Notify::open ACE_Reactor_Impl ,
ACE_Timer_Queue = 0,
int  disable_notify_pipe = 0
[virtual]


Initialize.

Implements ACE_Reactor_Notify.

int ACE_Select_Reactor_Notify::purge_pending_notifications ACE_Event_Handler ,
ACE_Reactor_Mask  = ACE_Event_Handler::ALL_EVENTS_MASK
[virtual]


Purge any notifications pending in this reactor for the specified <ace_event_handler> object. If <eh> == 0, all notifications for all handlers are removed (but not any notifications posted just to wake up the reactor itself). Returns the number of notifications purged. Returns -1 on error.

Implements ACE_Reactor_Notify.

int ACE_Select_Reactor_Notify::read_notify_pipe ACE_HANDLE  handle,
ACE_Notification_Buffer buffer
[virtual]


Read one of the notify call on the <handle> into the <buffer>. This could be because of a thread trying to unblock the <reactor_impl>

Implements ACE_Reactor_Notify.


Member Data Documentation

ACE_Select_Reactor_Notify::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

int ACE_Select_Reactor_Notify::max_notify_iterations_ [protected]


Keeps track of the maximum number of times that the <ACE_Select_Reactor_Notify::handle_input> method will iterate and dispatch the <ace_event_handlers> that are passed in via the notify pipe before breaking out of its <recv> loop. By default, this is set to -1, which means "iterate until the pipe is empty."

ACE_Pipe ACE_Select_Reactor_Notify::notification_pipe_ [protected]


Contains the <ace_handle> the <ace_select_reactor> is listening on, as well as the <ace_handle> that threads wanting the attention of the <ace_select_reactor> will write to.

ACE_Select_Reactor_Impl* ACE_Select_Reactor_Notify::select_reactor_ [protected]


Keep a back pointer to the <ace_select_reactor>. If this value if NULL then the <ace_select_reactor> has been initialized with <disable_notify_pipe>.


The documentation for this class was generated from the following files:
