ACE_Select_Reactor_Handler_Repository Class Reference

Used to map <ace_handle>s onto the appropriate <ace_event_handler> *. More...

#include <Select_Reactor_Base.h>

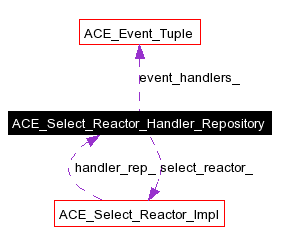

Collaboration diagram for ACE_Select_Reactor_Handler_Repository:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Select_Reactor_Handler_Repository (ACE_Select_Reactor_Impl &)
 Default "do-nothing" constructor.
 ~ACE_Select_Reactor_Handler_Repository (void)
 Destructor.
int open (size_t size)
 Initialize a repository of the appropriate <size>.
int close (void)
 Close down the repository.
ACE_Event_Handlerfind (ACE_HANDLE handle, size_t *index_p=0)
int bind (ACE_HANDLE, ACE_Event_Handler *, ACE_Reactor_Mask)
int unbind (ACE_HANDLE, ACE_Reactor_Mask mask)
 Remove the binding of <ace_handle> in accordance with the <mask>.
int unbind_all (void)
 Remove all the <ACE_HANDLE, ACE_Event_Handler> tuples.
int invalid_handle (ACE_HANDLE handle)
int handle_in_range (ACE_HANDLE handle)
size_t size (void) const
 Returns the current table size.
size_t max_handlep1 (void)
 Maximum ACE_HANDLE value, plus 1.
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Attributes

ACE_Select_Reactor_Implselect_reactor_
 Reference to our <select_reactor>.
ssize_t max_size_
 Maximum number of handles.
int max_handlep1_
ACE_Event_Tupleevent_handlers_

Friends

class ACE_Select_Reactor_Handler_Repository_Iterator

Detailed Description

Used to map <ace_handle>s onto the appropriate <ace_event_handler> *.

This class is necessary to shield differences between UNIX and Win32. In UNIX, <ace_handle> is an int, whereas in Win32 it's a void *. This class hides all these details from the bulk of the <ace_select_reactor> code. All of these methods are called with the main <select_reactor> token lock held.


Constructor & Destructor Documentation

ACE_Select_Reactor_Handler_Repository::ACE_Select_Reactor_Handler_Repository ACE_Select_Reactor_Impl  )


Default "do-nothing" constructor.

ACE_INLINE ACE_Select_Reactor_Handler_Repository::~ACE_Select_Reactor_Handler_Repository void   )


Destructor.


Member Function Documentation

int ACE_Select_Reactor_Handler_Repository::bind ACE_HANDLE  ,
ACE_Event_Handler ,
ACE_Reactor_Mask


Bind the <ACE_Event_Handler *> to the <ace_handle> with the appropriate <ace_reactor_mask> settings.

int ACE_Select_Reactor_Handler_Repository::close void   )


Close down the repository.

void ACE_Select_Reactor_Handler_Repository::dump void   )  const


Dump the state of an object.

ACE_Event_Handler * ACE_Select_Reactor_Handler_Repository::find ACE_HANDLE  handle,
size_t *  index_p = 0


Return the <ACE_Event_Handler *> associated with <ace_handle>. If <index_p> is non-0, then return the index location of the <handle>, if found.

int ACE_Select_Reactor_Handler_Repository::handle_in_range ACE_HANDLE  handle  )


int ACE_Select_Reactor_Handler_Repository::invalid_handle ACE_HANDLE  handle  )


size_t ACE_Select_Reactor_Handler_Repository::max_handlep1 void   )


Maximum ACE_HANDLE value, plus 1.

int ACE_Select_Reactor_Handler_Repository::open size_t  size  )


Initialize a repository of the appropriate <size>.

On Unix platforms, the size parameter should be as large as the maximum number of file descriptors allowed for a given process. This is necessary since a file descriptor is used to directly index the array of event handlers maintained by the Reactor's handler repository. Direct indexing is used for efficiency reasons.

ACE_INLINE size_t ACE_Select_Reactor_Handler_Repository::size void   )  const


Returns the current table size.

int ACE_Select_Reactor_Handler_Repository::unbind ACE_HANDLE  ,
ACE_Reactor_Mask  mask


Remove the binding of <ace_handle> in accordance with the <mask>.

int ACE_Select_Reactor_Handler_Repository::unbind_all void   )


Remove all the <ACE_HANDLE, ACE_Event_Handler> tuples.


Friends And Related Function Documentation

friend class ACE_Select_Reactor_Handler_Repository_Iterator [friend]



Member Data Documentation

ACE_Select_Reactor_Handler_Repository::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

ACE_Event_Tuple* ACE_Select_Reactor_Handler_Repository::event_handlers_ [private]


The NT version implements this via a dynamically allocated array of <ACE_Event_Tuple *>. Since NT implements ACE_HANDLE as a void * we can't directly index into this array. Therefore, we just do a linear search (for now). Next, we'll modify things to use hashing or something faster...

int ACE_Select_Reactor_Handler_Repository::max_handlep1_ [private]


The highest currently active handle, plus 1 (ranges between 0 and <max_size_>.

ssize_t ACE_Select_Reactor_Handler_Repository::max_size_ [private]


Maximum number of handles.

ACE_Select_Reactor_Impl& ACE_Select_Reactor_Handler_Repository::select_reactor_ [private]


Reference to our <select_reactor>.


The documentation for this class was generated from the following files:
