WFMO_Reactor.h File Reference

#include "ace/config-all.h"
#include "ace/Signal.h"
#include "ace/Timer_Queue.h"
#include "ace/Event_Handler.h"
#include "ace/Auto_Event.h"
#include "ace/Manual_Event.h"
#include "ace/Condition_Thread_Mutex.h"
#include "ace/Lock_Adapter_T.h"
#include "ace/Reactor_Impl.h"
#include "ace/Message_Queue.h"
#include "ace/Process_Mutex.h"
#include "ace/WFMO_Reactor.inl"

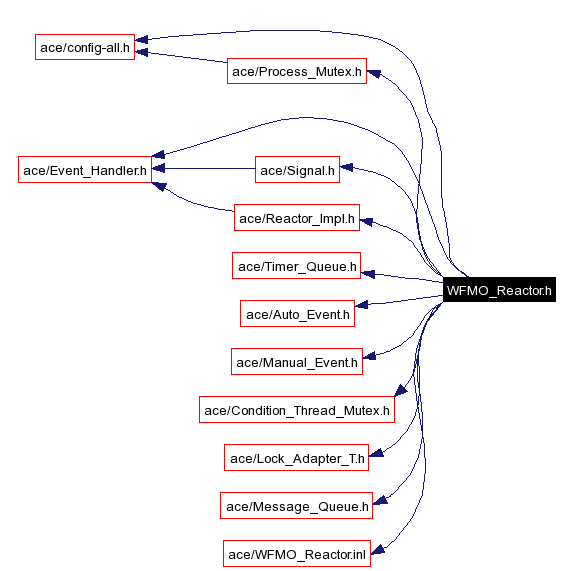

Include dependency graph for WFMO_Reactor.h:

Include dependency graph

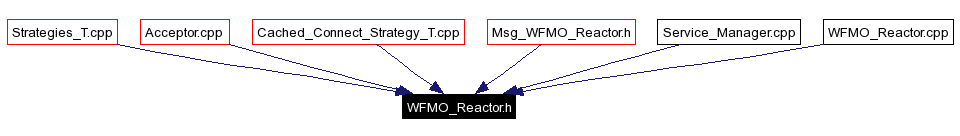

This graph shows which files directly or indirectly include this file:

Included by dependency graph

Classes

struct  _WSANETWORKEVENTS
class  ACE_Wakeup_All_Threads_Handler
 This is a helper class whose sole purpose is to handle events on <ACE_WFMO_Reactor->wakeup_all_threads_>. More...
class  ACE_WFMO_Reactor_Handler_Repository
 Used to map <ace_handle>s onto the appropriate <ace_event_handler> * and other information. More...
class  ACE_WFMO_Reactor_Handler_Repository::Common_Info
 This struct contains the necessary information for every <event_handler> entry. The reason the event is not in this structure is because we need to pass an event array into WaitForMultipleObjects and therefore keeping the events seperate makes sense. More...
class  ACE_WFMO_Reactor_Handler_Repository::Current_Info
 This structure inherits from the common structure to add information for current entries. More...
class  ACE_WFMO_Reactor_Handler_Repository::To_Be_Added_Info
 This structure inherits from the common structure to add information for <to_be_added> entries. More...
class  ACE_WFMO_Reactor_Handler_Repository::Suspended_Info
 This structure inherits from the common structure to add information for suspended entries. More...
class  ACE_WFMO_Reactor_Notify
 Unblock the <ace_wfmo_reactor> from its event loop, passing it an optional <ace_event_handler> to dispatch. More...
class  ACE_WFMO_Reactor
 An object oriented event demultiplexor and event handler. ACE_WFMO_Reactor is a Windows-only implementation of the ACE_Reactor interface that uses the WaitForMultipleObjects() event demultiplexer. More...

Defines

#define FD_READ_BIT   0
#define FD_WRITE_BIT   1
#define FD_OOB_BIT   2
#define FD_ACCEPT_BIT   3
#define FD_CONNECT_BIT   4
#define FD_CLOSE_BIT   5
#define FD_QOS_BIT   6
#define FD_GROUP_QOS_BIT   7
#define FD_QOS   (1 << FD_QOS_BIT)
#define FD_GROUP_QOS   (1 << FD_GROUP_QOS_BIT)
#define FD_MAX_EVENTS   8
#define FD_ALL_EVENTS   ((1 << FD_MAX_EVENTS) - 1)
#define WSAEVENT   HANDLE

Typedefs

typedef _WSANETWORKEVENTS WSANETWORKEVENTS
typedef _WSANETWORKEVENTSLPWSANETWORKEVENTS

Functions

int WSAEventSelect (SOCKET s, WSAEVENT hEventObject, long lNetworkEvents)
int WSAEnumNetworkEvents (SOCKET s, WSAEVENT hEventObject, LPWSANETWORKEVENTS lpNetworkEvents)

Detailed Description

Id
WFMO_Reactor.h,v 4.72 2005/10/28 23:55:10 ossama Exp

Author:
Irfan Pyarali <irfan@cs.wustl.edu>

Tim Harrison <harrison@cs.wustl.edu>

Doug Schmidt <schmidt@cs.wustl.edu>


Define Documentation

#define FD_ACCEPT_BIT   3


#define FD_ALL_EVENTS   ((1 << FD_MAX_EVENTS) - 1)


#define FD_CLOSE_BIT   5


#define FD_CONNECT_BIT   4


#define FD_GROUP_QOS   (1 << FD_GROUP_QOS_BIT)


#define FD_GROUP_QOS_BIT   7


#define FD_MAX_EVENTS   8


#define FD_OOB_BIT   2


#define FD_QOS   (1 << FD_QOS_BIT)


#define FD_QOS_BIT   6


#define FD_READ_BIT   0


#define FD_WRITE_BIT   1


#define WSAEVENT   HANDLE



Typedef Documentation

typedef struct _WSANETWORKEVENTS * LPWSANETWORKEVENTS


typedef struct _WSANETWORKEVENTS WSANETWORKEVENTS



Function Documentation

int WSAEnumNetworkEvents SOCKET  s,
WSAEVENT  hEventObject,
LPWSANETWORKEVENTS  lpNetworkEvents


int WSAEventSelect SOCKET  s,
WSAEVENT  hEventObject,
long  lNetworkEvents



Generated on Tue Dec 20 23:14:26 2005 for ACE by  doxygen 1.3.9.1
