TSS_Cleanup_Instance Class Reference

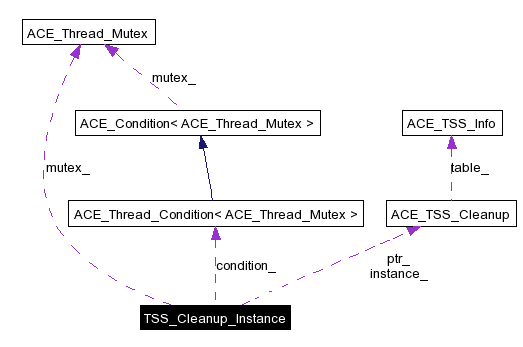

Collaboration diagram for TSS_Cleanup_Instance:

[legend]List of all members.

Public Types
enum	Purpose { CREATE, USE, DESTROY }
Public Member Functions
	TSS_Cleanup_Instance (Purpose purpose=USE)
	~TSS_Cleanup_Instance ()
bool	valid ()
ACE_TSS_Cleanup *	operator-> ()
Private Types
enum	{ FLAG_DELETING = 1, FLAG_VALID_CHECKED = 2 }
Private Member Functions
ACE_TSS_Cleanup *	operator * ()
Private Attributes
ACE_TSS_Cleanup *	ptr_
unsigned short	flags_
Static Private Attributes
unsigned int	reference_count_ = 0
ACE_TSS_Cleanup *	instance_ = 0
ACE_Thread_Mutex *	mutex_ = 0
ACE_Thread_Condition< ACE_Thread_Mutex > *	condition_ = 0

---

Detailed Description

class to manage an instance pointer to ACE_TSS_Cleanup. Note: that the double checked locking pattern doesn't allow safe deletion. Callers who wish to access the singleton ACE_TSS_Cleanup must do so by instantiating a TSS_Cleanup_Instance, calling the valid method to be sure the ACE_TSS_Cleanup is available, then using the TSS_Cleanup_Instance as a pointer to the instance. Construction argument to the TSS_Cleanup_Instance determines how it is to be used: CREATE means allow this call to create an ACE_TSS_Cleanup if necessary. USE means use the existing ACE_TSS_Cleanup, but do not create a new one. DESTROY means provide exclusive access to the ACE_TSS_Cleanup, then delete it when the TSS_Cleanup_Instance goes out of scope.

---

Member Enumeration Documentation

anonymous enum [private]

Enumeration values: FLAG_DELETING  FLAG_VALID_CHECKED

enum TSS_Cleanup_Instance::Purpose

Enumeration values: CREATE  USE  DESTROY

---

Constructor & Destructor Documentation

TSS_Cleanup_Instance::TSS_Cleanup_Instance (  Purpose  purpose = USE  )

TSS_Cleanup_Instance::~TSS_Cleanup_Instance (   )

---

Member Function Documentation

ACE_TSS_Cleanup * TSS_Cleanup_Instance::operator * (   )  [private]

ACE_TSS_Cleanup * TSS_Cleanup_Instance::operator-> (   )

bool TSS_Cleanup_Instance::valid (   )

---

Member Data Documentation

ACE_Thread_Condition< ACE_Thread_Mutex > * TSS_Cleanup_Instance::condition_ = 0 [static, private]

unsigned short TSS_Cleanup_Instance::flags_ [private]

ACE_TSS_Cleanup * TSS_Cleanup_Instance::instance_ = 0 [static, private]

ACE_Thread_Mutex * TSS_Cleanup_Instance::mutex_ = 0 [static, private]

ACE_TSS_Cleanup* TSS_Cleanup_Instance::ptr_ [private]

unsigned int TSS_Cleanup_Instance::reference_count_ = 0 [static, private]

---

The documentation for this class was generated from the following file:

• OS_NS_Thread.cpp

---
