ACE_SOCK_Stream
object.
More...
#include <SOCK_Connector.h>

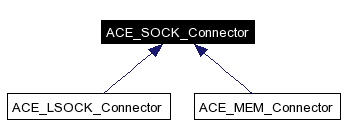

Inheritance diagram for ACE_SOCK_Connector:
Public Types | |
typedef ACE_INET_Addr | PEER_ADDR |
typedef ACE_SOCK_Stream | PEER_STREAM |
Public Member Functions | |
ACE_SOCK_Connector (void) | |
Default constructor. | |
ACE_SOCK_Connector (ACE_SOCK_Stream &new_stream, const ACE_Addr &remote_sap, const ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, int reuse_addr=0, int flags=0, int perms=0, int protocol=0) | |
ACE_SOCK_Connector (ACE_SOCK_Stream &new_stream, const ACE_Addr &remote_sap, ACE_QoS_Params qos_params, const ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, ACE_Protocol_Info *protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0, int perms=0) | |
int | connect (ACE_SOCK_Stream &new_stream, const ACE_Addr &remote_sap, const ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, int reuse_addr=0, int flags=0, int perms=0, int protocol=0) |
int | connect (ACE_SOCK_Stream &new_stream, const ACE_Addr &remote_sap, ACE_QoS_Params qos_params, const ACE_Time_Value *timeout=0, const ACE_Addr &local_sap=ACE_Addr::sap_any, ACE_Protocol_Info *protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0, int perms=0) |
~ACE_SOCK_Connector (void) | |
Default dtor. | |
int | complete (ACE_SOCK_Stream &new_stream, ACE_Addr *remote_sap=0, const ACE_Time_Value *timeout=0) |
int | reset_new_handle (ACE_HANDLE handle) |
Resets any event associations on this handle. | |
void | dump (void) const |
Dump the state of an object. | |
Public Attributes | |
ACE_ALLOC_HOOK_DECLARE | |
Declare the dynamic allocation hooks. | |
Protected Member Functions | |
int | shared_open (ACE_SOCK_Stream &new_stream, int protocol_family, int protocol, int reuse_addr) |
int | shared_open (ACE_SOCK_Stream &new_stream, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr) |
int | shared_connect_start (ACE_SOCK_Stream &new_stream, const ACE_Time_Value *timeout, const ACE_Addr &local_sap) |
Perform operations that must be called before <ACE_OS::connect>. | |
int | shared_connect_finish (ACE_SOCK_Stream &new_stream, const ACE_Time_Value *timeout, int result) |
Perform operations that must be called after <ACE_OS::connect>. |
ACE_SOCK_Stream
object.
The ACE_SOCK_Connector
doesn't have a socket of its own, i.e., it simply "borrows" the one from the ACE_SOCK_Stream
that's being connected. The reason for this is that the underlying socket API doesn't use a factory socket to connect data mode sockets. Therefore, there's no need to inherit ACE_SOCK_Connector
from ACE_SOCK
. A nice side-effect of this is that ACE_SOCK_Connector
objects do not store state so they can be used reentrantly in multithreaded programs.
|
Reimplemented in ACE_LSOCK_Connector, and ACE_MEM_Connector. |
|
Reimplemented in ACE_LSOCK_Connector, and ACE_MEM_Connector. |
|
Default constructor.
|
|
Actively connect to a peer, producing a connected
|
|
Actively connect to a peer, producing a connected
|
|
Default dtor.
|
|
Try to complete a nonblocking connection that was begun by a previous call to connect with a {0, 0} ACE_Time_Value timeout.
|
|
Actively connect to a peer, producing a connected
|
|
Actively connect to a peer, producing a connected
|
|
Dump the state of an object.
Reimplemented in ACE_LSOCK_Connector, and ACE_MEM_Connector. |
|
Resets any event associations on this handle.
|
|
Perform operations that must be called after <ACE_OS::connect>.
|
|
Perform operations that must be called before <ACE_OS::connect>.
|
|
Perform operations that ensure the socket is opened using QoS-enabled semantics. |
|
Perform operations that ensure the socket is opened using BSD-style semantics (no QoS). |
|
Declare the dynamic allocation hooks.
Reimplemented in ACE_LSOCK_Connector, and ACE_MEM_Connector. |
