ACE_Pagefile_Memory_Pool Class Reference

Make a memory pool that is based on "anonymous" memory regions allocated from the Win32 page file. More...

#include <Pagefile_Memory_Pool.h>

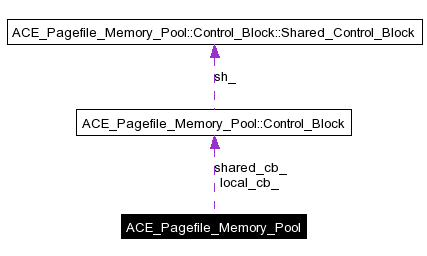

Collaboration diagram for ACE_Pagefile_Memory_Pool:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Pagefile_Memory_Pool_Options OPTIONS

Public Member Functions

 ACE_Pagefile_Memory_Pool (const ACE_TCHAR *backing_store_name=0, const OPTIONS *options=0)
 Initialize the pool.
void * init_acquire (size_t nbytes, size_t &rounded_bytes, int &first_time)
 Ask system for initial chunk of shared memory.
void * acquire (size_t nbytes, size_t &rounded_bytes)
int release (int destroy=1)
 Instruct the memory pool to release all of its resources.
virtual int seh_selector (void *)
int remap (void *addr)
size_t round_to_page_size (size_t nbytes)
 Round up to system page size.
size_t round_to_chunk_size (size_t nbytes)
 Round up to the chunk size required by the operation system.
int sync (ssize_t=-1, int=MS_SYNC)
int sync (void *, size_t, int=MS_SYNC)
int protect (ssize_t=-1, int=PROT_RDWR)
int protect (void *, size_t, int=PROT_RDWR)
virtual void * base_addr (void) const
void dump (void) const

Protected Member Functions

int map (int &firstTime, size_t appendBytes=0)
int unmap (void)
 Release the mapping.

Private Attributes

Control_Block local_cb_
 Description of what our process mapped.
Control_Blockshared_cb_
 Shared memory pool statistics.
ACE_HANDLE object_handle_
 File mapping handle.
size_t page_size_
 System page size.
ACE_TCHAR backing_store_name_ [MAXPATHLEN]
 Name of the backing store where the shared memory pool is kept.

Detailed Description

Make a memory pool that is based on "anonymous" memory regions allocated from the Win32 page file.


Member Typedef Documentation

typedef ACE_Pagefile_Memory_Pool_Options ACE_Pagefile_Memory_Pool::OPTIONS



Constructor & Destructor Documentation

ACE_Pagefile_Memory_Pool::ACE_Pagefile_Memory_Pool const ACE_TCHAR backing_store_name = 0,
const OPTIONS options = 0


Initialize the pool.


Member Function Documentation

void * ACE_Pagefile_Memory_Pool::acquire size_t  nbytes,
size_t &  rounded_bytes


Acquire at least <nbytes> from the memory pool. <rounded_bytes> is the actual number of bytes allocated.

virtual void* ACE_Pagefile_Memory_Pool::base_addr void   )  const [virtual]


Return the base address of this memory pool, 0 if base_addr never changes.

void ACE_Pagefile_Memory_Pool::dump void   )  const [inline]


void * ACE_Pagefile_Memory_Pool::init_acquire size_t  nbytes,
size_t &  rounded_bytes,
int &  first_time


Ask system for initial chunk of shared memory.

int ACE_Pagefile_Memory_Pool::map int &  firstTime,
size_t  appendBytes = 0
[protected]


Map portions or the entire pool into the local virtual address space. To do this, we compute the new file_offset of the backing store and commit the memory.

int ACE_Pagefile_Memory_Pool::protect void *  ,
size_t  ,
int  = PROT_RDWR


int ACE_Pagefile_Memory_Pool::protect ssize_t  = -1,
int  = PROT_RDWR


int ACE_Pagefile_Memory_Pool::release int  destroy = 1  )


Instruct the memory pool to release all of its resources.

int ACE_Pagefile_Memory_Pool::remap void *  addr  )


Try to extend the virtual address space so that <addr> is now covered by the address mapping. The method succeeds and returns 0 if the backing store has adequate memory to cover this address. Otherwise, it returns -1. This method is typically called by an exception handler for a Win32 structured exception when another process has grown the backing store (and its mapping) and our process now incurs a fault because our mapping isn't in range (yet).

size_t ACE_Pagefile_Memory_Pool::round_to_chunk_size size_t  nbytes  )


Round up to the chunk size required by the operation system.

size_t ACE_Pagefile_Memory_Pool::round_to_page_size size_t  nbytes  )


Round up to system page size.

int ACE_Pagefile_Memory_Pool::seh_selector void *   )  [virtual]


Win32 Structural exception selector. The return value decides how to handle memory pool related structural exceptions. Returns 1, 0, or , -1.

int ACE_Pagefile_Memory_Pool::sync void *  ,
size_t  ,
int  = MS_SYNC


int ACE_Pagefile_Memory_Pool::sync ssize_t  = -1,
int  = MS_SYNC


int ACE_Pagefile_Memory_Pool::unmap void   )  [protected]


Release the mapping.


Member Data Documentation

ACE_TCHAR ACE_Pagefile_Memory_Pool::backing_store_name_[MAXPATHLEN] [private]


Name of the backing store where the shared memory pool is kept.

Control_Block ACE_Pagefile_Memory_Pool::local_cb_ [private]


Description of what our process mapped.

ACE_HANDLE ACE_Pagefile_Memory_Pool::object_handle_ [private]


File mapping handle.

size_t ACE_Pagefile_Memory_Pool::page_size_ [private]


System page size.

Control_Block* ACE_Pagefile_Memory_Pool::shared_cb_ [private]


Shared memory pool statistics.


The documentation for this class was generated from the following files:
