ACE_PI_Control_Block::ACE_Name_Node Class Reference

This class supports "named memory regions" within <ace_malloc>. More...

#include <PI_Malloc.h>

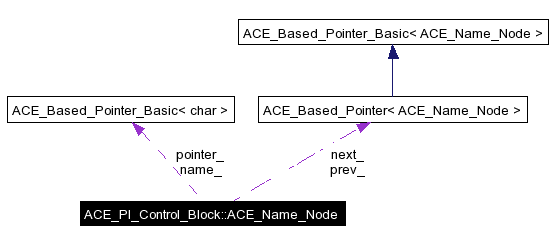

Collaboration diagram for ACE_PI_Control_Block::ACE_Name_Node:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Name_Node (const char *name, char *name_ptr, char *pointer, ACE_Name_Node *head)
 Constructor.
 ACE_Name_Node (const ACE_Name_Node &)
 Copy constructor.
 ACE_Name_Node (void)
 Constructor.
 ~ACE_Name_Node (void)
 Constructor.
const char * name (void) const
 Return a pointer to the name of this node.
void name (const char *)
 Assign a name;.
void dump (void) const
 Dump the state of the object.

Static Public Member Functions

void init_ptr (NAME_NODE_PTR *ptr, ACE_Name_Node *init, void *base_addr)
 Initialize a name node pointer.

Public Attributes

CHAR_PTR name_
 Name of the Node.
CHAR_PTR pointer_
 Pointer to the contents.
NAME_NODE_PTR next_
 Pointer to the next node in the doubly-linked list.
NAME_NODE_PTR prev_
 Pointer to the previous node in the doubly-linked list.

Private Member Functions

void operator= (const ACE_Name_Node &)

Detailed Description

This class supports "named memory regions" within <ace_malloc>.

Internally, the named memory regions are stored as a doubly-linked list within the <memory_pool>. This makes it easy to iterate over the items in the list in both FIFO and LIFO order.


Constructor & Destructor Documentation

ACE_PI_Control_Block::ACE_Name_Node::ACE_Name_Node const char *  name,
char *  name_ptr,
char *  pointer,
ACE_Name_Node head


Constructor.

ACE_PI_Control_Block::ACE_Name_Node::ACE_Name_Node const ACE_Name_Node  )


Copy constructor.

ACE_PI_Control_Block::ACE_Name_Node::ACE_Name_Node void   )


Constructor.

ACE_PI_Control_Block::ACE_Name_Node::~ACE_Name_Node void   )


Constructor.


Member Function Documentation

void ACE_PI_Control_Block::ACE_Name_Node::dump void   )  const


Dump the state of the object.

void ACE_PI_Control_Block::ACE_Name_Node::init_ptr NAME_NODE_PTR ptr,
ACE_Name_Node init,
void *  base_addr
[static]


Initialize a name node pointer.

void ACE_PI_Control_Block::ACE_Name_Node::name const char *   )


Assign a name;.

const char * ACE_PI_Control_Block::ACE_Name_Node::name void   )  const


Return a pointer to the name of this node.

void ACE_PI_Control_Block::ACE_Name_Node::operator= const ACE_Name_Node  )  [private]



Member Data Documentation

CHAR_PTR ACE_PI_Control_Block::ACE_Name_Node::name_


Name of the Node.

NAME_NODE_PTR ACE_PI_Control_Block::ACE_Name_Node::next_


Pointer to the next node in the doubly-linked list.

CHAR_PTR ACE_PI_Control_Block::ACE_Name_Node::pointer_


Pointer to the contents.

NAME_NODE_PTR ACE_PI_Control_Block::ACE_Name_Node::prev_


Pointer to the previous node in the doubly-linked list.


The documentation for this class was generated from the following files:
