TAO::DII_Deferred_Invocation_Adapter Class Reference

#include <DII_Invocation_Adapter.h>

Inheritance diagram for TAO::DII_Deferred_Invocation_Adapter:

Inheritance graph
[legend]

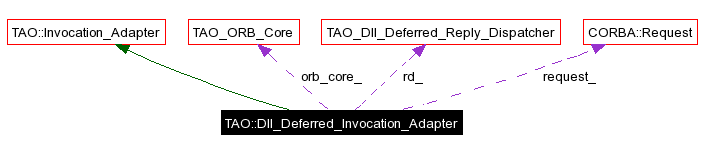

Collaboration diagram for TAO::DII_Deferred_Invocation_Adapter:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 DII_Deferred_Invocation_Adapter (CORBA::Object *target, Argument **args, int arg_number, const char *operation, int op_len, Collocation_Proxy_Broker *b, TAO_ORB_Core *oc, CORBA::Request *req, TAO::Invocation_Mode mode=TAO_DII_DEFERRED_INVOCATION)
virtual void invoke (TAO::Exception_Data *ex, unsigned long ex_count ACE_ENV_ARG_DECL)
 Invoke the target.

Protected Member Functions

virtual Invocation_Status invoke_twoway (TAO_Operation_Details &op, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time ACE_ENV_ARG_DECL)

Private Attributes

CORBA::Requestrequest_
TAO_DII_Deferred_Reply_Dispatcherrd_
 Reply dispatcher for the current Invocation.
TAO_ORB_Coreorb_core_
 Cache the orb_core.

Constructor & Destructor Documentation

TAO::DII_Deferred_Invocation_Adapter::DII_Deferred_Invocation_Adapter CORBA::Object target,
Argument **  args,
int  arg_number,
const char *  operation,
int  op_len,
Collocation_Proxy_Broker b,
TAO_ORB_Core oc,
CORBA::Request req,
TAO::Invocation_Mode  mode = TAO_DII_DEFERRED_INVOCATION



Member Function Documentation

void TAO::DII_Deferred_Invocation_Adapter::invoke TAO::Exception_Data ex,
unsigned long ex_count  ACE_ENV_ARG_DECL
[virtual]


Invoke the target.

Reimplemented from TAO::Invocation_Adapter.

Invocation_Status TAO::DII_Deferred_Invocation_Adapter::invoke_twoway TAO_Operation_Details op,
CORBA::Object_var effective_target,
Profile_Transport_Resolver r,
ACE_Time_Value *&max_wait_time  ACE_ENV_ARG_DECL
[protected, virtual]


Reimplemented from TAO::Invocation_Adapter.


Member Data Documentation

TAO_ORB_Core* TAO::DII_Deferred_Invocation_Adapter::orb_core_ [private]


Cache the orb_core.

TAO_DII_Deferred_Reply_Dispatcher* TAO::DII_Deferred_Invocation_Adapter::rd_ [private]


Reply dispatcher for the current Invocation.

CORBA::Request* TAO::DII_Deferred_Invocation_Adapter::request_ [private]



The documentation for this class was generated from the following files:
