TAO_Tagged_Profile Class Reference

This class is used to manipulate and access the target address field of a GIOP 1.2 request. More...

#include <Tagged_Profile.h>

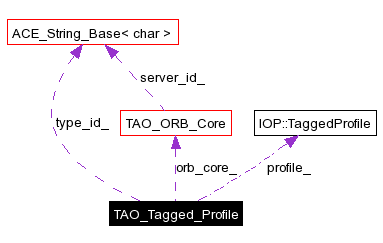

Collaboration diagram for TAO_Tagged_Profile:

[legend]List of all members.

Public Member Functions
	TAO_Tagged_Profile (TAO_ORB_Core *orb_core)
	Ctor.
CORBA::Boolean	unmarshall_target_address (TAO_InputCDR &cdr)
	Unmarshall the GIOP 1.2 target address field.
CORBA::Boolean	unmarshall_object_key (TAO_InputCDR &cdr)
	Unmarshals the received object key for GIOP 1.0/1.1.
TAO::ObjectKey &	object_key (void)
	Return the object key.
void	object_key (TAO::ObjectKey &object_key)
	Save the object key.
const TAO::ObjectKey &	object_key (void) const
	Return a const object key.
const IOP::TaggedProfile &	tagged_profile (void) const
	get the tagged_profile
CORBA::ULong	profile_index (void) const
const ACE_CString &	type_id (void) const
CORBA::Short	discriminator (void) const
Private Member Functions
CORBA::Boolean	extract_object_key (IOP::TaggedProfile &profile)
CORBA::Boolean	unmarshall_object_key_i (TAO_InputCDR &cdr)
	Unmarshals the received object key.
CORBA::Boolean	unmarshall_iop_profile_i (TAO_InputCDR &cdr)
	Unmarshall the IOP::TaggedProfile.
CORBA::Boolean	unmarshall_ref_addr_i (TAO_InputCDR &cdr)
	Unmarshalls the GIOP::IORAddressingInfo.
Private Attributes
TAO_ORB_Core *	orb_core_
	Our ORB Core.
CORBA::Short	discriminator_
	Keep track of which kind of target profile that was extracted.
CORBA::Boolean	object_key_extracted_
	Flag to denote whether the object key has been extracted yet.
TAO::ObjectKey	object_key_
	The object key.
IOP::TaggedProfile	profile_
	The Tagged profile. This class would have the Tagged Profile.
CORBA::ULong	profile_index_
ACE_CString	type_id_

---

Detailed Description

This class is used to manipulate and access the target address field of a GIOP 1.2 request.

---

Constructor & Destructor Documentation

ACE_INLINE TAO_Tagged_Profile::TAO_Tagged_Profile (  TAO_ORB_Core *  orb_core  )

Ctor.

---

Member Function Documentation

ACE_INLINE CORBA::Short TAO_Tagged_Profile::discriminator (  void   )  const

CORBA::Boolean TAO_Tagged_Profile::extract_object_key (  IOP::TaggedProfile &  profile  )  [private]

Extract the object key from the TaggedProfile and store it in <object_key_>

ACE_INLINE const TAO::ObjectKey & TAO_Tagged_Profile::object_key (  void   )  const

Return a const object key.

ACE_INLINE void TAO_Tagged_Profile::object_key (  TAO::ObjectKey &  object_key  )

Save the object key.

ACE_INLINE TAO::ObjectKey & TAO_Tagged_Profile::object_key (  void   )

Return the object key.

ACE_INLINE CORBA::ULong TAO_Tagged_Profile::profile_index (  void   )  const

Get the profile index, that needs to be used in the sequnce of TaggedProfiles contained IOP::IOR that is receivedfrom the client.

ACE_INLINE const IOP::TaggedProfile & TAO_Tagged_Profile::tagged_profile (  void   )  const

get the tagged_profile

ACE_INLINE const ACE_CString & TAO_Tagged_Profile::type_id (  void   )  const

Accessor to the type_id contained in the IOP::IOR received from the client.

CORBA::Boolean TAO_Tagged_Profile::unmarshall_iop_profile_i (  TAO_InputCDR &  cdr  )  [private]

Unmarshall the IOP::TaggedProfile.

CORBA::Boolean TAO_Tagged_Profile::unmarshall_object_key (  TAO_InputCDR &  cdr  )

Unmarshals the received object key for GIOP 1.0/1.1.

CORBA::Boolean TAO_Tagged_Profile::unmarshall_object_key_i (  TAO_InputCDR &  cdr  )  [private]

Unmarshals the received object key.

CORBA::Boolean TAO_Tagged_Profile::unmarshall_ref_addr_i (  TAO_InputCDR &  cdr  )  [private]

Unmarshalls the GIOP::IORAddressingInfo.

CORBA::Boolean TAO_Tagged_Profile::unmarshall_target_address (  TAO_InputCDR &  cdr  )

Unmarshall the GIOP 1.2 target address field.

---

Member Data Documentation

CORBA::Short TAO_Tagged_Profile::discriminator_ [private]

Keep track of which kind of target profile that was extracted.

TAO::ObjectKey TAO_Tagged_Profile::object_key_ [private]

The object key.

CORBA::Boolean TAO_Tagged_Profile::object_key_extracted_ [private]

Flag to denote whether the object key has been extracted yet.

TAO_ORB_Core* TAO_Tagged_Profile::orb_core_ [private]

Our ORB Core.

IOP::TaggedProfile TAO_Tagged_Profile::profile_ [private]

The Tagged profile. This class would have the Tagged Profile.

CORBA::ULong TAO_Tagged_Profile::profile_index_ [private]

The profile index incase we receive a GIOP::IORAddressingInfo information

ACE_CString TAO_Tagged_Profile::type_id_ [private]

The type_id in the IOP::IOR in case we receive the GIOP::IORAddressingInfo information.

---

The documentation for this class was generated from the following files:

• Tagged_Profile.h
• Tagged_Profile.cpp
• Tagged_Profile.i

---
