TAO_GIOP_Message_Lite Class Reference

Definitions of GIOPLite specific stuff. More...

#include <GIOP_Message_Lite.h>

Inheritance diagram for TAO_GIOP_Message_Lite:

Inheritance graph
[legend]

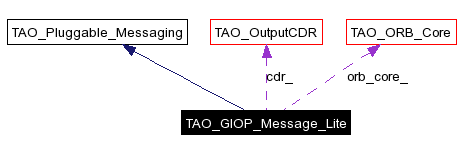

Collaboration diagram for TAO_GIOP_Message_Lite:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_GIOP_Message_Lite (TAO_ORB_Core *orb_core, size_t input_cdr_size=ACE_CDR::DEFAULT_BUFSIZE)
 Constructor.
virtual ~TAO_GIOP_Message_Lite (void)
 Dtor.
virtual void init (CORBA::Octet, CORBA::Octet)
 Initialize the object -- this is a dummy for GIOPlite.
virtual void reset (void)
 Reset the messaging the object.
virtual int generate_request_header (TAO_Operation_Details &op, TAO_Target_Specification &spec, TAO_OutputCDR &cdr)
virtual int generate_locate_request_header (TAO_Operation_Details &op, TAO_Target_Specification &spec, TAO_OutputCDR &cdr)
 Write the RequestHeader in to the cdr stream.
virtual int generate_reply_header (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base &params)
 Write the reply header.
virtual int read_message (TAO_Transport *transport, int block=0, ACE_Time_Value *max_wait_time=0)
 Dummy method to ..
virtual int format_message (TAO_OutputCDR &cdr)
virtual int parse_incoming_messages (ACE_Message_Block &message_block)
TAO_Pluggable_Message_Type message_type (void) const
virtual ssize_t missing_data (ACE_Message_Block &message_block)
virtual int extract_next_message (ACE_Message_Block &incoming, TAO_Queued_Data *&qd)
virtual int consolidate_node (TAO_Queued_Data *qd, ACE_Message_Block &incoming)
 Check whether the node qd needs consolidation from incoming.
virtual void get_message_data (TAO_Queued_Data *qd)
 Get the details of the message parsed through the <qd>.
virtual int process_request_message (TAO_Transport *transport, TAO_Queued_Data *qd)
virtual int process_reply_message (TAO_Pluggable_Reply_Params &reply_info, TAO_Queued_Data *qd)
virtual int generate_exception_reply (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base &params, CORBA::Exception &x)
 Generate a reply message with the exception ex.

Private Member Functions

int write_protocol_header (TAO_GIOP_Message_Type t, TAO_OutputCDR &msg)
int process_request (TAO_Transport *transport, TAO_InputCDR &input, TAO_OutputCDR &output)
 Processes the GIOP_REQUEST messages.
int process_locate_request (TAO_Transport *transport, TAO_InputCDR &input, TAO_OutputCDR &output)
 Processes the GIOP_LOCATE_REQUEST messages.
int make_send_locate_reply (TAO_Transport *transport, TAO_OutputCDR &output, TAO_GIOP_Locate_Request_Header &request, TAO_GIOP_Locate_Status_Msg &status)
int send_error (TAO_Transport *transport)
 Send error messages.
void send_close_connection (const TAO_GIOP_Message_Version &version, TAO_Transport *transport, void *ctx)
 Close a connection, first sending GIOP::CloseConnection.
int send_reply_exception (TAO_Transport *transport, TAO_ORB_Core *orb_core, CORBA::ULong request_id, IOP::ServiceContextList *svc_info, CORBA::Exception *x)
void dump_msg (const char *label, const u_char *ptr, size_t len)
 Print out a debug messages..
TAO_Queued_Data * make_queued_data (size_t sz)
virtual int generate_locate_reply_header (TAO_OutputCDR &, TAO_Pluggable_Reply_Params_Base &)
 Write the locate reply header.
virtual int is_ready_for_bidirectional (TAO_OutputCDR &msg)
virtual size_t header_length (void) const
 Header length.
virtual size_t fragment_header_length (CORBA::Octet major, CORBA::Octet minor) const
 Fragment header length.
virtual TAO_OutputCDR & out_stream (void)
 Accessor for the output CDR stream.
int write_request_header (const TAO_Operation_Details &opdetails, TAO_Target_Specification &spec, TAO_OutputCDR &msg)
 Write the request header in to <msg>.
int write_locate_request_header (CORBA::ULong request_id, TAO_Target_Specification &spec, TAO_OutputCDR &msg)
 Write the LocateRequest header.
int write_reply_header (TAO_OutputCDR &output, TAO_Pluggable_Reply_Params_Base &reply ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
 Write the reply header in to <output>.
int write_locate_reply_mesg (TAO_OutputCDR &output, CORBA::ULong request_id, TAO_GIOP_Locate_Status_Msg &status)
 Writes the locate _reply message in to the <output>.
int parse_request_header (TAO_ServerRequest &)
int parse_locate_header (TAO_GIOP_Locate_Request_Header &)
int parse_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params &params)
 Parse the reply message.
int parse_locate_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params &params)
 Parse the locate reply message from the server.
void init_queued_data (TAO_Queued_Data *qd) const
 Initialize the relevant portions of a TAO_Queued_Data.

Private Attributes

TAO_ORB_Core * orb_core_
 Our copy of the ORB core...
CORBA::Octet message_type_
 The message type that we are going to process..
CORBA::ULong message_size_
 The pay load size.
CORBA::Octet byte_order_
TAO_OutputCDR cdr_

Detailed Description

Definitions of GIOPLite specific stuff.

This protocol is a modified version of GIOP. This is more suited for homogenous platforms.

Constructor & Destructor Documentation

TAO_GIOP_Message_Lite::TAO_GIOP_Message_Lite (  TAO_ORB_Core *  orb_core,
size_t  input_cdr_size = ACE_CDR::DEFAULT_BUFSIZE
)


Constructor.

TAO_GIOP_Message_Lite::~TAO_GIOP_Message_Lite (  void   )  [virtual]


Dtor.

Member Function Documentation

int TAO_GIOP_Message_Lite::consolidate_node (  TAO_Queued_Data *  qd,
ACE_Message_Block &  incoming
)  [virtual]


Check whether the node qd needs consolidation from incoming.

Implements TAO_Pluggable_Messaging.

void TAO_GIOP_Message_Lite::dump_msg (  const char *  label,
const u_char *  ptr,
size_t  len
)  [private]


Print out a debug messages..

int TAO_GIOP_Message_Lite::extract_next_message (  ACE_Message_Block &  incoming,
TAO_Queued_Data *&  qd
)  [virtual]


Implements TAO_Pluggable_Messaging.

int TAO_GIOP_Message_Lite::format_message (  TAO_OutputCDR &  cdr  )  [virtual]


Format the message. As we have not written the message length in the header, we make use of this oppurtunity to insert and format the message.

Implements TAO_Pluggable_Messaging.

size_t TAO_GIOP_Message_Lite::fragment_header_length (  CORBA::Octet  major,
CORBA::Octet  minor
)  const [private, virtual]


Fragment header length.

Implements TAO_Pluggable_Messaging.

int TAO_GIOP_Message_Lite::generate_exception_reply (  TAO_OutputCDR &  cdr,
TAO_Pluggable_Reply_Params_Base &  params,
CORBA::Exception &  x
)  [virtual]


Generate a reply message with the exception ex.

Implements TAO_Pluggable_Messaging.

int TAO_GIOP_Message_Lite::generate_locate_reply_header (  TAO_OutputCDR &  ,
TAO_Pluggable_Reply_Params_Base &
)  [private, virtual]


Write the locate reply header.

Implements TAO_Pluggable_Messaging.

int TAO_GIOP_Message_Lite::generate_locate_request_header (  TAO_Operation_Details &  op,
TAO_Target_Specification &  spec,
TAO_OutputCDR &  cdr
)  [virtual]


Write the RequestHeader in to the cdr stream.

Implements TAO_Pluggable_Messaging.

int TAO_GIOP_Message_Lite::generate_reply_header (  TAO_OutputCDR &  cdr,
TAO_Pluggable_Reply_Params_Base &  params
)  [virtual]


Write the reply header.

Implements TAO_Pluggable_Messaging.

int TAO_GIOP_Message_Lite::generate_request_header (  TAO_Operation_Details &  op,
TAO_Target_Specification &  spec,
TAO_OutputCDR &  cdr
)  [virtual]


Write the RequestHeader in to the cdr stream. The underlying implementation of the mesaging should do the right thing.

Implements TAO_Pluggable_Messaging.

void TAO_GIOP_Message_Lite::get_message_data (  TAO_Queued_Data *  qd  )  [virtual]


Get the details of the message parsed through the <qd>.

Implements TAO_Pluggable_Messaging.

size_t TAO_GIOP_Message_Lite::header_length (  void   )  const [private, virtual]


Header length.

Implements TAO_Pluggable_Messaging.

void TAO_GIOP_Message_Lite::init (  CORBA::Octet  ,
CORBA::Octet
)  [virtual]


Initialize the object -- this is a dummy for GIOPlite.

Implements TAO_Pluggable_Messaging.

void TAO_GIOP_Message_Lite::init_queued_data (  TAO_Queued_Data *  qd  )  const [private]


Initialize the relevant portions of a TAO_Queued_Data.

int TAO_GIOP_Message_Lite::is_ready_for_bidirectional (  TAO_OutputCDR &  msg  )  [private, virtual]


Is the messaging object ready for processing BiDirectional request/response?

Implements TAO_Pluggable_Messaging.

TAO_Queued_Data * TAO_GIOP_Message_Lite::make_queued_data (  size_t  sz  )  [private]


int TAO_GIOP_Message_Lite::make_send_locate_reply (  TAO_Transport *  transport,
TAO_OutputCDR &  output,
TAO_GIOP_Locate_Request_Header &  request,
TAO_GIOP_Locate_Status_Msg &  status
)  [private]


Make a GIOP_LOCATEREPLY and hand that over to the transport so that it can be sent over the connection.

Note:
As on date 1.1 & 1.2 seem to have similar headers. Till an unmanageable difference comes let them be implemented here.

TAO_Pluggable_Message_Type TAO_GIOP_Message_Lite::message_type (  void   )  const


Get the message type. The return value would be one of the following: TAO_PLUGGABLE_MESSAGE_REQUEST, TAO_PLUGGABLE_MESSAGE_REPLY, TAO_PLUGGABLE_MESSAGE_CLOSECONNECTION, TAO_PLUGGABLE_MESSAGE_MESSAGE_ERROR.

ssize_t TAO_GIOP_Message_Lite::missing_data (  ACE_Message_Block &  message_block  )  [virtual]


Calculate the amount of data that is missing in the <incoming> message block.

Implements TAO_Pluggable_Messaging.

TAO_OutputCDR & TAO_GIOP_Message_Lite::out_stream (  void   )  [private, virtual]


Accessor for the output CDR stream.

Implements TAO_Pluggable_Messaging.

int TAO_GIOP_Message_Lite::parse_incoming_messages (  ACE_Message_Block &  message_block  )  [virtual]


Parse the incoming messages..

Returns:
-1 There was some error parsing the GIOP header

0 The GIOP header was parsed correctly

1 There was not enough data in the message block to parse the header

Implements TAO_Pluggable_Messaging.

int TAO_GIOP_Message_Lite::parse_locate_header (  TAO_GIOP_Locate_Request_Header &   )  [private]


Parse the Loacte Request Header from the incoming stream. This will do a version specific parsing of the incoming Request header

int TAO_GIOP_Message_Lite::parse_locate_reply (  TAO_InputCDR &  input,
TAO_Pluggable_Reply_Params &  params
)  [private]


Parse the locate reply message from the server.

int TAO_GIOP_Message_Lite::parse_reply (  TAO_InputCDR &  input,
TAO_Pluggable_Reply_Params &  params
)  [private]


Parse the reply message.

int TAO_GIOP_Message_Lite::parse_request_header (  TAO_ServerRequest &   )  [private]


Parse the Request Header from the incoming stream. This will do a version specific parsing of the incoming Request header

int TAO_GIOP_Message_Lite::process_locate_request (  TAO_Transport *  transport,
TAO_InputCDR &  input,
TAO_OutputCDR &  output
)  [private]


Processes the GIOP_LOCATE_REQUEST messages.

int TAO_GIOP_Message_Lite::process_reply_message (  TAO_Pluggable_Reply_Params &  reply_info,
TAO_Queued_Data *  qd
)  [virtual]


Parse the reply message that we received and return the reply information through reply_info

Implements TAO_Pluggable_Messaging.

int TAO_GIOP_Message_Lite::process_request (  TAO_Transport *  transport,
TAO_InputCDR &  input,
TAO_OutputCDR &  output
)  [private]


Processes the GIOP_REQUEST messages.

int TAO_GIOP_Message_Lite::process_request_message (  TAO_Transport *  transport,
TAO_Queued_Data *  qd
)  [virtual]


Process the request message that we have received on the connection

Implements TAO_Pluggable_Messaging.

int TAO_GIOP_Message_Lite::read_message (  TAO_Transport *  transport,
int  block = 0,
ACE_Time_Value *  max_wait_time = 0
)  [virtual]


Dummy method to ..

Implements TAO_Pluggable_Messaging.

void TAO_GIOP_Message_Lite::reset (  void   )  [virtual]


Reset the messaging the object.

Implements TAO_Pluggable_Messaging.

void TAO_GIOP_Message_Lite::send_close_connection (  const TAO_GIOP_Message_Version &  version,
TAO_Transport *  transport,
void *  ctx
)  [private]


Close a connection, first sending GIOP::CloseConnection.

int TAO_GIOP_Message_Lite::send_error (  TAO_Transport *  transport  )  [private]


Send error messages.

int TAO_GIOP_Message_Lite::send_reply_exception (  TAO_Transport *  transport,
TAO_ORB_Core *  orb_core,
CORBA::ULong  request_id,
IOP::ServiceContextList *  svc_info,
CORBA::Exception *  x
)  [private]


We must send a LocateReply through transport, this request resulted in some kind of exception.

int TAO_GIOP_Message_Lite::write_locate_reply_mesg (  TAO_OutputCDR &  output,
CORBA::ULong  request_id,
TAO_GIOP_Locate_Status_Msg &  status
)  [private]


Writes the locate _reply message in to the <output>.

int TAO_GIOP_Message_Lite::write_locate_request_header (  CORBA::ULong  request_id,
TAO_Target_Specification &  spec,
TAO_OutputCDR &  msg
)  [private]


Write the LocateRequest header.

int TAO_GIOP_Message_Lite::write_protocol_header (  TAO_GIOP_Message_Type  t,
TAO_OutputCDR &  msg
)  [private]


Writes the GIOP header in to msg

Note:
If the GIOP header happens to change in the future, we can push this method in to the generator_parser classes.

int TAO_GIOP_Message_Lite::write_reply_header (  TAO_OutputCDR &  output,
TAO_Pluggable_Reply_Params_Base &reply  ACE_ENV_ARG_DECL_WITH_DEFAULTS
)  throw (CORBA::SystemException) [private]


Write the reply header in to <output>.

int TAO_GIOP_Message_Lite::write_request_header (  const TAO_Operation_Details &  opdetails,
TAO_Target_Specification &  spec,
TAO_OutputCDR &  msg
)  [private]


Write the request header in to <msg>.

Member Data Documentation

CORBA::Octet TAO_GIOP_Message_Lite::byte_order_ [private]


TAO_OutputCDR TAO_GIOP_Message_Lite::cdr_ [private]


CORBA::ULong TAO_GIOP_Message_Lite::message_size_ [private]


The pay load size.

CORBA::Octet TAO_GIOP_Message_Lite::message_type_ [private]


The message type that we are going to process..

TAO_ORB_Core* TAO_GIOP_Message_Lite::orb_core_ [private]


Our copy of the ORB core...

The documentation for this class was generated from the following files:
Generated on Thu Jun 9 00:17:25 2005 for TAO by  doxygen 1.3.9.1
