TAO::Remote_Invocation Class Reference

Base class for remote invocations. More...

#include <Remote_Invocation.h>

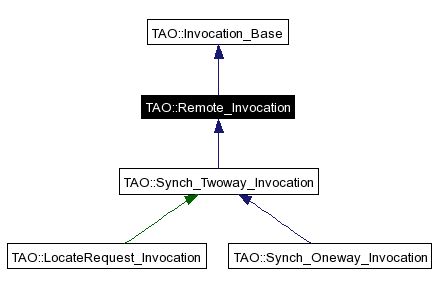

Inheritance diagram for TAO::Remote_Invocation:

Inheritance graph
[legend]

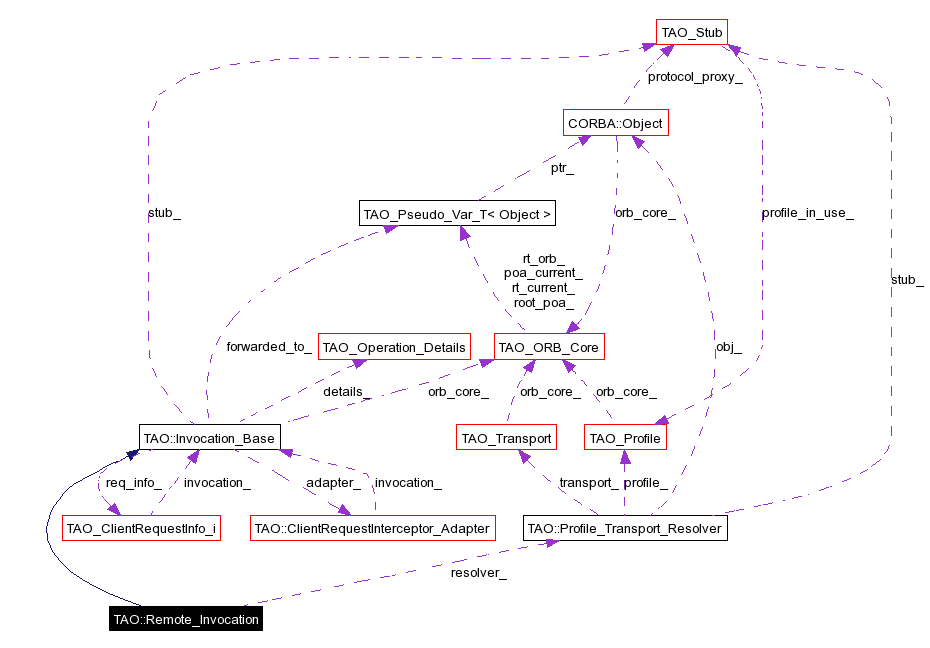

Collaboration diagram for TAO::Remote_Invocation:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 Remote_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected)

Protected Member Functions

void init_target_spec (TAO_Target_Specification &spec ACE_ENV_ARG_DECL)
 Initialize the spec.
void write_header (TAO_Target_Specification &spec, TAO_OutputCDR &out_stream ACE_ENV_ARG_DECL)
 Write the GIOP header into the stream.
void marshal_data (TAO_OutputCDR &cdr ACE_ENV_ARG_DECL)
 Marshal the arguments into the stream.
Invocation_Status send_message (TAO_OutputCDR &cdr, short message_semantics, ACE_Time_Value *max_wait_time ACE_ENV_ARG_DECL)
 Write the message onto the socket.

Protected Attributes

Profile_Transport_Resolverresolver_
 Our resolver.

Detailed Description

Base class for remote invocations.

This class encapulates some of the common functionalities used by synchronous, asynchronous, DII and DSI invocations.


Constructor & Destructor Documentation

TAO::Remote_Invocation::Remote_Invocation CORBA::Object_ptr  otarget,
Profile_Transport_Resolver resolver,
TAO_Operation_Details detail,
bool  response_expected


Parameters:
otarget The original target on which this invocation was started. This is there to be passed up to its parent class.
resolver The profile and transport holder.
detail Pperation details of the invocation on the target
response_expected Flag to indicate whether the operation encapsulated by op returns a response or not.


Member Function Documentation

void TAO::Remote_Invocation::init_target_spec TAO_Target_Specification &spec  ACE_ENV_ARG_DECL  )  [protected]


Initialize the spec.

void TAO::Remote_Invocation::marshal_data TAO_OutputCDR &cdr  ACE_ENV_ARG_DECL  )  [protected]


Marshal the arguments into the stream.

Invocation_Status TAO::Remote_Invocation::send_message TAO_OutputCDR cdr,
short  message_semantics,
ACE_Time_Value *max_wait_time  ACE_ENV_ARG_DECL
[protected]


Write the message onto the socket.

void TAO::Remote_Invocation::write_header TAO_Target_Specification spec,
TAO_OutputCDR &out_stream  ACE_ENV_ARG_DECL
[protected]


Write the GIOP header into the stream.


Member Data Documentation

Profile_Transport_Resolver& TAO::Remote_Invocation::resolver_ [protected]


Our resolver.


The documentation for this class was generated from the following files:
Generated on Thu Jun 9 00:19:18 2005 for TAO by  doxygen 1.3.9.1
