TAO::Collocated_Invocation Class Reference

Class for Collocated invocations. More...

#include <Collocated_Invocation.h>

Inheritance diagram for TAO::Collocated_Invocation:

Inheritance graph
[legend]

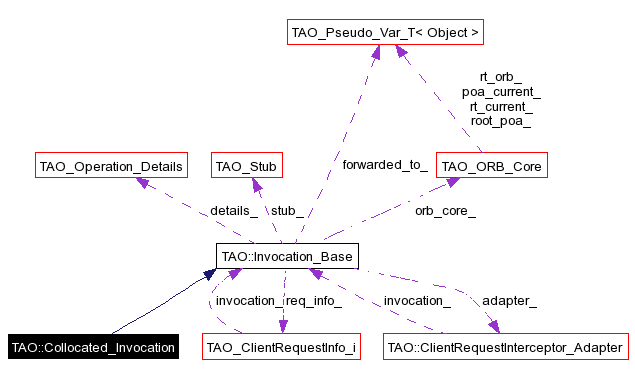

Collaboration diagram for TAO::Collocated_Invocation:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 Collocated_Invocation (CORBA::Object_ptr t, CORBA::Object_ptr et, TAO_Stub *stub, TAO_Operation_Details &detail, bool response_expected=true)
 Constructor used by TAO::Invocation_Adapter.
Invocation_Status invoke (Collocation_Proxy_Broker *cpb, Collocation_Strategy strat ACE_ENV_ARG_DECL)

Private Member Functions

 Collocated_Invocation (void)

Detailed Description

Class for Collocated invocations.

Note:
Reliable oneways are not handled properly including use of interceptors. This class should technically serve as the base for all invocation types. But now, this is the only class that handles collocated invocations and that too in a brain dead way.


Constructor & Destructor Documentation

TAO::Collocated_Invocation::Collocated_Invocation CORBA::Object_ptr  t,
CORBA::Object_ptr  et,
TAO_Stub stub,
TAO_Operation_Details detail,
bool  response_expected = true


Constructor used by TAO::Invocation_Adapter.

Parameters:
t The target on which invocation first started.
et The effective target in which this invocation is now flowing
stub Stub for effective target et
detail operation details of the invocation including the service context list
response_expected flag to indicate whether the operation encapsulated by detail returns a response or not.

TAO::Collocated_Invocation::Collocated_Invocation void   )  [private]



Member Function Documentation

Invocation_Status TAO::Collocated_Invocation::invoke Collocation_Proxy_Broker cpb,
Collocation_Strategy strat  ACE_ENV_ARG_DECL


Practically this method is a place holder to do the following

  • Call the start and end interception points on the client side.

  • Handle location forwards that could be thrown by the servant.


The documentation for this class was generated from the following files:
