import "UShortSeq.pidl";
import "Current.pidl";
import "Policy_Forward.pidl";

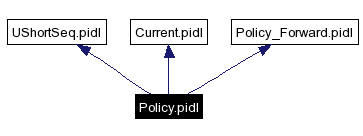

Include dependency graph for Policy.pidl:

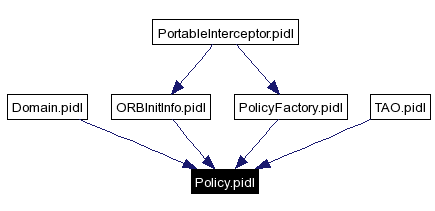

This graph shows which files directly or indirectly include this file:
Namespaces | |
namespace | CORBA |
Classes | |
exception | CORBA::PolicyError |
exception | CORBA::InvalidPolicies |
interface | CORBA::Policy |
interface | CORBA::PolicyManager |
interface | CORBA::PolicyCurrent |
Typedefs | |
typedef short | PolicyErrorCode |
Variables | |
const PolicyErrorCode | BAD_POLICY = 0 |
const PolicyErrorCode | UNSUPPORTED_POLICY = 1 |
const PolicyErrorCode | BAD_POLICY_TYPE = 2 |
const PolicyErrorCode | BAD_POLICY_VALUE = 3 |
const PolicyErrorCode | UNSUPPORTED_POLICY_VALUE = 4 |
This file is used to generate the code in PolicyC.{h,inl,cpp}. Also, skeleton code for the only non local Policy interface is generated from this pidl file and then the declaration code is moved to tao/PortableServer/PolicyS.{h,inl,cpp}
The steps to regenerate the code are as follows:
1. Run the tao_idl compiler on the patched pidl file. The command used for this is:
tao_idl.exe -o orig -Gp -Gd -Ge 1 -GA -Ssi -Wb,stub_export_macro=TAO_Export -Wb,stub_export_include="tao/TAO_Export.h" -Wb,skel_export_macro=TAO_PortableServer_Export -Wb,skel_export_include=portableserver_export.h -Wb,pre_include="ace/pre.h" -Wb,post_include="ace/post.h" Policy.pidl
2. Then patch the generated code using patches in diff/Policy.diff. To patch the generated code in PortableServer look for diffs in PortableServer/diffs directory.
Note: The diffs were generated with these commands:
for i in PolicyC.{h,i,cpp}; do diff -wBbu orig/$i $i; done > diffs/Policy.diff for i in Policy{S,S_T}.{h,i,cpp}; do diff -wBbu orig/$i PortableServer/$i; done >> diffs/Policy.diff
|
|
|
|
|
|
|
|
|
|
|
|
