Invocation_Utils.h File Reference

#include "ace/config-all.h"

Include dependency graph for Invocation_Utils.h:

Include dependency graph

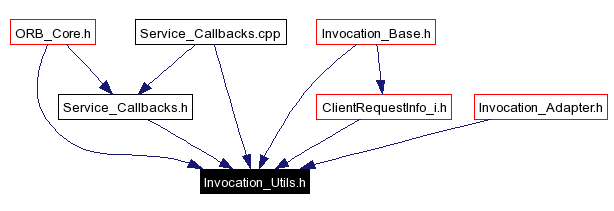

This graph shows which files directly or indirectly include this file:

Included by dependency graph

Namespaces

namespace  TAO

Enumerations

enum  Invocation_Status {
  TAO_INVOKE_START = 0, TAO_INVOKE_RESTART, TAO_INVOKE_SUCCESS, TAO_INVOKE_USER_EXCEPTION,
  TAO_INVOKE_SYSTEM_EXCEPTION, TAO_INVOKE_FAILURE
}
enum  Invocation_Type { TAO_ONEWAY_INVOCATION, TAO_TWOWAY_INVOCATION }
 Enums for invocation types. More...
enum  Invocation_Mode {
  TAO_SYNCHRONOUS_INVOCATION, TAO_ASYNCHRONOUS_CALLBACK_INVOCATION, TAO_ASYNCHRONOUS_POLLER_INVOCATION, TAO_DII_INVOCATION,
  TAO_DII_DEFERRED_INVOCATION
}
 Enum for invocation modes. More...

Detailed Description

Id
Invocation_Utils.h,v 1.3 2003/12/19 11:10:15 jwillemsen Exp

Author:
Balachandran Natarajan <bala@dre.vanderbilt.edu>

Enumeration Type Documentation

enum Invocation_Mode


Enum for invocation modes.

Enumeration values:
TAO_SYNCHRONOUS_INVOCATION  Standard synchronous twoway.
TAO_ASYNCHRONOUS_CALLBACK_INVOCATION  Asynchronous twoway with callback model for collecting the replies.
TAO_ASYNCHRONOUS_POLLER_INVOCATION  Asynchronous twoway with poller model for collecting the replies.
Note:
This is not supported in TAO now
TAO_DII_INVOCATION  Types of DII.
TAO_DII_DEFERRED_INVOCATION

enum Invocation_Status


Enumeration values:
TAO_INVOKE_START  Initial state of the FSM in the invocation class.
TAO_INVOKE_RESTART  The request must be restarted, a temporary failure has occured.
TAO_INVOKE_SUCCESS  invoke() call successful. Final state of the FSM.
TAO_INVOKE_USER_EXCEPTION  Received a user exception from the remote object, and this is one of the final states.
TAO_INVOKE_SYSTEM_EXCEPTION  Received a system exception from the remote object or the PI and it is one of the final states
TAO_INVOKE_FAILURE  Invocation failed. It is a final state.

enum Invocation_Type


Enums for invocation types.

Enumeration values:
TAO_ONEWAY_INVOCATION  A simple oneway invocation.
TAO_TWOWAY_INVOCATION  A simple twoway invocation.
