IOP_IOR.pidl File Reference

Pre-compiled IDL source for the IOP module. More...

import "OctetSeq.pidl";

Include dependency graph for IOP_IOR.pidl:

Include dependency graph

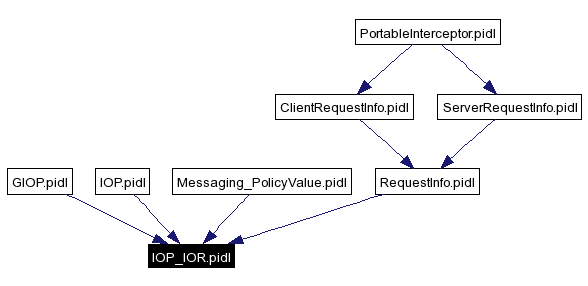

This graph shows which files directly or indirectly include this file:

Included by dependency graph

Namespaces

namespace  IOP

Classes

struct  IOP::TaggedProfile
struct  IOP::IOR
struct  IOP::TaggedComponent
struct  IOP::ServiceContext

Typedefs

typedef unsigned long ProfileId
typedef sequence< TaggedProfile > TaggedProfileSeq
typedef unsigned long ComponentId
typedef sequence< TaggedComponent > MultipleComponentProfile
typedef sequence< TaggedComponent > TaggedComponentList
typedef sequence< TaggedComponent > TaggedComponentSeq
typedef unsigned long ServiceId
typedef sequence< ServiceContext > ServiceContextList

Variables

const ProfileId TAG_INTERNET_IOP = 0
const ProfileId TAG_MULTIPLE_COMPONENTS = 1
const ComponentId TAG_ORB_TYPE = 0
const ComponentId TAG_CODE_SETS = 1
const ComponentId TAG_POLICIES = 2
const ComponentId TAG_ALTERNATE_IIOP_ADDRESS = 3
const ComponentId TAG_COMPLETE_OBJECT_KEY = 5
const ComponentId TAG_ENDPOINT_ID_POSITION = 6
const ComponentId TAG_LOCATION_POLICY = 12
const ComponentId TAG_DCE_STRING_BINDING = 100
const ComponentId TAG_DCE_BINDING_NAME = 101
const ComponentId TAG_DCE_NO_PIPES = 102
const ServiceId TransactionService = 0
const ServiceId CodeSets = 1
const ServiceId ChainBypassCheck = 2
const ServiceId ChainBypassInfo = 3
const ServiceId LogicalThreadId = 4
const ServiceId BI_DIR_IIOP = 5
const ServiceId SendingContextRunTime = 6
const ServiceId INVOCATION_POLICIES = 7
const ServiceId UnknownExceptionInfo = 9
const ServiceId RTCorbaPriority = 10
const ServiceId RTCorbaPriorityRange = 11
const ComponentId TAG_FT_GROUP = 27
const ComponentId TAG_FT_PRIMARY = 28
const ComponentId TAG_FT_HEARTBEAT_ENABLED = 29
const ServiceId FT_GROUP_VERSION = 12
const ServiceId FT_REQUEST = 13
const ProfileId TAG_UIPMC = 0x54414f0c
const ComponentId TAG_GROUP = 0x54414f03
const ComponentId TAG_GROUP_IIOP = 0x54414f04

Detailed Description

Pre-compiled IDL source for the IOP module.

Id
IOP_IOR.pidl,v 1.14 2005/04/12 08:32:43 jwillemsen Exp

This file is used to generate IOPC.{h,cpp}, using the following command:

tao_idl.exe -o orig -Gp -Gd -Ge 1 -GA -Sc -SS -Sci -Wb,export_macro=TAO_Export -Wb,export_include=tao/TAO_Export.h -Wb,pre_include="ace/pre.h" -Wb,post_include="ace/post.h" IOP_IOR.pidl

and then:

cp orig/IOP_IORC.{h,inl,cpp} . cp orig/IOP_IORA.cpp .


Typedef Documentation

typedef CORBA::ULong IOP::ComponentId


typedef sequence<TaggedComponent> IOP::MultipleComponentProfile


typedef CORBA::ULong IOP::ProfileId


typedef sequence<ServiceContext> IOP::ServiceContextList


typedef CORBA::ULong IOP::ServiceId


typedef sequence<TaggedComponent> IOP::TaggedComponentList


typedef sequence<TaggedComponent> IOP::TaggedComponentSeq


typedef sequence<TaggedProfile> IOP::TaggedProfileSeq



Variable Documentation

const IOP::ServiceId IOP::BI_DIR_IIOP = 5


const IOP::ServiceId IOP::ChainBypassCheck = 2


const IOP::ServiceId IOP::ChainBypassInfo = 3


const IOP::ServiceId IOP::CodeSets = 1


const IOP::ServiceId IOP::FT_GROUP_VERSION = 12


const IOP::ServiceId IOP::FT_REQUEST = 13


const IOP::ServiceId IOP::INVOCATION_POLICIES = 7


const IOP::ServiceId IOP::LogicalThreadId = 4


const IOP::ServiceId IOP::RTCorbaPriority = 10


const IOP::ServiceId IOP::RTCorbaPriorityRange = 11


const IOP::ServiceId IOP::SendingContextRunTime = 6


const IOP::ComponentId IOP::TAG_ALTERNATE_IIOP_ADDRESS = 3


const IOP::ComponentId IOP::TAG_CODE_SETS = 1


const IOP::ComponentId IOP::TAG_COMPLETE_OBJECT_KEY = 5


const IOP::ComponentId IOP::TAG_DCE_BINDING_NAME = 101


const IOP::ComponentId IOP::TAG_DCE_NO_PIPES = 102


const IOP::ComponentId IOP::TAG_DCE_STRING_BINDING = 100


const IOP::ComponentId IOP::TAG_ENDPOINT_ID_POSITION = 6


const IOP::ComponentId IOP::TAG_FT_GROUP = 27


const IOP::ComponentId IOP::TAG_FT_HEARTBEAT_ENABLED = 29


const IOP::ComponentId IOP::TAG_FT_PRIMARY = 28


const IOP::ComponentId IOP::TAG_GROUP = 0x54414f03


const IOP::ComponentId IOP::TAG_GROUP_IIOP = 0x54414f04


const IOP::ProfileId IOP::TAG_INTERNET_IOP = 0


const IOP::ComponentId IOP::TAG_LOCATION_POLICY = 12


const IOP::ProfileId IOP::TAG_MULTIPLE_COMPONENTS = 1


const IOP::ComponentId IOP::TAG_ORB_TYPE = 0


const IOP::ComponentId IOP::TAG_POLICIES = 2


const IOP::ProfileId IOP::TAG_UIPMC = 0x54414f0c


const IOP::ServiceId IOP::TransactionService = 0


const IOP::ServiceId IOP::UnknownExceptionInfo = 9
