ACE_Remote_Mutex Class Reference

Proxy for acquiring, renewing, and releasing a distributed mutex. More...

#include <Remote_Tokens.h>

Inheritance diagram for ACE_Remote_Mutex:

Inheritance graph
[legend]

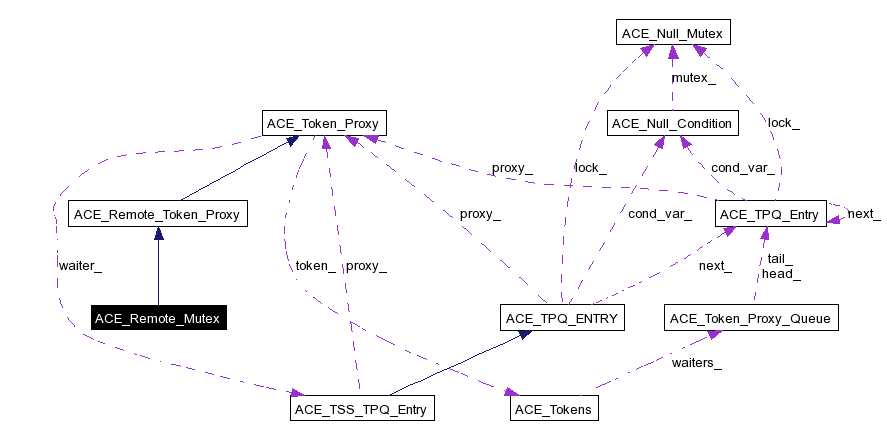

Collaboration diagram for ACE_Remote_Mutex:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Remote_Mutex (void)
 Null creation. Remote_Token_Proxy::open must be called.
 ACE_Remote_Mutex (const ACE_TCHAR *token_name, int ignore_deadlock=0, int debug=0)
 Calls Remote_Token_Proxy::open for you.
void dump (void) const
 Dump the state of the class.
virtual ACE_Token_Proxyclone (void) const
 Return deep copy.

Protected Member Functions

virtual ACE_Tokenscreate_token (const ACE_TCHAR *name)

Detailed Description

Proxy for acquiring, renewing, and releasing a distributed mutex.

This is the remote equivalent to ACE_Local_Mutex. The Remote_Mutex class offers methods for acquiring, renewing, and releasing a distributed synchronization mutex. Similar to ACE_Local_Mutex, ACE_Remote_Token_Proxy offers recursive acquisition, FIFO waiter ordering, and deadlock detection. It depends on the Token Server for its distributed synchronization semantics.


Constructor & Destructor Documentation

ACE_Remote_Mutex::ACE_Remote_Mutex void   )


Null creation. Remote_Token_Proxy::open must be called.

ACE_Remote_Mutex::ACE_Remote_Mutex const ACE_TCHAR token_name,
int  ignore_deadlock = 0,
int  debug = 0


Calls Remote_Token_Proxy::open for you.


Member Function Documentation

ACE_Token_Proxy * ACE_Remote_Mutex::clone void   )  const [virtual]


Return deep copy.

Implements ACE_Token_Proxy.

ACE_Tokens * ACE_Remote_Mutex::create_token const ACE_TCHAR name  )  [protected, virtual]


Make the correct type of ACE_Tokens. This is called by the ACE_Token_Manager.

Implements ACE_Token_Proxy.

void ACE_Remote_Mutex::dump void   )  const


Dump the state of the class.

Reimplemented from ACE_Remote_Token_Proxy.


The documentation for this class was generated from the following files:
