ACE_ATM_Stream Class Reference

Defines the member functions for ACE_ATM_Stream abstraction. More...

#include <ATM_Stream.h>

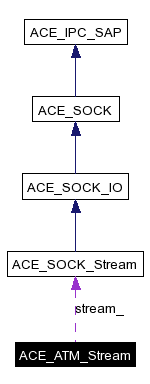

Collaboration diagram for ACE_ATM_Stream:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_ATM_Addr PEER_ADDR

Public Member Functions

 ACE_ATM_Stream (void)
 Default constructor.
int open (ACE_ATM_Params params=ACE_ATM_Params())
 open the stream.
int close (void)
 Close down and release resources.
ACE_HANDLE get_handle (void) const
 Get the underlying handle.
ATM_Streamget_stream (void)
 Get the underlying stream.
char * get_peer_name (void) const
 Get the name of the connected host.
int get_vpi_vci (ACE_UINT16 &vpi, ACE_UINT16 &vci) const
 Get the VPI and VCI of the stream.
ssize_t recv (void *buf, size_t n, int *flags=0) const
 Recv an n byte buffer from the connected transport mechanism.
ssize_t send_n (const void *buf, size_t n, int flags) const
 Send exactly n bytes to the connected transport mechanism.
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Attributes

ATM_Stream stream_
 Typedef'd to the appropriate stream mechanism above.

Detailed Description

Defines the member functions for ACE_ATM_Stream abstraction.


Member Typedef Documentation

typedef ACE_ATM_Addr ACE_ATM_Stream::PEER_ADDR



Constructor & Destructor Documentation

ACE_INLINE ACE_ATM_Stream::ACE_ATM_Stream void   )


Default constructor.


Member Function Documentation

ACE_INLINE int ACE_ATM_Stream::close void   )


Close down and release resources.

ACE_INLINE void ACE_ATM_Stream::dump void   )  const


Dump the state of an object.

ACE_HANDLE ACE_ATM_Stream::get_handle void   )  const


Get the underlying handle.

char * ACE_ATM_Stream::get_peer_name void   )  const


Get the name of the connected host.

ACE_INLINE ATM_Stream & ACE_ATM_Stream::get_stream void   )


Get the underlying stream.

int ACE_ATM_Stream::get_vpi_vci ACE_UINT16 &  vpi,
ACE_UINT16 &  vci
const


Get the VPI and VCI of the stream.

ACE_INLINE int ACE_ATM_Stream::open ACE_ATM_Params  params = ACE_ATM_Params()  )


open the stream.

ACE_INLINE ssize_t ACE_ATM_Stream::recv void *  buf,
size_t  n,
int *  flags = 0
const


Recv an n byte buffer from the connected transport mechanism.

ACE_INLINE ssize_t ACE_ATM_Stream::send_n const void *  buf,
size_t  n,
int  flags
const


Send exactly n bytes to the connected transport mechanism.


Member Data Documentation

ACE_ATM_Stream::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

ATM_Stream ACE_ATM_Stream::stream_ [private]


Typedef'd to the appropriate stream mechanism above.


The documentation for this class was generated from the following files:
