ACE_AIOCB_Notify_Pipe_Manager Class Reference

This class manages the notify pipe of the AIOCB Proactor. More...

Inheritance diagram for ACE_AIOCB_Notify_Pipe_Manager:

Inheritance graph
[legend]

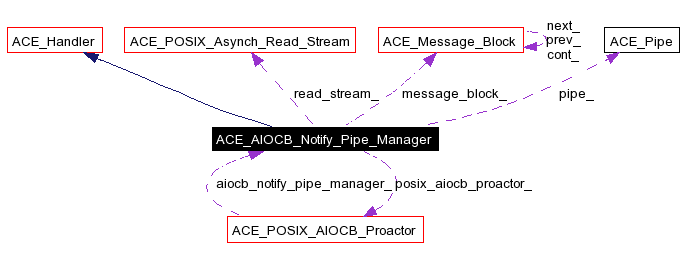

Collaboration diagram for ACE_AIOCB_Notify_Pipe_Manager:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_AIOCB_Notify_Pipe_Manager (ACE_POSIX_AIOCB_Proactor *posix_aiocb_proactor)
virtual ~ACE_AIOCB_Notify_Pipe_Manager (void)
 Destructor.
int notify ()
 Send the result pointer through the notification pipe.
virtual void handle_read_stream (const ACE_Asynch_Read_Stream::Result &result)

Private Member Functions

 ACE_AIOCB_Notify_Pipe_Manager (void)
 Default constructor. Shouldnt be called.

Private Attributes

ACE_POSIX_AIOCB_Proactorposix_aiocb_proactor_
 The implementation proactor class.
ACE_Message_Block message_block_
 Message block to get ACE_POSIX_Asynch_Result pointer from the pipe.
ACE_Pipe pipe_
ACE_POSIX_Asynch_Read_Stream read_stream_
 To do asynch_read on the pipe.

Detailed Description

This class manages the notify pipe of the AIOCB Proactor.

This class acts as the Handler for the <asynch_read> operations issued on the notify pipe. This class is very useful in implementing <asynch_accept> operation class for the <aiocb_proactor>. This is also useful for implementing <post_completion> for <aiocb_proactor>.

<aiocb_proactor> class issues a <asynch_read> on the pipe, using this class as the Handler. <POSIX_Asynch_Result *>'s are sent through the notify pipe. When <POSIX_Asynch_Result *>'s show up on the notify pipe, the <posix_aiocb_proactor> dispatches the completion of the <asynch_read_stream> and calls the <handle_read_stream> of this class. This class calls <complete> on the <POSIX_Asynch_Result *> and thus calls the application handler. Handling the MessageBlock: We give this message block to read the result pointer through the notify pipe. We expect that to read 4 bytes from the notify pipe, for each <accept> call. Before giving this message block to another <accept>, we update <wr_ptr> and put it in its initial position.


Constructor & Destructor Documentation

ACE_AIOCB_Notify_Pipe_Manager::ACE_AIOCB_Notify_Pipe_Manager ACE_POSIX_AIOCB_Proactor posix_aiocb_proactor  )


Constructor. You need the posix proactor because you need to call <application_specific_code>

ACE_AIOCB_Notify_Pipe_Manager::~ACE_AIOCB_Notify_Pipe_Manager void   )  [virtual]


Destructor.

ACE_AIOCB_Notify_Pipe_Manager::ACE_AIOCB_Notify_Pipe_Manager void   )  [private]


Default constructor. Shouldnt be called.


Member Function Documentation

void ACE_AIOCB_Notify_Pipe_Manager::handle_read_stream const ACE_Asynch_Read_Stream::Result result  )  [virtual]


This is the call back method when <asynch_read> from the pipe is complete.

Reimplemented from ACE_Handler.

int ACE_AIOCB_Notify_Pipe_Manager::notify  )


Send the result pointer through the notification pipe.


Member Data Documentation

ACE_Message_Block ACE_AIOCB_Notify_Pipe_Manager::message_block_ [private]


Message block to get ACE_POSIX_Asynch_Result pointer from the pipe.

ACE_Pipe ACE_AIOCB_Notify_Pipe_Manager::pipe_ [private]


Pipe for the communication between Proactor and the Asynch_Accept/Asynch_Connect and other post_completions

ACE_POSIX_AIOCB_Proactor* ACE_AIOCB_Notify_Pipe_Manager::posix_aiocb_proactor_ [private]


The implementation proactor class.

ACE_POSIX_Asynch_Read_Stream ACE_AIOCB_Notify_Pipe_Manager::read_stream_ [private]


To do asynch_read on the pipe.


The documentation for this class was generated from the following file:
