TAO_RT_Protocols_Hooks Class Reference

#include <RT_Protocols_Hooks.h>

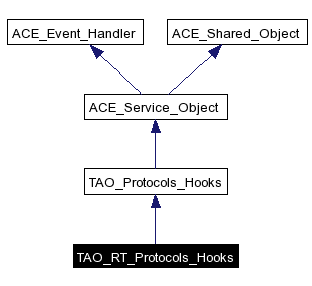

Inheritance diagram for TAO_RT_Protocols_Hooks:

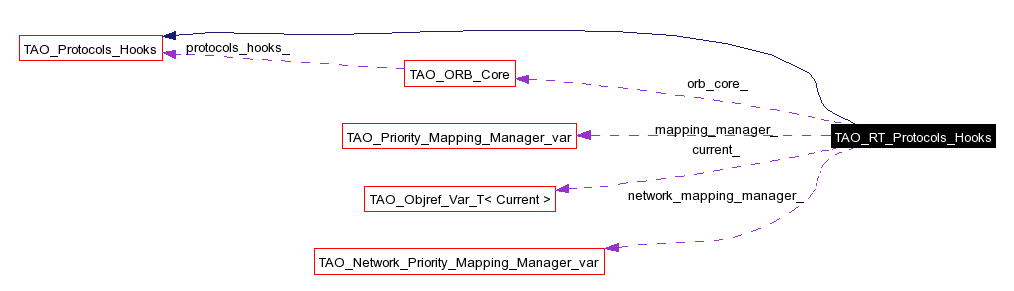

[legend]Collaboration diagram for TAO_RT_Protocols_Hooks:

[legend]List of all members.

Public Member Functions
	TAO_RT_Protocols_Hooks (void)
	Constructor.
virtual	~TAO_RT_Protocols_Hooks (void)
	Destructor.
void	init_hooks (TAO_ORB_Core *orb_core ACE_ENV_ARG_DECL)
	Initialize the protocols hooks instance.
CORBA::Boolean	set_client_network_priority (IOP::ProfileId protocol_tag, TAO_Stub *stub ACE_ENV_ARG_DECL)
CORBA::Boolean	set_server_network_priority (IOP::ProfileId protocol_tag, CORBA::Policy *policy ACE_ENV_ARG_DECL)
void	server_protocol_properties_at_orb_level (TAO_IIOP_Protocol_Properties &protocol_properties ACE_ENV_ARG_DECL)
void	client_protocol_properties_at_orb_level (TAO_IIOP_Protocol_Properties &protocol_properties ACE_ENV_ARG_DECL)
void	server_protocol_properties_at_orb_level (TAO_UIOP_Protocol_Properties &protocol_properties ACE_ENV_ARG_DECL)
void	client_protocol_properties_at_orb_level (TAO_UIOP_Protocol_Properties &protocol_properties ACE_ENV_ARG_DECL)
void	server_protocol_properties_at_orb_level (TAO_SHMIOP_Protocol_Properties &protocol_properties ACE_ENV_ARG_DECL)
void	client_protocol_properties_at_orb_level (TAO_SHMIOP_Protocol_Properties &protocol_properties ACE_ENV_ARG_DECL)
void	server_protocol_properties_at_orb_level (TAO_DIOP_Protocol_Properties &protocol_properties ACE_ENV_ARG_DECL)
void	client_protocol_properties_at_orb_level (TAO_DIOP_Protocol_Properties &protocol_properties ACE_ENV_ARG_DECL)
void	server_protocol_properties_at_orb_level (TAO_SCIOP_Protocol_Properties &protocol_properties ACE_ENV_ARG_DECL)
void	client_protocol_properties_at_orb_level (TAO_SCIOP_Protocol_Properties &protocol_properties ACE_ENV_ARG_DECL)
CORBA::Long	get_dscp_codepoint (void)
void	rt_service_context (TAO_Stub *stub, TAO_Service_Context &service_context, CORBA::Boolean restart ACE_ENV_ARG_DECL)
void	add_rt_service_context_hook (TAO_Service_Context &service_context, CORBA::Policy *model_policy, CORBA::Short &client_priority ACE_ENV_ARG_DECL)
void	get_selector_hook (CORBA::Policy *model_policy, CORBA::Boolean &is_client_propagated, CORBA::Short &server_priority)
void	get_selector_bands_policy_hook (CORBA::Policy *bands_policy, CORBA::Short priority, CORBA::Short &min_priority, CORBA::Short &max_priority, int &in_range)
int	get_thread_CORBA_priority (CORBA::Short &ACE_ENV_ARG_DECL)
int	get_thread_native_priority (CORBA::Short &ACE_ENV_ARG_DECL)
int	get_thread_CORBA_and_native_priority (CORBA::Short &, CORBA::Short &ACE_ENV_ARG_DECL)
int	set_thread_CORBA_priority (CORBA::Short ACE_ENV_ARG_DECL)
int	set_thread_native_priority (CORBA::Short ACE_ENV_ARG_DECL)
Protected Member Functions
RTCORBA::ProtocolProperties_ptr	server_protocol_properties (IOP::ProfileId protocol_tag, CORBA::Policy_ptr policy ACE_ENV_ARG_DECL)
RTCORBA::ProtocolProperties_ptr	client_protocol_properties (IOP::ProfileId protocol_tag, CORBA::Policy_ptr policy ACE_ENV_ARG_DECL)
RTCORBA::ProtocolProperties_ptr	server_protocol_properties_at_orb_level (IOP::ProfileId protocol_tag ACE_ENV_ARG_DECL)
RTCORBA::ProtocolProperties_ptr	client_protocol_properties_at_orb_level (IOP::ProfileId protocol_tag ACE_ENV_ARG_DECL)
RTCORBA::ProtocolProperties_ptr	client_protocol_properties_at_object_level (IOP::ProfileId protocol_tag, TAO_Stub *stub ACE_ENV_ARG_DECL)
void	extract_protocol_properties (TAO_IIOP_Protocol_Properties &to, RTCORBA::ProtocolProperties_ptr from ACE_ENV_ARG_DECL)
void	extract_protocol_properties (TAO_UIOP_Protocol_Properties &to, RTCORBA::ProtocolProperties_ptr from ACE_ENV_ARG_DECL)
void	extract_protocol_properties (TAO_SHMIOP_Protocol_Properties &to, RTCORBA::ProtocolProperties_ptr from ACE_ENV_ARG_DECL)
void	extract_protocol_properties (TAO_DIOP_Protocol_Properties &to, RTCORBA::ProtocolProperties_ptr from ACE_ENV_ARG_DECL)
void	extract_protocol_properties (TAO_SCIOP_Protocol_Properties &to, RTCORBA::ProtocolProperties_ptr from ACE_ENV_ARG_DECL)
CORBA::Boolean	set_network_priority (IOP::ProfileId protocol_tag, RTCORBA::ProtocolProperties_ptr protocol_properties ACE_ENV_ARG_DECL)
Protected Attributes
TAO_ORB_Core *	orb_core_
TAO_Priority_Mapping_Manager_var	mapping_manager_
TAO_Network_Priority_Mapping_Manager_var	network_mapping_manager_
RTCORBA::Current_var	current_

---

Constructor & Destructor Documentation

TAO_RT_Protocols_Hooks::TAO_RT_Protocols_Hooks (  void   )

Constructor.

TAO_RT_Protocols_Hooks::~TAO_RT_Protocols_Hooks (  void   )  [virtual]

Destructor.

---

Member Function Documentation

void TAO_RT_Protocols_Hooks::add_rt_service_context_hook (  TAO_Service_Context &  service_context, CORBA::Policy *  model_policy, CORBA::Short &client_priority  ACE_ENV_ARG_DECL )  [virtual]

Implements TAO_Protocols_Hooks.

RTCORBA::ProtocolProperties_ptr TAO_RT_Protocols_Hooks::client_protocol_properties (  IOP::ProfileId  protocol_tag, CORBA::Policy_ptr policy  ACE_ENV_ARG_DECL )  [protected]

RTCORBA::ProtocolProperties_ptr TAO_RT_Protocols_Hooks::client_protocol_properties_at_object_level (  IOP::ProfileId  protocol_tag, TAO_Stub *stub  ACE_ENV_ARG_DECL )  [protected]

RTCORBA::ProtocolProperties_ptr TAO_RT_Protocols_Hooks::client_protocol_properties_at_orb_level (  IOP::ProfileId protocol_tag  ACE_ENV_ARG_DECL  )  [protected]

void TAO_RT_Protocols_Hooks::client_protocol_properties_at_orb_level (  TAO_SCIOP_Protocol_Properties &protocol_properties  ACE_ENV_ARG_DECL  )  [virtual]

Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::client_protocol_properties_at_orb_level (  TAO_DIOP_Protocol_Properties &protocol_properties  ACE_ENV_ARG_DECL  )  [virtual]

Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::client_protocol_properties_at_orb_level (  TAO_SHMIOP_Protocol_Properties &protocol_properties  ACE_ENV_ARG_DECL  )  [virtual]

Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::client_protocol_properties_at_orb_level (  TAO_UIOP_Protocol_Properties &protocol_properties  ACE_ENV_ARG_DECL  )  [virtual]

Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::client_protocol_properties_at_orb_level (  TAO_IIOP_Protocol_Properties &protocol_properties  ACE_ENV_ARG_DECL  )  [virtual]

Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::extract_protocol_properties (  TAO_SCIOP_Protocol_Properties &  to, RTCORBA::ProtocolProperties_ptr from  ACE_ENV_ARG_DECL )  [protected]

void TAO_RT_Protocols_Hooks::extract_protocol_properties (  TAO_DIOP_Protocol_Properties &  to, RTCORBA::ProtocolProperties_ptr from  ACE_ENV_ARG_DECL )  [protected]

void TAO_RT_Protocols_Hooks::extract_protocol_properties (  TAO_SHMIOP_Protocol_Properties &  to, RTCORBA::ProtocolProperties_ptr from  ACE_ENV_ARG_DECL )  [protected]

void TAO_RT_Protocols_Hooks::extract_protocol_properties (  TAO_UIOP_Protocol_Properties &  to, RTCORBA::ProtocolProperties_ptr from  ACE_ENV_ARG_DECL )  [protected]

void TAO_RT_Protocols_Hooks::extract_protocol_properties (  TAO_IIOP_Protocol_Properties &  to, RTCORBA::ProtocolProperties_ptr from  ACE_ENV_ARG_DECL )  [protected]

CORBA::Long TAO_RT_Protocols_Hooks::get_dscp_codepoint (  void   )  [virtual]

Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::get_selector_bands_policy_hook (  CORBA::Policy *  bands_policy, CORBA::Short  priority, CORBA::Short &  min_priority, CORBA::Short &  max_priority, int &  in_range )  [virtual]

Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::get_selector_hook (  CORBA::Policy *  model_policy, CORBA::Boolean &  is_client_propagated, CORBA::Short &  server_priority )  [virtual]

Implements TAO_Protocols_Hooks.

int TAO_RT_Protocols_Hooks::get_thread_CORBA_and_native_priority (  CORBA::Short &  , CORBA::Short &  ACE_ENV_ARG_DECL )  [virtual]

Accessor and modifier to the current thread priority, used to implement the RTCORBA::Current interface, but it is faster for some critical components. Implements TAO_Protocols_Hooks.

int TAO_RT_Protocols_Hooks::get_thread_CORBA_priority (  CORBA::Short &  ACE_ENV_ARG_DECL  )  [virtual]

Accessor and modifier to the current thread priority, used to implement the RTCORBA::Current interface, but it is faster for some critical components. Implements TAO_Protocols_Hooks.

int TAO_RT_Protocols_Hooks::get_thread_native_priority (  CORBA::Short &  ACE_ENV_ARG_DECL  )  [virtual]

Accessor and modifier to the current thread priority, used to implement the RTCORBA::Current interface, but it is faster for some critical components. Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::init_hooks (  TAO_ORB_Core *orb_core  ACE_ENV_ARG_DECL  )  [virtual]

Initialize the protocols hooks instance. Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::rt_service_context (  TAO_Stub *  stub, TAO_Service_Context &  service_context, CORBA::Boolean restart  ACE_ENV_ARG_DECL )  [virtual]

Implements TAO_Protocols_Hooks.

RTCORBA::ProtocolProperties_ptr TAO_RT_Protocols_Hooks::server_protocol_properties (  IOP::ProfileId  protocol_tag, CORBA::Policy_ptr policy  ACE_ENV_ARG_DECL )  [protected]

RTCORBA::ProtocolProperties_ptr TAO_RT_Protocols_Hooks::server_protocol_properties_at_orb_level (  IOP::ProfileId protocol_tag  ACE_ENV_ARG_DECL  )  [protected]

void TAO_RT_Protocols_Hooks::server_protocol_properties_at_orb_level (  TAO_SCIOP_Protocol_Properties &protocol_properties  ACE_ENV_ARG_DECL  )  [virtual]

Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::server_protocol_properties_at_orb_level (  TAO_DIOP_Protocol_Properties &protocol_properties  ACE_ENV_ARG_DECL  )  [virtual]

Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::server_protocol_properties_at_orb_level (  TAO_SHMIOP_Protocol_Properties &protocol_properties  ACE_ENV_ARG_DECL  )  [virtual]

Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::server_protocol_properties_at_orb_level (  TAO_UIOP_Protocol_Properties &protocol_properties  ACE_ENV_ARG_DECL  )  [virtual]

Implements TAO_Protocols_Hooks.

void TAO_RT_Protocols_Hooks::server_protocol_properties_at_orb_level (  TAO_IIOP_Protocol_Properties &protocol_properties  ACE_ENV_ARG_DECL  )  [virtual]

Implements TAO_Protocols_Hooks.

CORBA::Boolean TAO_RT_Protocols_Hooks::set_client_network_priority (  IOP::ProfileId  protocol_tag, TAO_Stub *stub  ACE_ENV_ARG_DECL )  [virtual]

Implements TAO_Protocols_Hooks.

CORBA::Boolean TAO_RT_Protocols_Hooks::set_network_priority (  IOP::ProfileId  protocol_tag, RTCORBA::ProtocolProperties_ptr protocol_properties  ACE_ENV_ARG_DECL )  [protected]

CORBA::Boolean TAO_RT_Protocols_Hooks::set_server_network_priority (  IOP::ProfileId  protocol_tag, CORBA::Policy *policy  ACE_ENV_ARG_DECL )  [virtual]

Implements TAO_Protocols_Hooks.

int TAO_RT_Protocols_Hooks::set_thread_CORBA_priority (  CORBA::Short  ACE_ENV_ARG_DECL  )  [virtual]

Accessor and modifier to the current thread priority, used to implement the RTCORBA::Current interface, but it is faster for some critical components. Implements TAO_Protocols_Hooks.

int TAO_RT_Protocols_Hooks::set_thread_native_priority (  CORBA::Short  ACE_ENV_ARG_DECL  )  [virtual]

Accessor and modifier to the current thread priority, used to implement the RTCORBA::Current interface, but it is faster for some critical components. Implements TAO_Protocols_Hooks.

---

Member Data Documentation

RTCORBA::Current_var TAO_RT_Protocols_Hooks::current_ [protected]

TAO_Priority_Mapping_Manager_var TAO_RT_Protocols_Hooks::mapping_manager_ [protected]

TAO_Network_Priority_Mapping_Manager_var TAO_RT_Protocols_Hooks::network_mapping_manager_ [protected]

TAO_ORB_Core* TAO_RT_Protocols_Hooks::orb_core_ [protected]

---

The documentation for this class was generated from the following files:

• RT_Protocols_Hooks.h
• RT_Protocols_Hooks.cpp

---
