TAO_RT_ORBInitializer Class Reference

RTCORBA ORB initializer. More...

#include <RT_ORBInitializer.h>

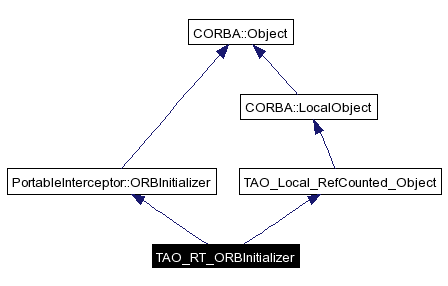

Inheritance diagram for TAO_RT_ORBInitializer:

Inheritance graph
[legend]

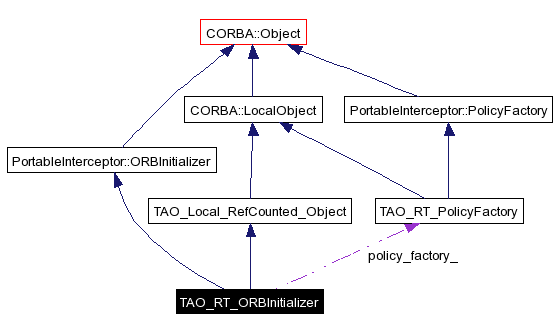

Collaboration diagram for TAO_RT_ORBInitializer:

Collaboration graph
[legend]
List of all members.

Public Types

enum  { TAO_PRIORITY_MAPPING_CONTINUOUS, TAO_PRIORITY_MAPPING_LINEAR, TAO_PRIORITY_MAPPING_DIRECT }
 Priority mapping types. More...
enum  { TAO_NETWORK_PRIORITY_MAPPING_LINEAR }

Public Member Functions

 TAO_RT_ORBInitializer (int priority_mapping_type, int network_priority_mapping_type, int ace_sched_policy, long sched_policy, long scope_policy)
virtual void pre_init (PortableInterceptor::ORBInitInfo_ptr info ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual void post_init (PortableInterceptor::ORBInitInfo_ptr info ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)

Private Member Functions

void register_policy_factories (PortableInterceptor::ORBInitInfo_ptr info ACE_ENV_ARG_DECL)
 Register RTCORBA policy factories.

Private Attributes

TAO_RT_PolicyFactory policy_factory_
int priority_mapping_type_
 Priority mapping type.
int network_priority_mapping_type_
 Network Priority mapping type.
int ace_sched_policy_
 Scheduling policy.
long sched_policy_
 Scheduling policy flag.
long scope_policy_
 Scheduling scope flag.

Detailed Description

RTCORBA ORB initializer.


Member Enumeration Documentation

anonymous enum


Priority mapping types.

Enumeration values:
TAO_PRIORITY_MAPPING_CONTINUOUS
TAO_PRIORITY_MAPPING_LINEAR
TAO_PRIORITY_MAPPING_DIRECT

anonymous enum


Enumeration values:
TAO_NETWORK_PRIORITY_MAPPING_LINEAR


Constructor & Destructor Documentation

TAO_RT_ORBInitializer::TAO_RT_ORBInitializer int  priority_mapping_type,
int  network_priority_mapping_type,
int  ace_sched_policy,
long  sched_policy,
long  scope_policy



Member Function Documentation

void TAO_RT_ORBInitializer::post_init PortableInterceptor::ORBInitInfo_ptr info  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException) [virtual]


void TAO_RT_ORBInitializer::pre_init PortableInterceptor::ORBInitInfo_ptr info  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException) [virtual]


void TAO_RT_ORBInitializer::register_policy_factories PortableInterceptor::ORBInitInfo_ptr info  ACE_ENV_ARG_DECL  )  [private]


Register RTCORBA policy factories.


Member Data Documentation

int TAO_RT_ORBInitializer::ace_sched_policy_ [private]


Scheduling policy.

Scheduling policy specified by the user through the -ORBSchedPolicy option. This value is typically used by functions like ACE_OS::thr_setprio() and ACE_Sched_Params::priority_min(). Legal values are ACE_SCHED_RR, ACE_SCHED_FIFO, and ACE_SCHED_OTHER.

int TAO_RT_ORBInitializer::network_priority_mapping_type_ [private]


Network Priority mapping type.

TAO_RT_PolicyFactory TAO_RT_ORBInitializer::policy_factory_ [private]


Instance of the RTCORBA policy factory. The RTCORBA policy factory is stateless and reentrant, so share a single instance between all ORBs.

int TAO_RT_ORBInitializer::priority_mapping_type_ [private]


Priority mapping type.

long TAO_RT_ORBInitializer::sched_policy_ [private]


Scheduling policy flag.

Scheduling policy specified by the user through the -ORBSchedPolicy option. This value is typically used by ACE thread creation functions. Legal values are THR_SCHED_RR, THR_SCHED_FIFO, and THR_SCHED_DEFAULT.

long TAO_RT_ORBInitializer::scope_policy_ [private]


Scheduling scope flag.

Scheduling policy specified by the user through the -ORBScopePolicy option. This value is typically used by ACE thread creation functions. Legal values are THR_SCOPE_SYSTEM and THR_SCOPE_PROCESS.


The documentation for this class was generated from the following files:
Generated on Sun May 15 13:18:01 2005 for TAO_RTCORBA by  doxygen 1.3.9.1
