TAO_Exclusive_TMS Class Reference

#include <Exclusive_TMS.h>

Inheritance diagram for TAO_Exclusive_TMS:

Inheritance graph

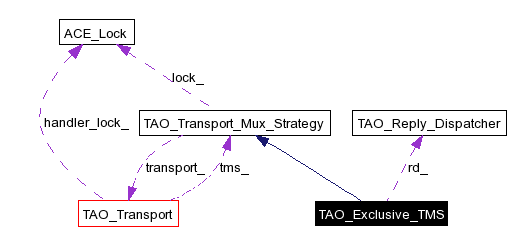

Collaboration diagram for TAO_Exclusive_TMS:

Collaboration graph
List of all members.

Public Member Functions

 TAO_Exclusive_TMS (TAO_Transport *transport)
virtual ~TAO_Exclusive_TMS (void)
The TAO_Transport_Mux_Strategy overrided methods
Please read the documentation in the TAO_Transport_Mux_Strategy class for details.

virtual CORBA::ULong request_id (void)
virtual int bind_dispatcher (CORBA::ULong request_id, TAO_Reply_Dispatcher *rh)
virtual int unbind_dispatcher (CORBA::ULong request_id)
virtual int dispatch_reply (TAO_Pluggable_Reply_Params &params)
virtual bool idle_after_send (void)
virtual bool idle_after_reply (void)
virtual void connection_closed (void)

Protected Attributes

CORBA::ULong request_id_generator_
int has_request_
CORBA::ULong request_id_
 Request id for the current request.
 Reply Dispatcher corresponding to the request.

Detailed Description

Using this strategy only one request can be pending at a time in a connection. This improves performance because the client does not have to demux the reply, and there is less need for synchronization. On the other hand, it does not scale well when you have multiple client threads or asynchronous messaging.

Constructor & Destructor Documentation

TAO_Exclusive_TMS::TAO_Exclusive_TMS TAO_Transport transport  )


TAO_Exclusive_TMS::~TAO_Exclusive_TMS void   )  [virtual]


Member Function Documentation

int TAO_Exclusive_TMS::bind_dispatcher CORBA::ULong  request_id,
TAO_Reply_Dispatcher rh

Bind the dispatcher with the request id. Commonalities in the derived class implementations is kept here.

Implements TAO_Transport_Mux_Strategy.

void TAO_Exclusive_TMS::connection_closed void   )  [virtual]

The transport object has closed the connection, inform all Reply dispatchers and waiting strategies.

Implements TAO_Transport_Mux_Strategy.

int TAO_Exclusive_TMS::dispatch_reply TAO_Pluggable_Reply_Params params  )  [virtual]

Dispatch the reply for <request_id>, cleanup any resources allocated for that request.

Implements TAO_Transport_Mux_Strategy.

bool TAO_Exclusive_TMS::idle_after_reply void   )  [virtual]

Request is sent and the reply is received. Idle the transport now. The return value indicates whether idling was successful or not.

Implements TAO_Transport_Mux_Strategy.

bool TAO_Exclusive_TMS::idle_after_send void   )  [virtual]

Request has been just sent, but the reply is not received. Idle the transport now. The return value indicates whether idling was successful or not.

Implements TAO_Transport_Mux_Strategy.

CORBA::ULong TAO_Exclusive_TMS::request_id void   )  [virtual]

Generate and return an unique request id for the current invocation.

Implements TAO_Transport_Mux_Strategy.

int TAO_Exclusive_TMS::unbind_dispatcher CORBA::ULong  request_id  )  [virtual]

Unbind the dispatcher, the client is no longer waiting for the request, for example, because the request timedout. The strategy can (must) cleanup any resources associated with the request. A later reply for that request should be ignored.

Implements TAO_Transport_Mux_Strategy.

Member Data Documentation

int TAO_Exclusive_TMS::has_request_ [protected]

If 0 then the request id and reply dispatcher below are meaningless

TAO_Reply_Dispatcher* TAO_Exclusive_TMS::rd_ [protected]

Reply Dispatcher corresponding to the request.

CORBA::ULong TAO_Exclusive_TMS::request_id_ [protected]

Request id for the current request.

CORBA::ULong TAO_Exclusive_TMS::request_id_generator_ [protected]

Used to generate a different request_id on each call to request_id().

The documentation for this class was generated from the following files:
Generated on Sun May 15 13:09:52 2005 for TAO by  doxygen
