TAO_Connect_Strategy Class Reference

Define the interface for the connect strategy, i.e. the algorithm that controls how does the ORB establishes remote connections. More...

#include <Connect_Strategy.h>

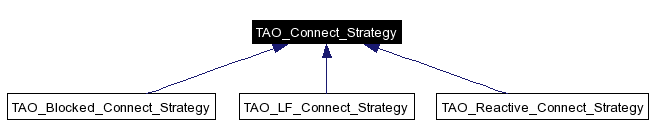

Inheritance diagram for TAO_Connect_Strategy:

Inheritance graph
[legend]
Collaboration diagram for TAO_Connect_Strategy:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_Connect_Strategy (TAO_ORB_Core *orb)
 Constructor.
virtual ~TAO_Connect_Strategy (void)
 Destructor.
virtual void synch_options (ACE_Time_Value *val, ACE_Synch_Options &opt)=0
 Obtain the synch options that can be passed to ACE_Connector.
virtual int wait (TAO_Connection_Handler *ch, ACE_Time_Value *val)=0
 Wait for the connection to be completed till a timeout occurs.
virtual int wait (TAO_Transport *t, ACE_Time_Value *val)=0

Protected Attributes

TAO_ORB_Coreorb_core_
 Cached copy of the ORB core pointer.

Detailed Description

Define the interface for the connect strategy, i.e. the algorithm that controls how does the ORB establishes remote connections.

The thread that establishes remote connections can either make a blocking or a non-blocking connect. The strategy to wait for the connection completion can also be different.

This strategy controls how does the ORB schedules and waits for connection completion.


Constructor & Destructor Documentation

TAO_Connect_Strategy::TAO_Connect_Strategy TAO_ORB_Core orb  )


Constructor.

TAO_Connect_Strategy::~TAO_Connect_Strategy void   )  [virtual]


Destructor.


Member Function Documentation

virtual void TAO_Connect_Strategy::synch_options ACE_Time_Value val,
ACE_Synch_Options opt
[pure virtual]


Obtain the synch options that can be passed to ACE_Connector.

Implemented in TAO_Blocked_Connect_Strategy, TAO_LF_Connect_Strategy, and TAO_Reactive_Connect_Strategy.

virtual int TAO_Connect_Strategy::wait TAO_Transport t,
ACE_Time_Value val
[pure virtual]


Implemented in TAO_Blocked_Connect_Strategy, TAO_LF_Connect_Strategy, and TAO_Reactive_Connect_Strategy.

virtual int TAO_Connect_Strategy::wait TAO_Connection_Handler ch,
ACE_Time_Value val
[pure virtual]


Wait for the connection to be completed till a timeout occurs.

Implemented in TAO_Blocked_Connect_Strategy, TAO_LF_Connect_Strategy, and TAO_Reactive_Connect_Strategy.


Member Data Documentation

TAO_ORB_Core* TAO_Connect_Strategy::orb_core_ [protected]


Cached copy of the ORB core pointer.


The documentation for this class was generated from the following files:
Generated on Sun May 15 13:09:42 2005 for TAO by  doxygen 1.3.9.1
