TAO_Asynch_Reply_Dispatcher_Base Class Reference

Base class for TAO_Asynch_Reply_Dispatcher and TAO_DII_Deferred_Reply_Dispatcher. More...

#include <Asynch_Reply_Dispatcher_Base.h>

Inheritance diagram for TAO_Asynch_Reply_Dispatcher_Base:

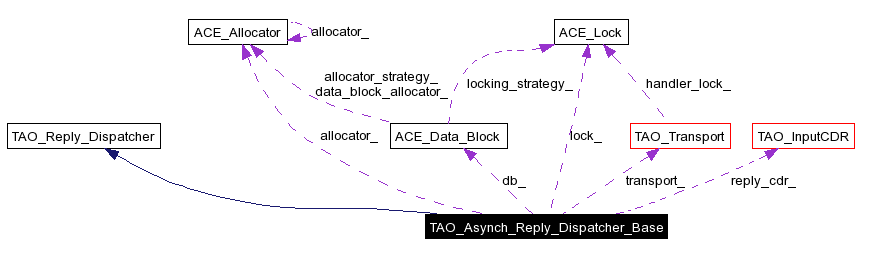

[legend]Collaboration diagram for TAO_Asynch_Reply_Dispatcher_Base:

[legend]List of all members.

Public Member Functions
	TAO_Asynch_Reply_Dispatcher_Base (TAO_ORB_Core *orb_core, ACE_Allocator *allocator=0)
	Default constructor.
void	transport (TAO_Transport *t)
	Sets the transport for this invocation.
virtual void	reply_timed_out (void)=0
	Inform that the reply timed out.
virtual long	schedule_timer (CORBA::ULong, const ACE_Time_Value &ACE_ENV_ARG_DECL)=0
	Install the timeout handler.
bool	try_dispatch_reply (void)
	A helper method that can be used by the subclasses.
The Reply Dispatcher methods
virtual int	dispatch_reply (TAO_Pluggable_Reply_Params &)=0
virtual void	connection_closed (void)=0
Mutators for refcount
long	incr_refcount (void)
long	decr_refcount (void)
Protected Member Functions
virtual	~TAO_Asynch_Reply_Dispatcher_Base (void)
	Destructor.
Protected Attributes
IOP::ServiceContextList	reply_service_info_
	The service context list.
char	buf_ [ACE_CDR::DEFAULT_BUFSIZE]
	The buffer that is used to initialise the data block.
ACE_Data_Block	db_
TAO_InputCDR	reply_cdr_
TAO_Transport *	transport_
	This invocation is using this transport, may change...
Private Attributes
ACE_Lock *	lock_
	Lock to protect refcount and is_reply_dispatched_ flag.
long	refcount_
	Refcount paraphernalia for this class.
bool	is_reply_dispatched_
	Has the reply been dispatched?
ACE_Allocator *	allocator_

---

Detailed Description

Base class for TAO_Asynch_Reply_Dispatcher and TAO_DII_Deferred_Reply_Dispatcher.

---

Constructor & Destructor Documentation

TAO_Asynch_Reply_Dispatcher_Base::TAO_Asynch_Reply_Dispatcher_Base (  TAO_ORB_Core *  orb_core, ACE_Allocator *  allocator = 0 )

Default constructor.

TAO_Asynch_Reply_Dispatcher_Base::~TAO_Asynch_Reply_Dispatcher_Base (  void   )  [protected, virtual]

Destructor.

---

Member Function Documentation

void TAO_Asynch_Reply_Dispatcher_Base::connection_closed (  void   )  [pure virtual]

The used for the pending reply has been closed. No reply is expected. @ TODO: If the connection was closed due to a CloseConnection message then we could re-issue the request instead of raising the exception, it would a matter of simply adding a boolean argument to this function. Implements TAO_Reply_Dispatcher.

long TAO_Asynch_Reply_Dispatcher_Base::decr_refcount (  void   )

int TAO_Asynch_Reply_Dispatcher_Base::dispatch_reply (  TAO_Pluggable_Reply_Params &   )  [pure virtual]

Dispatch the reply. Return 1 on sucess, -1 on error. @ TODO Pluggable Messaging: this method has too many arguments, the "Right Thing"[tm] is for the Transport Object to create a "ClientReply" that encapsulates all we need to process a reply. Naturally it is possible that different messaging protocols implement different variants of such ClientReply class. Implements TAO_Reply_Dispatcher.

long TAO_Asynch_Reply_Dispatcher_Base::incr_refcount (  void   )

void TAO_Asynch_Reply_Dispatcher_Base::reply_timed_out (  void   )  [pure virtual]

Inform that the reply timed out.

virtual long TAO_Asynch_Reply_Dispatcher_Base::schedule_timer (  CORBA::ULong  , const ACE_Time_Value &  ACE_ENV_ARG_DECL )  [pure virtual]

Install the timeout handler.

void TAO_Asynch_Reply_Dispatcher_Base::transport (  TAO_Transport *  t  )

Sets the transport for this invocation.

bool TAO_Asynch_Reply_Dispatcher_Base::try_dispatch_reply (  void   )

A helper method that can be used by the subclasses. The semantics of this helper method needs careful attention. A call to this method will do the following If the reply has already been dispatched, the return value will be false to signify not to try. If the reply has not been dispatched, this method will set the flag to be true and return a true value to signify that the caller thread can go ahead and dispatch reply. Why are we clumping everything in one method. Answer is we need atomicity?

---

Member Data Documentation

ACE_Allocator* TAO_Asynch_Reply_Dispatcher_Base::allocator_ [private]

Allocator that was used to allocate this reply dispatcher. In case of zero we come from the heap.

char TAO_Asynch_Reply_Dispatcher_Base::buf_[ACE_CDR::DEFAULT_BUFSIZE] [protected]

The buffer that is used to initialise the data block.

ACE_Data_Block TAO_Asynch_Reply_Dispatcher_Base::db_ [protected]

Datablock that is created on the stack to initialise the CDR stream underneath.

bool TAO_Asynch_Reply_Dispatcher_Base::is_reply_dispatched_ [private]

Has the reply been dispatched?

ACE_Lock* TAO_Asynch_Reply_Dispatcher_Base::lock_ [private]

Lock to protect refcount and is_reply_dispatched_ flag.

long TAO_Asynch_Reply_Dispatcher_Base::refcount_ [private]

Refcount paraphernalia for this class.

TAO_InputCDR TAO_Asynch_Reply_Dispatcher_Base::reply_cdr_ [protected]

CDR stream which has the reply information that needs to be demarshalled by the stubs

IOP::ServiceContextList TAO_Asynch_Reply_Dispatcher_Base::reply_service_info_ [protected]

The service context list. Note, that this is not a reference as in the synchronous case. We own the reply_service_info because our TAO_Asynch_Invocation or TAO_DII_Deferred_Invocation will go out of scope before we are done.

TAO_Transport* TAO_Asynch_Reply_Dispatcher_Base::transport_ [protected]

This invocation is using this transport, may change...

---

The documentation for this class was generated from the following files:

• Asynch_Reply_Dispatcher_Base.h
• Asynch_Reply_Dispatcher_Base.cpp

---
