ACE_POSIX_Asynch_Timer Class Reference

This class is posted to the completion port when a timer expires. When the <complete method=""> of this object is called, the <handler>'s <handle_timeout> method will be called. More...

#include <POSIX_Proactor.h>

Inheritance diagram for ACE_POSIX_Asynch_Timer:

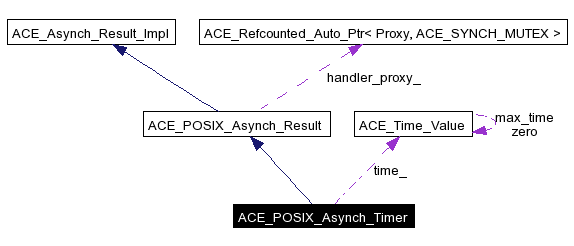

[legend]Collaboration diagram for ACE_POSIX_Asynch_Timer:

[legend]List of all members.

Protected Member Functions
	ACE_POSIX_Asynch_Timer (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, const ACE_Time_Value &tv, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)
	Constructor.
virtual	~ACE_POSIX_Asynch_Timer (void)
	Destructor.
virtual void	complete (size_t bytes_transferred, int success, const void *completion_key, u_long error=0)
	This method calls the <handler>'s handle_timeout method.
Protected Attributes
ACE_Time_Value	time_
	Time value requested by caller.
Friends
class	ACE_POSIX_Proactor

---

Detailed Description

This class is posted to the completion port when a timer expires. When the <complete method=""> of this object is called, the <handler>'s <handle_timeout> method will be called.

---

Constructor & Destructor Documentation

ACE_POSIX_Asynch_Timer::ACE_POSIX_Asynch_Timer (  const ACE_Handler::Proxy_Ptr &  handler_proxy, const void *  act, const ACE_Time_Value &  tv, ACE_HANDLE  event = ACE_INVALID_HANDLE, int  priority = 0, int  signal_number = ACE_SIGRTMIN )  [protected]

Constructor.

virtual ACE_POSIX_Asynch_Timer::~ACE_POSIX_Asynch_Timer (  void   )  [inline, protected, virtual]

Destructor.

---

Member Function Documentation

void ACE_POSIX_Asynch_Timer::complete (  size_t  bytes_transferred, int  success, const void *  completion_key, u_long  error = 0 )  [protected, virtual]

This method calls the <handler>'s handle_timeout method. Implements ACE_Asynch_Result_Impl.

---

Friends And Related Function Documentation

friend class ACE_POSIX_Proactor [friend]

The factory method for this class is with the POSIX_Proactor class.

---

Member Data Documentation

ACE_Time_Value ACE_POSIX_Asynch_Timer::time_ [protected]

Time value requested by caller.

---

The documentation for this class was generated from the following files:

• POSIX_Proactor.h
• POSIX_Proactor.cpp

---
