ACE_Map< KEY, VALUE > Class Template Reference

Defines a map interface. More...

#include <Map_T.h>

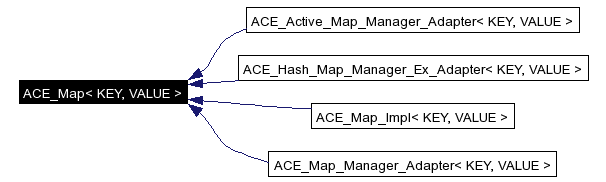

Inheritance diagram for ACE_Map< KEY, VALUE >:

Inheritance graph
[legend]
List of all members.

Public Types

typedef KEY key_type
typedef VALUE mapped_type
typedef ACE_Reference_Pair<
const KEY, VALUE >
value_type
typedef ACE_Iterator< value_typeiterator
typedef ACE_Reverse_Iterator<
value_type
reverse_iterator
typedef ACE_Iterator_Impl<
value_type
iterator_implementation
typedef ACE_Reverse_Iterator_Impl<
value_type
reverse_iterator_implementation

Public Member Functions

virtual ~ACE_Map (void)
 Close down and release dynamically allocated resources.
virtual int open (size_t length=ACE_DEFAULT_MAP_SIZE, ACE_Allocator *alloc=0)=0
 Initialize a <map> with size <length>.
virtual int close (void)=0
 Close down a <map> and release dynamically allocated resources.
virtual int bind (const KEY &key, const VALUE &value)=0
virtual int bind_modify_key (const VALUE &value, KEY &key)=0
virtual int create_key (KEY &key)=0
virtual int bind_create_key (const VALUE &value, KEY &key)=0
virtual int bind_create_key (const VALUE &value)=0
virtual int recover_key (const KEY &modified_key, KEY &original_key)=0
virtual int rebind (const KEY &key, const VALUE &value)=0
virtual int rebind (const KEY &key, const VALUE &value, VALUE &old_value)=0
virtual int rebind (const KEY &key, const VALUE &value, KEY &old_key, VALUE &old_value)=0
virtual int trybind (const KEY &key, VALUE &value)=0
virtual int find (const KEY &key, VALUE &value)=0
 Locate <value> associated with <key>.
virtual int find (const KEY &key)=0
 Is <key> in the map?
virtual int unbind (const KEY &key)=0
 Remove <key> from the map.
virtual int unbind (const KEY &key, VALUE &value)=0
virtual size_t current_size (void) const =0
 Return the current size of the map.
virtual size_t total_size (void) const =0
 Return the total size of the map.
virtual void dump (void) const =0
 Dump the state of an object.
iterator begin (void)
 Return forward iterator.
iterator end (void)
reverse_iterator rbegin (void)
 Return reverse iterator.
reverse_iterator rend (void)

Protected Member Functions

 ACE_Map (void)
virtual ACE_Iterator_Impl<
ACE_Reference_Pair< const
KEY, VALUE > > *
begin_impl (void)=0
 Return forward iterator.
virtual ACE_Iterator_Impl<
ACE_Reference_Pair< const
KEY, VALUE > > *
end_impl (void)=0
virtual ACE_Reverse_Iterator_Impl<
ACE_Reference_Pair< const
KEY, VALUE > > *
rbegin_impl (void)=0
 Return reverse iterator.
virtual ACE_Reverse_Iterator_Impl<
ACE_Reference_Pair< const
KEY, VALUE > > *
rend_impl (void)=0

Private Member Functions

void operator= (const ACE_Map< KEY, VALUE > &)
 ACE_Map (const ACE_Map< KEY, VALUE > &)

Detailed Description

template<class KEY, class VALUE>
class ACE_Map< KEY, VALUE >

Defines a map interface.

Implementation to be provided by subclasses.


Member Typedef Documentation

template<class KEY, class VALUE>
typedef ACE_Iterator<value_type> ACE_Map< KEY, VALUE >::iterator


template<class KEY, class VALUE>
typedef ACE_Iterator_Impl<value_type> ACE_Map< KEY, VALUE >::iterator_implementation


template<class KEY, class VALUE>
typedef KEY ACE_Map< KEY, VALUE >::key_type


template<class KEY, class VALUE>
typedef VALUE ACE_Map< KEY, VALUE >::mapped_type


template<class KEY, class VALUE>
typedef ACE_Reverse_Iterator<value_type> ACE_Map< KEY, VALUE >::reverse_iterator


template<class KEY, class VALUE>
typedef ACE_Reverse_Iterator_Impl<value_type> ACE_Map< KEY, VALUE >::reverse_iterator_implementation


template<class KEY, class VALUE>
typedef ACE_Reference_Pair<const KEY, VALUE> ACE_Map< KEY, VALUE >::value_type



Constructor & Destructor Documentation

template<class KEY, class VALUE>
ACE_INLINE ACE_Map< KEY, VALUE >::~ACE_Map void   )  [virtual]


Close down and release dynamically allocated resources.

template<class KEY, class VALUE>
ACE_INLINE ACE_Map< KEY, VALUE >::ACE_Map void   )  [protected]


template<class KEY, class VALUE>
ACE_Map< KEY, VALUE >::ACE_Map const ACE_Map< KEY, VALUE > &   )  [private]



Member Function Documentation

template<class KEY, class VALUE>
ACE_INLINE ACE_Iterator< ACE_Reference_Pair< const KEY, VALUE > > ACE_Map< KEY, VALUE >::begin void   )


Return forward iterator.

template<class KEY, class VALUE>
virtual ACE_Iterator_Impl<ACE_Reference_Pair<const KEY, VALUE> >* ACE_Map< KEY, VALUE >::begin_impl void   )  [protected, pure virtual]


Return forward iterator.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::bind const KEY &  key,
const VALUE &  value
[pure virtual]


Add <key>/<value> pair to the map. If <key> is already in the map then no changes are made and 1 is returned. Returns 0 on a successful addition. This function fails for maps that do not allow user specified keys. <key> is an "in" parameter.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::bind_create_key const VALUE &  value  )  [pure virtual]


Add <value> to the map. The user does not care about the corresponding key produced by the Map. For maps that do not naturally produce keys, the map adapters will use the <key_generator> class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::bind_create_key const VALUE &  value,
KEY &  key
[pure virtual]


Add <value> to the map, and the corresponding key produced by the Map is returned through <key> which is an "out" parameter. For maps that do not naturally produce keys, the map adapters will use the <key_generator> class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::bind_modify_key const VALUE &  value,
KEY &  key
[pure virtual]


Add <key>/<value> pair to the map. <key> is an "inout" parameter and maybe modified/extended by the map to add additional information. To recover original key, call the <recover_key> method.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::close void   )  [pure virtual]


Close down a <map> and release dynamically allocated resources.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::create_key KEY &  key  )  [pure virtual]


Produce a key and return it through <key> which is an "out" parameter. For maps that do not naturally produce keys, the map adapters will use the <key_generator> class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual size_t ACE_Map< KEY, VALUE >::current_size void   )  const [pure virtual]


Return the current size of the map.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual void ACE_Map< KEY, VALUE >::dump void   )  const [pure virtual]


Dump the state of an object.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
ACE_INLINE ACE_Iterator< ACE_Reference_Pair< const KEY, VALUE > > ACE_Map< KEY, VALUE >::end void   )


template<class KEY, class VALUE>
virtual ACE_Iterator_Impl<ACE_Reference_Pair<const KEY, VALUE> >* ACE_Map< KEY, VALUE >::end_impl void   )  [protected, pure virtual]


Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::find const KEY &  key  )  [pure virtual]


Is <key> in the map?

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::find const KEY &  key,
VALUE &  value
[pure virtual]


Locate <value> associated with <key>.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::open size_t  length = ACE_DEFAULT_MAP_SIZE,
ACE_Allocator alloc = 0
[pure virtual]


Initialize a <map> with size <length>.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
void ACE_Map< KEY, VALUE >::operator= const ACE_Map< KEY, VALUE > &   )  [private]


template<class KEY, class VALUE>
ACE_INLINE ACE_Reverse_Iterator< ACE_Reference_Pair< const KEY, VALUE > > ACE_Map< KEY, VALUE >::rbegin void   )


Return reverse iterator.

template<class KEY, class VALUE>
virtual ACE_Reverse_Iterator_Impl<ACE_Reference_Pair<const KEY, VALUE> >* ACE_Map< KEY, VALUE >::rbegin_impl void   )  [protected, pure virtual]


Return reverse iterator.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::rebind const KEY &  key,
const VALUE &  value,
KEY &  old_key,
VALUE &  old_value
[pure virtual]


Reassociate <key> with <value>, storing the old key and value into the "out" parameters <old_key> and <old_value>. The function fails if <key> is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new <key>/<value> association is created.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::rebind const KEY &  key,
const VALUE &  value,
VALUE &  old_value
[pure virtual]


Reassociate <key> with <value>, storing the old value into the "out" parameter <old_value>. The function fails if <key> is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new <key>/<value> association is created.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::rebind const KEY &  key,
const VALUE &  value
[pure virtual]


Reassociate <key> with <value>. The function fails if <key> is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new <key>/<value> association is created.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::recover_key const KEY &  modified_key,
KEY &  original_key
[pure virtual]


Recovers the original key potentially modified by the map during <bind_modify_key>.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
ACE_INLINE ACE_Reverse_Iterator< ACE_Reference_Pair< const KEY, VALUE > > ACE_Map< KEY, VALUE >::rend void   )


template<class KEY, class VALUE>
virtual ACE_Reverse_Iterator_Impl<ACE_Reference_Pair<const KEY, VALUE> >* ACE_Map< KEY, VALUE >::rend_impl void   )  [protected, pure virtual]


Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual size_t ACE_Map< KEY, VALUE >::total_size void   )  const [pure virtual]


Return the total size of the map.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::trybind const KEY &  key,
VALUE &  value
[pure virtual]


Associate <key> with <value> if and only if <key> is not in the map. If <key> is already in the map, then the <value> parameter is overwritten with the existing value in the map. Returns 0 if a new <key>/<value> association is created. Returns 1 if an attempt is made to bind an existing entry. This function fails for maps that do not allow user specified keys.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::unbind const KEY &  key,
VALUE &  value
[pure virtual]


Remove <key> from the map, and return the <value> associated with <key>.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.

template<class KEY, class VALUE>
virtual int ACE_Map< KEY, VALUE >::unbind const KEY &  key  )  [pure virtual]


Remove <key> from the map.

Implemented in ACE_Map_Impl< KEY, VALUE, IMPLEMENTATION, ITERATOR, REVERSE_ITERATOR, ENTRY >, ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >, ACE_Hash_Map_Manager_Ex_Adapter< KEY, VALUE, HASH_KEY, COMPARE_KEYS, KEY_GENERATOR >, and ACE_Map_Manager_Adapter< KEY, VALUE, KEY_GENERATOR >.


The documentation for this class was generated from the following files:
