ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX > Class Template Reference

A connection strategy which caches connections to peers (represented by <svc_handler> instances), thereby allowing subsequent re-use of unused, but available, connections. More...

#include <Cached_Connect_Strategy_T.h>

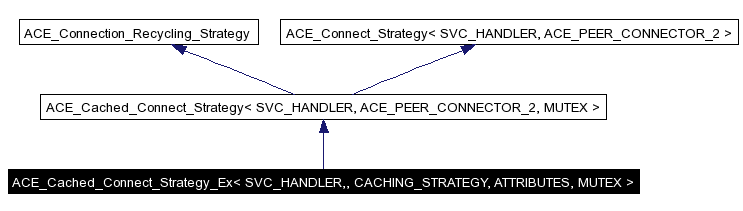

Inheritance diagram for ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >:

Inheritance graph
[legend]

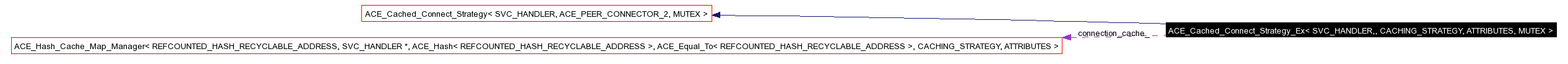

Collaboration diagram for ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Refcounted_Hash_Recyclable<
ACE_PEER_CONNECTOR_ADDR >
REFCOUNTED_HASH_RECYCLABLE_ADDRESS
typedef ACE_Hash_Cache_Map_Manager<
REFCOUNTED_HASH_RECYCLABLE_ADDRESS,
SVC_HANDLER *, ACE_Hash<
REFCOUNTED_HASH_RECYCLABLE_ADDRESS >,
ACE_Equal_To< REFCOUNTED_HASH_RECYCLABLE_ADDRESS >,
CACHING_STRATEGY, ATTRIBUTES >
CONNECTION_CACHE
typedef ACE_TYPENAME CONNECTION_CACHE::CACHE_ENTRY CONNECTION_CACHE_ENTRY
typedef ACE_TYPENAME CONNECTION_CACHE::key_type KEY
typedef ACE_TYPENAME CONNECTION_CACHE::mapped_type VALUE
typedef ACE_Recyclable_Handler_Cleanup_Strategy<
REFCOUNTED_HASH_RECYCLABLE_ADDRESS,
ACE_Pair< SVC_HANDLER *,
ATTRIBUTES >, ACE_Hash_Map_Manager_Ex<
REFCOUNTED_HASH_RECYCLABLE_ADDRESS,
ACE_Pair< SVC_HANDLER *,
ATTRIBUTES >, ACE_Hash< REFCOUNTED_HASH_RECYCLABLE_ADDRESS >,
ACE_Equal_To< REFCOUNTED_HASH_RECYCLABLE_ADDRESS >,
MUTEX > >
CLEANUP_STRATEGY
typedef ACE_Cached_Connect_Strategy<
SVC_HANDLER, ACE_PEER_CONNECTOR_2,
MUTEX >
CCSBASE

Public Member Functions

 ACE_Cached_Connect_Strategy_Ex (CACHING_STRATEGY &caching_s, ACE_Creation_Strategy< SVC_HANDLER > *cre_s=0, ACE_Concurrency_Strategy< SVC_HANDLER > *con_s=0, ACE_Recycling_Strategy< SVC_HANDLER > *rec_s=0, MUTEX *lock=0, int delete_lock=0)
 Constructor.
virtual ~ACE_Cached_Connect_Strategy_Ex (void)
 Destructor.
virtual int purge_connections (void)
 Explicit purging of connection entries from the connection cache.
virtual int mark_as_closed_i (const void *recycling_act)
void cleanup (void)
CACHING_STRATEGY & caching_strategy (void)

Protected Member Functions

int find (ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR > &search_addr, ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, ACE_Pair< SVC_HANDLER *, ATTRIBUTES > > *&entry)
 Find an idle handle.
virtual int purge_i (const void *recycling_act)
 Remove from cache (non-locking version).
virtual int cache_i (const void *recycling_act)
 Add to cache (non-locking version).
virtual int recycle_state_i (const void *recycling_act, ACE_Recyclable_State new_state)
 Get/Set <recycle_state> (non-locking version).
virtual ACE_Recyclable_State recycle_state_i (const void *recycling_act) const
 Get <recycle_state> (non-locking version).
virtual int cleanup_hint_i (const void *recycling_act, void **act_holder)
 Cleanup hint and reset <*act_holder> to zero if <act_holder != 0>.
int check_hint_i (SVC_HANDLER *&sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value *timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, int reuse_addr, int flags, int perms, ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, ACE_Pair< SVC_HANDLER *, ATTRIBUTES > > *&entry, int &found)
virtual int find_or_create_svc_handler_i (SVC_HANDLER *&sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value *timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, int reuse_addr, int flags, int perms, ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, ACE_Pair< SVC_HANDLER *, ATTRIBUTES > > *&entry, int &found)
virtual int connect_svc_handler_i (SVC_HANDLER *&sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value *timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, int reuse_addr, int flags, int perms, int &found)
virtual int cached_connect (SVC_HANDLER *&sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value *timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, int reuse_addr, int flags, int perms)

Protected Attributes

CONNECTION_CACHE connection_cache_
 Table that maintains the cache of connected <svc_handler>s.

Detailed Description

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
class ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >

A connection strategy which caches connections to peers (represented by <svc_handler> instances), thereby allowing subsequent re-use of unused, but available, connections.

<cached_connect_strategy> is intended to be used as a plug-in connection strategy for <ace_strategy_connector>. It's added value is re-use of established connections and tweaking the role of the cache as per the caching strategy.


Member Typedef Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
typedef ACE_Cached_Connect_Strategy<SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX> ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::CCSBASE


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
typedef ACE_Recyclable_Handler_Cleanup_Strategy<REFCOUNTED_HASH_RECYCLABLE_ADDRESS, ACE_Pair<SVC_HANDLER *, ATTRIBUTES>, ACE_Hash_Map_Manager_Ex<REFCOUNTED_HASH_RECYCLABLE_ADDRESS, ACE_Pair<SVC_HANDLER *, ATTRIBUTES>, ACE_Hash<REFCOUNTED_HASH_RECYCLABLE_ADDRESS>, ACE_Equal_To<REFCOUNTED_HASH_RECYCLABLE_ADDRESS>, MUTEX> > ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::CLEANUP_STRATEGY


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
typedef ACE_Hash_Cache_Map_Manager<REFCOUNTED_HASH_RECYCLABLE_ADDRESS, SVC_HANDLER *, ACE_Hash<REFCOUNTED_HASH_RECYCLABLE_ADDRESS>, ACE_Equal_To<REFCOUNTED_HASH_RECYCLABLE_ADDRESS>, CACHING_STRATEGY, ATTRIBUTES> ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::CONNECTION_CACHE


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
typedef ACE_TYPENAME CONNECTION_CACHE::CACHE_ENTRY ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::CONNECTION_CACHE_ENTRY


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
typedef ACE_TYPENAME CONNECTION_CACHE::key_type ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::KEY


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
typedef ACE_Refcounted_Hash_Recyclable<ACE_PEER_CONNECTOR_ADDR> ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::REFCOUNTED_HASH_RECYCLABLE_ADDRESS


Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

Reimplemented in ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
typedef ACE_TYPENAME CONNECTION_CACHE::mapped_type ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::VALUE



Constructor & Destructor Documentation

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::ACE_Cached_Connect_Strategy_Ex CACHING_STRATEGY &  caching_s,
ACE_Creation_Strategy< SVC_HANDLER > *  cre_s = 0,
ACE_Concurrency_Strategy< SVC_HANDLER > *  con_s = 0,
ACE_Recycling_Strategy< SVC_HANDLER > *  rec_s = 0,
MUTEX *  lock = 0,
int  delete_lock = 0


Constructor.

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::~ACE_Cached_Connect_Strategy_Ex void   )  [virtual]


Destructor.


Member Function Documentation

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
int ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::cache_i const void *  recycling_act  )  [protected, virtual]


Add to cache (non-locking version).

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
int ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::cached_connect SVC_HANDLER *&  sh,
const ACE_PEER_CONNECTOR_ADDR &  remote_addr,
ACE_Time_Value timeout,
const ACE_PEER_CONNECTOR_ADDR &  local_addr,
int  reuse_addr,
int  flags,
int  perms
[protected, virtual]


Connection of the svc_handler with the remote host. This method also encapsulates the connection done with auto_purging under the hood. If the connect failed due to the process running out of file descriptors then, auto_purging of some connections are done from the CONNECTION_CACHE. This frees the descriptors which get used in the connect process and hence the connect operation can succeed.

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
CACHING_STRATEGY & ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::caching_strategy void   )


template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
int ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::check_hint_i SVC_HANDLER *&  sh,
const ACE_PEER_CONNECTOR_ADDR &  remote_addr,
ACE_Time_Value timeout,
const ACE_PEER_CONNECTOR_ADDR &  local_addr,
int  reuse_addr,
int  flags,
int  perms,
ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, ACE_Pair< SVC_HANDLER *, ATTRIBUTES > > *&  entry,
int &  found
[protected]


template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
void ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::cleanup void   )


Since g++ version < 2.8 arent happy with templates, this special method had to be devised to avoid memory leaks and perform cleanup of the <connection_cache_>.

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
int ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::cleanup_hint_i const void *  recycling_act,
void **  act_holder
[protected, virtual]


Cleanup hint and reset <*act_holder> to zero if <act_holder != 0>.

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
int ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::connect_svc_handler_i SVC_HANDLER *&  sh,
const ACE_PEER_CONNECTOR_ADDR &  remote_addr,
ACE_Time_Value timeout,
const ACE_PEER_CONNECTOR_ADDR &  local_addr,
int  reuse_addr,
int  flags,
int  perms,
int &  found
[protected, virtual]


Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
int ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::find ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR > &  search_addr,
ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, ACE_Pair< SVC_HANDLER *, ATTRIBUTES > > *&  entry
[protected]


Find an idle handle.

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
int ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::find_or_create_svc_handler_i SVC_HANDLER *&  sh,
const ACE_PEER_CONNECTOR_ADDR &  remote_addr,
ACE_Time_Value timeout,
const ACE_PEER_CONNECTOR_ADDR &  local_addr,
int  reuse_addr,
int  flags,
int  perms,
ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, ACE_Pair< SVC_HANDLER *, ATTRIBUTES > > *&  entry,
int &  found
[protected, virtual]


Reimplemented in ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >.

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
int ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::mark_as_closed_i const void *  recycling_act  )  [virtual]


Mark as closed (non-locking version). This is used during the cleanup of the connections purged.

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
int ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::purge_connections void   )  [virtual]


Explicit purging of connection entries from the connection cache.

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
int ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::purge_i const void *  recycling_act  )  [protected, virtual]


Remove from cache (non-locking version).

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
ACE_Recyclable_State ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::recycle_state_i const void *  recycling_act  )  const [protected, virtual]


Get <recycle_state> (non-locking version).

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.

template<class SVC_HANDLER, class _ACE_PEER_CONNECTOR, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
int ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, _ACE_PEER_CONNECTOR, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::recycle_state_i const void *  recycling_act,
ACE_Recyclable_State  new_state
[protected, virtual]


Get/Set <recycle_state> (non-locking version).

Reimplemented from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >.


Member Data Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
CONNECTION_CACHE ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::connection_cache_ [protected]


Table that maintains the cache of connected <svc_handler>s.


The documentation for this class was generated from the following files:
