ACE::Ping_Socket Class Reference

#include <Ping_Socket.h>

Inheritance diagram for ACE::Ping_Socket:

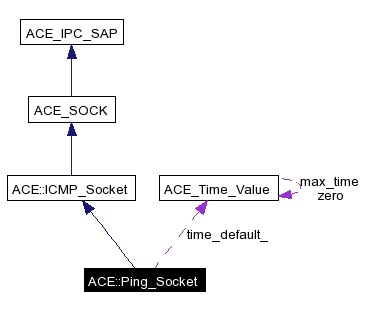

[legend]Collaboration diagram for ACE::Ping_Socket:

[legend]List of all members.


Public Types
enum	{ PING_BUFFER_SIZE = (1024 * 2) }
Public Member Functions
	Ping_Socket (void)
	Default constructor.
	Ping_Socket (ACE_Addr const &local, int protocol=IPPROTO_ICMP, int reuse_addr=0)
	~Ping_Socket (void)
	Destructor.
int	open (ACE_Addr const &local=ACE_Addr::sap_any, int protocol=IPPROTO_ICMP, int reuse_addr=0)
	Wrapper around the BSD-style `socket` system call (no QoS).
int	send_echo_check (ACE_INET_Addr &remote_addr, int to_connect=0)
	toConnect = 1 - makes connect to remote address
int	process_incoming_dgram (char *ptr, ssize_t len)
int	make_echo_check (ACE_INET_Addr &remote_addr, int to_connect=0, ACE_Time_Value const *timeout=&time_default_)
	toConnect = 1 - makes connect to remote address
char *	icmp_recv_buff (void)
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Static Public Attributes
ACE_Time_Value const	time_default_
Private Types
typedef ICMP_Socket	inherited
Private Member Functions
int	receive_echo_reply (ACE_Time_Value const *timeout)
int	get_remote_addr (ACE_INET_Addr &addr) const
	Do not allow this function to percolate up to this interface.
Private Attributes
char	icmp_send_buff_ [PING_BUFFER_SIZE]
char	icmp_recv_buff_ [PING_BUFFER_SIZE]
ACE_UINT16	sequence_number_
int	connected_socket_

Member Typedef Documentation

typedef ICMP_Socket ACE::Ping_Socket::inherited [private]

Member Enumeration Documentation

anonymous enum

Enumeration values:

PING_BUFFER_SIZE

Constructor & Destructor Documentation

ACE::Ping_Socket::Ping_Socket ( void )

Default constructor.

ACE::Ping_Socket::Ping_Socket ( ACE_Addr const & local,

int protocol = IPPROTO_ICMP,

int reuse_addr = 0

)

ACE::Ping_Socket::~Ping_Socket ( void )

Destructor.

Member Function Documentation

void ACE::Ping_Socket::dump ( void ) const

Dump the state of an object.

Reimplemented from ACE::ICMP_Socket.

int ACE::Ping_Socket::get_remote_addr ( ACE_INET_Addr & addr ) const [private]

Do not allow this function to percolate up to this interface.

ACE_INLINE char * ACE::Ping_Socket::icmp_recv_buff ( void )

int ACE::Ping_Socket::make_echo_check ( ACE_INET_Addr & remote_addr,

int to_connect = 0,

ACE_Time_Value const * timeout = &time_default_

)

toConnect = 1 - makes connect to remote address

int ACE::Ping_Socket::open ( ACE_Addr const & local = ACE_Addr::sap_any,

int protocol = IPPROTO_ICMP,

int reuse_addr = 0

)

Wrapper around the BSD-style socket system call (no QoS).

Reimplemented from ACE::ICMP_Socket.

int ACE::Ping_Socket::process_incoming_dgram ( char * ptr,

ssize_t len

)

To receive ICMP_ECHOREPLY. To be called after successfully sending ICMP_ECHO.
