CORBA::Request Class Reference

CORBA::Request. More...

#include <Request.h>

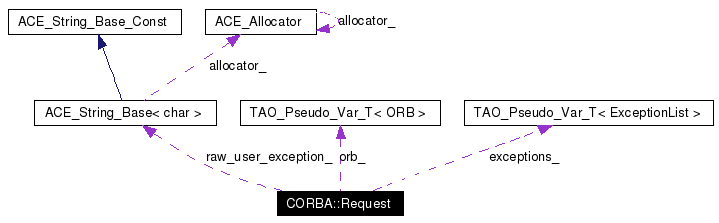

Collaboration diagram for CORBA::Request:

[legend]List of all members.

Public Types
typedef CORBA::Request_ptr	_ptr_type
typedef CORBA::Request_var	_var_type
Public Member Functions
CORBA::Object_ptr	target (void) const
	Return the target of this request.
const CORBA::Char *	operation (void) const
	Return the operation name for the request.
CORBA::NVList_ptr	arguments (void)
	Return the arguments for the request.
CORBA::NamedValue_ptr	result (void)
	Return the result for the request.
CORBA::ExceptionList_ptr	exceptions (void)
	Return the exceptions resulting from this request.
CORBA::Context_ptr	ctx (void) const
	Accessor for the Context member.
void	ctx (CORBA::Context_ptr)
	Mutator for the Context member.
CORBA::ContextList_ptr	contexts (void)
void	set_return_type (CORBA::TypeCode_ptr tc)
	Initialize the return type.
CORBA::Any &	return_value (void)
	Returns reference to Any for extraction using >>=.
void	invoke (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
	Perform method resolution and invoke an appropriate method.
void	send_oneway (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
	Send a oneway request.
void	handle_response (TAO_InputCDR &incoming, CORBA::ULong reply_status ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	Callback method for deferred synchronous requests.
CORBA::ULong	_incr_refcnt (void)
CORBA::ULong	_decr_refcnt (void)
void	_tao_lazy_evaluation (bool lazy_evaluation)
	Set the lazy evaluation flag.
int	_tao_byte_order (void) const
	Get the byte order member.
void	_tao_byte_order (int byte_order)
	Set the byte order member.
void	raw_user_exception (TAO_InputCDR &cdr)
ACE_CString &	raw_user_exception (void)
	Accessor for the input stream containing the exception.
Argument manipulation helper functions.
Arg adders, one for each type of parameter, with and without optional name. Returns reference to Any for insertion using <<=.
CORBA::Any &	add_in_arg (void)
CORBA::Any &	add_in_arg (const char *name)
CORBA::Any &	add_inout_arg (void)
CORBA::Any &	add_inout_arg (const char *name)
CORBA::Any &	add_out_arg (void)
CORBA::Any &	add_out_arg (const char *name)
The 'deferred synchronous' methods.
The 'deferred synchronous' methods.
void	send_deferred (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
void	get_response (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
CORBA::Boolean	poll_response (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
Static Public Member Functions
CORBA::Request *	_duplicate (CORBA::Request *)
	Pseudo object methods.
CORBA::Request *	_nil (void)
Private Member Functions
	Request (CORBA::Object_ptr obj, CORBA::ORB_ptr orb, const CORBA::Char *op, CORBA::NVList_ptr args, CORBA::NamedValue_ptr result, CORBA::Flags flags, CORBA::ExceptionList_ptr exceptions ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	Request (CORBA::Object_ptr obj, CORBA::ORB_ptr orb, const CORBA::Char *op ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	~Request (void)
Private Attributes
CORBA::Object_ptr	target_
	Target object.
CORBA::ORB_var	orb_
	Pointer to our ORB.
const char *	opname_
	Operation name.
CORBA::NVList_ptr	args_
	Parameter list.
CORBA::NamedValue_ptr	result_
	Result of the operation.
CORBA::Flags	flags_
	Invocation flags.
CORBA::ExceptionList_var	exceptions_
	List of exceptions raised by the operation.
CORBA::ContextList_ptr	contexts_
	List of the request's result's contexts.
CORBA::Context_ptr	ctx_
	Context associated with this request.
CORBA::ULong	refcount_
	Reference counting.
TAO_SYNCH_MUTEX	lock_
	Protect the refcount_ and response_receieved_.
bool	lazy_evaluation_
	If not zero then the NVList is not evaluated by default.
CORBA::Boolean	response_received_
	Set to TRUE upon completion of invoke() or handle_response().
int	byte_order_
	Can be reset by a gateway when passing along a request.
ACE_CString	raw_user_exception_
Friends
class	::TAO_Dynamic_Adapter_Impl

---

Detailed Description

CORBA::Request.

Provides a way to create requests and populate it with parameters for use in the Dynamic Invocation Interface.

---

Member Typedef Documentation

typedef CORBA::Request_ptr CORBA::Request::_ptr_type

typedef CORBA::Request_var CORBA::Request::_var_type

---

Constructor & Destructor Documentation

CORBA::Request::Request (  CORBA::Object_ptr  obj, CORBA::ORB_ptr  orb, const CORBA::Char *  op, CORBA::NVList_ptr  args, CORBA::NamedValue_ptr  result, CORBA::Flags  flags, CORBA::ExceptionList_ptr exceptions  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  [private]

CORBA::Request::Request (  CORBA::Object_ptr  obj, CORBA::ORB_ptr  orb, const CORBA::Char *op  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  [private]

CORBA::Request::~Request (  void   )  [private]

---

Member Function Documentation

CORBA::ULong CORBA::Request::_decr_refcnt (  void   )

CORBA::Request* CORBA::Request::_duplicate (  CORBA::Request *   )  [static]

Pseudo object methods.

CORBA::ULong CORBA::Request::_incr_refcnt (  void   )

ACE_INLINE CORBA::Request_ptr CORBA::Request::_nil (  void   )  [static]

ACE_INLINE void CORBA::Request::_tao_byte_order (  int  byte_order  )

Set the byte order member.

ACE_INLINE int CORBA::Request::_tao_byte_order (  void   )  const

Get the byte order member.

ACE_INLINE void CORBA::Request::_tao_lazy_evaluation (  bool  lazy_evaluation  )

Set the lazy evaluation flag.

CORBA::Any& CORBA::Request::add_in_arg (  const char *  name  )

ACE_INLINE CORBA::Any & CORBA::Request::add_in_arg (  void   )

CORBA::Any& CORBA::Request::add_inout_arg (  const char *  name  )

ACE_INLINE CORBA::Any & CORBA::Request::add_inout_arg (  void   )

CORBA::Any& CORBA::Request::add_out_arg (  const char *  name  )

ACE_INLINE CORBA::Any & CORBA::Request::add_out_arg (  void   )

ACE_INLINE CORBA::NVList_ptr CORBA::Request::arguments (  void   )

Return the arguments for the request.

ACE_INLINE CORBA::ContextList_ptr CORBA::Request::contexts (  void   )

Return a list of the request's result's contexts. Since TAO does not implement Contexts, this will always be 0.

ACE_INLINE void CORBA::Request::ctx (  CORBA::Context_ptr   )

Mutator for the Context member.

ACE_INLINE CORBA::Context_ptr CORBA::Request::ctx (  void   )  const

Accessor for the Context member.

ACE_INLINE CORBA::ExceptionList_ptr CORBA::Request::exceptions (  void   )

Return the exceptions resulting from this request.

void CORBA::Request::get_response (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )

void CORBA::Request::handle_response (  TAO_InputCDR &  incoming, CORBA::ULong reply_status  ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Callback method for deferred synchronous requests.

void CORBA::Request::invoke (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )

Perform method resolution and invoke an appropriate method. If the method returns successfully, its result is placed in the result argument specified on create_request. The behavior is undefined if this Request has already been used with a previous call to invoke>, send>, or . Note: A default argument is set, but please note that this not recommended as the user may not be able to propagate the exceptions.

ACE_INLINE const CORBA::Char * CORBA::Request::operation (  void   )  const

Return the operation name for the request.

CORBA::Boolean CORBA::Request::poll_response (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )

ACE_INLINE ACE_CString & CORBA::Request::raw_user_exception (  void   )

Accessor for the input stream containing the exception.

ACE_INLINE void CORBA::Request::raw_user_exception (  TAO_InputCDR &  cdr  )

ACE_INLINE CORBA::NamedValue_ptr CORBA::Request::result (  void   )

Return the result for the request.

ACE_INLINE CORBA::Any & CORBA::Request::return_value (  void   )

Returns reference to Any for extraction using >>=.

void CORBA::Request::send_deferred (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )

void CORBA::Request::send_oneway (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )

Send a oneway request. Note: A default argument is set, but please note that this not recommended as the user may not be able to propagate the exceptions.

ACE_INLINE void CORBA::Request::set_return_type (  CORBA::TypeCode_ptr  tc  )

Initialize the return type.

ACE_INLINE CORBA::Object_ptr CORBA::Request::target (  void   )  const

Return the target of this request.

---

Friends And Related Function Documentation

friend class ::TAO_Dynamic_Adapter_Impl [friend]

---

Member Data Documentation

CORBA::NVList_ptr CORBA::Request::args_ [private]

Parameter list.

int CORBA::Request::byte_order_ [private]

Can be reset by a gateway when passing along a request.

CORBA::ContextList_ptr CORBA::Request::contexts_ [private]

List of the request's result's contexts.

CORBA::Context_ptr CORBA::Request::ctx_ [private]

Context associated with this request.

CORBA::ExceptionList_var CORBA::Request::exceptions_ [private]

List of exceptions raised by the operation. Deprecated: Holds exceptions.

CORBA::Flags CORBA::Request::flags_ [private]

Invocation flags.

bool CORBA::Request::lazy_evaluation_ [private]

If not zero then the NVList is not evaluated by default.

TAO_SYNCH_MUTEX CORBA::Request::lock_ [private]

Protect the refcount_ and response_receieved_.

const char* CORBA::Request::opname_ [private]

Operation name.

CORBA::ORB_var CORBA::Request::orb_ [private]

Pointer to our ORB.

ACE_CString CORBA::Request::raw_user_exception_ [private]

Stores user exception as a CDR stream when this request is used in a TAO gateway.

CORBA::ULong CORBA::Request::refcount_ [private]

Reference counting.

CORBA::Boolean CORBA::Request::response_received_ [private]

Set to TRUE upon completion of invoke() or handle_response().

CORBA::NamedValue_ptr CORBA::Request::result_ [private]

Result of the operation.

CORBA::Object_ptr CORBA::Request::target_ [private]

Target object.

---

The documentation for this class was generated from the following files:

• Request.h
• Request.cpp
• Request.inl

---
