TAO_Synch_Reply_Dispatcher Class Reference

Reply dispatcher for Synchoronous Method Invocation (SMI)s. More...

#include <Synch_Reply_Dispatcher.h>

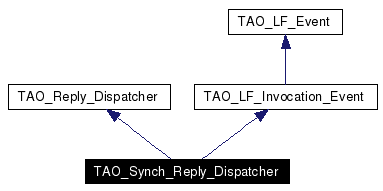

Inheritance diagram for TAO_Synch_Reply_Dispatcher:

[legend]Collaboration diagram for TAO_Synch_Reply_Dispatcher:

[legend]List of all members.

Public Member Functions
	TAO_Synch_Reply_Dispatcher (TAO_ORB_Core *orb_core, IOP::ServiceContextList &sc)
	Constructor.
virtual	~TAO_Synch_Reply_Dispatcher (void)
	Destructor.
TAO_InputCDR &	reply_cdr (void)
	Return the reply CDR.
virtual int	dispatch_reply (TAO_Pluggable_Reply_Params &params)
virtual void	connection_closed (void)
Protected Attributes
IOP::ServiceContextList &	reply_service_info_
	The service context list.
Private Attributes
TAO_ORB_Core *	orb_core_
	Cache the ORB Core pointer.
char	buf_ [ACE_CDR::DEFAULT_BUFSIZE]
	The buffer that is used to initialise the data block.
ACE_Data_Block	db_
TAO_InputCDR	reply_cdr_

---

Detailed Description

Reply dispatcher for Synchoronous Method Invocation (SMI)s.

---

Constructor & Destructor Documentation

TAO_Synch_Reply_Dispatcher::TAO_Synch_Reply_Dispatcher (  TAO_ORB_Core *  orb_core, IOP::ServiceContextList &  sc )

Constructor.

TAO_Synch_Reply_Dispatcher::~TAO_Synch_Reply_Dispatcher (  void   )  [virtual]

Destructor.

---

Member Function Documentation

void TAO_Synch_Reply_Dispatcher::connection_closed (  void   )  [virtual]

The used for the pending reply has been closed. No reply is expected. @ TODO: If the connection was closed due to a CloseConnection message then we could re-issue the request instead of raising the exception, it would a matter of simply adding a boolean argument to this function. Implements TAO_Reply_Dispatcher.

int TAO_Synch_Reply_Dispatcher::dispatch_reply (  TAO_Pluggable_Reply_Params &  params  )  [virtual]

Dispatch the reply. Return 1 on sucess, -1 on error. @ TODO Pluggable Messaging: this method has too many arguments, the "Right Thing"[tm] is for the Transport Object to create a "ClientReply" that encapsulates all we need to process a reply. Naturally it is possible that different messaging protocols implement different variants of such ClientReply class. Implements TAO_Reply_Dispatcher.

TAO_InputCDR & TAO_Synch_Reply_Dispatcher::reply_cdr (  void   )

Return the reply CDR.

---

Member Data Documentation

char TAO_Synch_Reply_Dispatcher::buf_[ACE_CDR::DEFAULT_BUFSIZE] [private]

The buffer that is used to initialise the data block.

ACE_Data_Block TAO_Synch_Reply_Dispatcher::db_ [private]

datablock that is created on teh stack to initialise the CDR stream underneath.

TAO_ORB_Core* TAO_Synch_Reply_Dispatcher::orb_core_ [private]

Cache the ORB Core pointer.

TAO_InputCDR TAO_Synch_Reply_Dispatcher::reply_cdr_ [private]

CDR stream which has the reply information that needs to be demarshalled by the stubs

IOP::ServiceContextList& TAO_Synch_Reply_Dispatcher::reply_service_info_ [protected]

The service context list.

---

The documentation for this class was generated from the following files:

• Synch_Reply_Dispatcher.h
• Synch_Reply_Dispatcher.cpp

---
