ACE_Service_Manager Class Reference

Provide a standard ACE service for managing all the services configured in an <ace_service_repository>. More...

#include <Service_Manager.h>

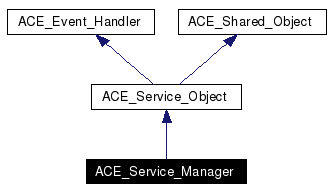

Inheritance diagram for ACE_Service_Manager:

Inheritance graph
[legend]

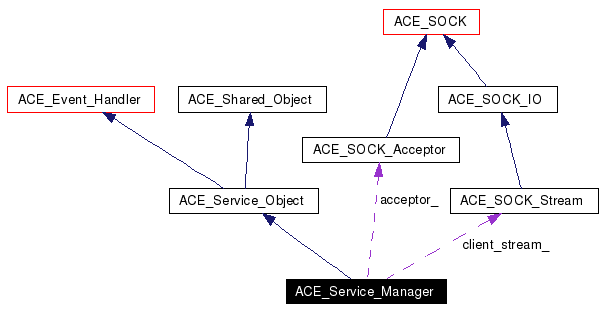

Collaboration diagram for ACE_Service_Manager:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Service_Manager (void)
 Constructor.
 ~ACE_Service_Manager (void)
 Destructor.

Protected Member Functions

virtual int reconfigure_services (void)
virtual int list_services (void)
virtual int init (int argc, ACE_TCHAR *argv[])
 Initializes object when dynamic linking occurs.
virtual int info (ACE_TCHAR **info_string, size_t length) const
 Returns information on a service object.
virtual int fini (void)
 Terminates object when dynamic unlinking occurs.
virtual int suspend (void)
 Temporarily disable a service without removing it completely.
virtual int resume (void)
 Re-enable a previously suspended service.
void dump (void) const
 Dump the state of an object.
int open (const ACE_INET_Addr &sia)
virtual ACE_HANDLE get_handle (void) const
 Get the I/O handle.
virtual int handle_input (ACE_HANDLE fd)
 Called when input events occur (e.g., connection or data).
virtual int handle_close (ACE_HANDLE fd, ACE_Reactor_Mask)
virtual int handle_signal (int signum, siginfo_t *, ucontext_t *)
virtual void process_request (ACE_TCHAR *request)
 Handle one request.

Protected Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.
ACE_SOCK_Stream client_stream_
ACE_SOCK_Acceptor acceptor_
 Acceptor instance.
int debug_
 Keep track of the debugging level.
int signum_
 The signal used to trigger reconfiguration.

Static Protected Attributes

u_short DEFAULT_PORT_ = 10000
 Default port for the Acceptor to listen on.

Detailed Description

Provide a standard ACE service for managing all the services configured in an <ace_service_repository>.

This implementation is simple and just handles each client request one at a time. There are currently 3 types of requests: + List services: If the string "help" is sent, return a list of all the services supported by the Service Configurator. + Reconfigure: If the string "reconfigure" is sent trigger a reconfiguration, which will re-read the local <svc.conf> file. + Process directive: If neither "help" nor "reconfigure" is sent, simply treat the incoming string as a process directive and pass it along to <ACE_Service_Config::process_directive>. This allows remote configuration via command-line instructions like echo suspend My_Remote_Service | telnet hostname 3911

Each request is associated with a new connection, which is closed when the request is processed. In addition, you must be using the singleton <ACE_Reactor::instance> in order to trigger reconfigurations.


Constructor & Destructor Documentation

ACE_Service_Manager::ACE_Service_Manager void   )


Constructor.

ACE_INLINE ACE_Service_Manager::~ACE_Service_Manager void   )


Destructor.


Member Function Documentation

void ACE_Service_Manager::dump void   )  const [protected]


Dump the state of an object.

int ACE_Service_Manager::fini void   )  [protected, virtual]


Terminates object when dynamic unlinking occurs.

Reimplemented from ACE_Shared_Object.

ACE_HANDLE ACE_Service_Manager::get_handle void   )  const [protected, virtual]


Get the I/O handle.

Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::handle_close ACE_HANDLE  fd,
ACE_Reactor_Mask
[protected, virtual]


Called when a <handle_*()> method returns -1 or when the <remove_handler> method is called on an <ace_reactor>. The <close_mask> indicates which event has triggered the <handle_close> method callback on a particular <handle>.

Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::handle_input ACE_HANDLE  fd  )  [protected, virtual]


Called when input events occur (e.g., connection or data).

Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::handle_signal int  signum,
siginfo_t ,
ucontext_t
[protected, virtual]


Called when object is signaled by OS (either via UNIX signals or when a Win32 object becomes signaled).

Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::info ACE_TCHAR **  info_string,
size_t  length
const [protected, virtual]


Returns information on a service object.

Reimplemented from ACE_Shared_Object.

int ACE_Service_Manager::init int  argc,
ACE_TCHAR argv[]
[protected, virtual]


Initializes object when dynamic linking occurs.

Reimplemented from ACE_Shared_Object.

int ACE_Service_Manager::list_services void   )  [protected, virtual]


Determine all the services offered by this daemon and return the information back to the client.

int ACE_Service_Manager::open const ACE_INET_Addr sia  )  [protected]


void ACE_Service_Manager::process_request ACE_TCHAR request  )  [protected, virtual]


Handle one request.

int ACE_Service_Manager::reconfigure_services void   )  [protected, virtual]


Trigger a reconfiguration of the Service Configurator by re-reading its local <svc.conf> file.

int ACE_Service_Manager::resume void   )  [protected, virtual]


Re-enable a previously suspended service.

Reimplemented from ACE_Service_Object.

int ACE_Service_Manager::suspend void   )  [protected, virtual]


Temporarily disable a service without removing it completely.

Reimplemented from ACE_Service_Object.


Member Data Documentation

ACE_SOCK_Acceptor ACE_Service_Manager::acceptor_ [protected]


Acceptor instance.

ACE_Service_Manager::ACE_ALLOC_HOOK_DECLARE [protected]


Declare the dynamic allocation hooks.

ACE_SOCK_Stream ACE_Service_Manager::client_stream_ [protected]


Connection to the client (we only support one client connection at a time).

int ACE_Service_Manager::debug_ [protected]


Keep track of the debugging level.

u_short ACE_Service_Manager::DEFAULT_PORT_ = 10000 [static, protected]


Default port for the Acceptor to listen on.

int ACE_Service_Manager::signum_ [protected]


The signal used to trigger reconfiguration.


The documentation for this class was generated from the following files:
