ACE_SPIPE_Stream Class Reference

Defines the methods in the <ace_spipe_stream> abstraction. More...

#include <SPIPE_Stream.h>

Inheritance diagram for ACE_SPIPE_Stream:

Inheritance graph
[legend]

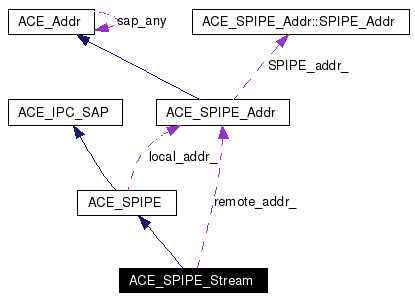

Collaboration diagram for ACE_SPIPE_Stream:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_SPIPE_Addr PEER_ADDR

Public Member Functions

 ACE_SPIPE_Stream (void)
 Default constructor.
int get_remote_addr (ACE_SPIPE_Addr &remote_sap) const
 Obtain the address of whom we are connected with.
int send_handle (ACE_HANDLE handle) const
 Send an open FD to another process.
int recv_handle (ACE_HANDLE &handle) const
 Recv an open FD from another process.
int recv_handle (strrecvfd &recvfd) const
 Recv an open FD from another process.
ssize_t send_n (const void *buf, size_t len) const
 Send <len> bytes, keep trying until <len> are sent.
ssize_t recv_n (void *buf, size_t len) const
 Recv <len> bytes, keep trying until <len> are received.
ssize_t send (const void *buf, size_t len) const
 Send bytes via STREAM pipes using "band" mode.
ssize_t recv (void *buf, size_t len) const
 Recv bytes via STREAM pipes using "band" mode.
ssize_t send (const ACE_Str_Buf *cntl, const ACE_Str_Buf *data, int flags=0) const
 Send <cntl> and <data> via STREAM pipes.
ssize_t recv (ACE_Str_Buf *cntl, ACE_Str_Buf *data, int *flags) const
 Recv <cntl> and <data> via STREAM pipes.
ssize_t send (const ACE_Str_Buf *cntl, const ACE_Str_Buf *data, int band, int flags) const
 Send bytes via STREAM pipes using "band" mode.
ssize_t recv (ACE_Str_Buf *cntl, ACE_Str_Buf *data, int *band, int *flags) const
 Recv bytes via STREAM pipes using "band" mode.
ssize_t send (const iovec iov[], int len) const
 Send iovecs via the OS "gather-write" operation.
ssize_t recv (iovec iov[], int len) const
 Recv iovecs via the OS "scatter-read" operation.
ssize_t send (size_t len,...) const
ssize_t recv (size_t len,...) const
ssize_t send (const void *buf, size_t len, ACE_OVERLAPPED *overlapped) const
 Send <len> bytes via Win32 <writefile> using overlapped I/O.
ssize_t recv (void *buf, size_t len, ACE_OVERLAPPED *overlapped) const
 Recv <len> bytes via Win32 <readfile> using overlapped I/O.
ssize_t sendv (const iovec iov[], int len) const
 Send an <iovec> of size <len> to the stream.
ssize_t sendv_n (const iovec iov[], int len) const
ssize_t recvv_n (iovec iov[], int len) const
 Receive an <iovec> of size <len> to the stream.
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Attributes

ACE_SPIPE_Addr remote_addr_

Friends

class ACE_SPIPE_Acceptor
class ACE_SPIPE_Connector

Detailed Description

Defines the methods in the <ace_spipe_stream> abstraction.

<buf> is the buffer to write from or receive into. <len> is the number of bytes to transfer.

The "_n()" I/O methods keep looping until all the data has been transferred. These methods also work for sockets in non-blocking mode i.e., they keep looping on EWOULDBLOCK.

The return values for the "*_n()" methods match the return values from the non "_n()" methods and are specified as follows:

Methods with <iovec> parameter are I/O vector variants of the I/O operations.

The <send> and <revc> operations use "message" semantics rather than "bytestream" semantics.

Member Typedef Documentation

typedef ACE_SPIPE_Addr ACE_SPIPE_Stream::PEER_ADDR


Constructor & Destructor Documentation

ACE_SPIPE_Stream::ACE_SPIPE_Stream (  void   )


Default constructor.

Member Function Documentation

void ACE_SPIPE_Stream::dump (  void   )  const


Dump the state of an object.

Reimplemented from ACE_SPIPE.

ACE_INLINE int ACE_SPIPE_Stream::get_remote_addr (  ACE_SPIPE_Addr &  remote_sap  )  const


Obtain the address of whom we are connected with.

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv (  void *  buf,
size_t  len,
ACE_OVERLAPPED *  overlapped
)  const


Recv <len> bytes via Win32 <readfile> using overlapped I/O.

ssize_t ACE_SPIPE_Stream::recv (  size_t  len,
  ...
)  const


This is an interface to readv, that doesn't use the struct iovec explicitly. The ... can be passed as an arbitrary number of (char *ptr, int len) tuples. However, the count N is the *total* number of trailing arguments, *not* a couple of the number of tuple pairs!

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv (  iovec  iov[],
int  len
)  const


Recv iovecs via the OS "scatter-read" operation.

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv (  ACE_Str_Buf *  cntl,
ACE_Str_Buf *  data,
int *  band,
int *  flags
)  const


Recv bytes via STREAM pipes using "band" mode.

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv (  ACE_Str_Buf *  cntl,
ACE_Str_Buf *  data,
int *  flags
)  const


Recv <cntl> and <data> via STREAM pipes.

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv (  void *  buf,
size_t  len
)  const


Recv bytes via STREAM pipes using "band" mode.

ACE_INLINE int ACE_SPIPE_Stream::recv_handle (  strrecvfd &  recvfd  )  const


Recv an open FD from another process.

ACE_INLINE int ACE_SPIPE_Stream::recv_handle (  ACE_HANDLE &  handle  )  const


Recv an open FD from another process.

ACE_INLINE ssize_t ACE_SPIPE_Stream::recv_n (  void *  buf,
size_t  len
)  const


Recv <len> bytes, keep trying until <len> are received.

ACE_INLINE ssize_t ACE_SPIPE_Stream::recvv_n (  iovec  iov[],
int  len
)  const


Receive an <iovec> of size <len> to the stream.

ACE_INLINE ssize_t ACE_SPIPE_Stream::send (  const void *  buf,
size_t  len,
ACE_OVERLAPPED *  overlapped
)  const


Send <len> bytes via Win32 <writefile> using overlapped I/O.

ssize_t ACE_SPIPE_Stream::send (  size_t  len,
  ...
)  const


Send N char *ptrs and int lengths. Note that the char *'s precede the ints (basically, an varargs version of writev). The count N is the *total* number of trailing arguments, *not* a couple of the number of tuple pairs!

ACE_INLINE ssize_t ACE_SPIPE_Stream::send (  const iovec  iov[],
int  len
)  const


Send iovecs via the OS "gather-write" operation.

ACE_INLINE ssize_t ACE_SPIPE_Stream::send (  const ACE_Str_Buf *  cntl,
const ACE_Str_Buf *  data,
int  band,
int  flags
)  const


Send bytes via STREAM pipes using "band" mode.

ACE_INLINE ssize_t ACE_SPIPE_Stream::send (  const ACE_Str_Buf *  cntl,
const ACE_Str_Buf *  data,
int  flags = 0
)  const


Send <cntl> and <data> via STREAM pipes.

ACE_INLINE ssize_t ACE_SPIPE_Stream::send (  const void *  buf,
size_t  len
)  const


Send bytes via STREAM pipes using "band" mode.

ACE_INLINE int ACE_SPIPE_Stream::send_handle (  ACE_HANDLE  handle  )  const


Send an open FD to another process.

ACE_INLINE ssize_t ACE_SPIPE_Stream::send_n (  const void *  buf,
size_t  len
)  const


Send <len> bytes, keep trying until <len> are sent.

ACE_INLINE ssize_t ACE_SPIPE_Stream::sendv (  const iovec  iov[],
int  len
)  const


Send an <iovec> of size <len> to the stream.

ACE_INLINE ssize_t ACE_SPIPE_Stream::sendv_n (  const iovec  iov[],
int  len
)  const


Send an <iovec> of size <len> to the stream. Will block until all bytes are sent or an error occurs.

Friends And Related Function Documentation

friend class ACE_SPIPE_Acceptor [friend]


friend class ACE_SPIPE_Connector [friend]


Member Data Documentation

ACE_SPIPE_Stream::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_SPIPE.

ACE_SPIPE_Addr ACE_SPIPE_Stream::remote_addr_ [private]


The documentation for this class was generated from the following files:
