ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > Class Template Reference

An ACE_Refcounted_Auto_Ptr_Rep<X, ACE_LOCK> object encapsulates a pointer to an object of type X. It is pointed to by ACE_Refcounted_Auto_Ptr<X, ACE_LOCK> object[s] and only accessible through them. More...

#include <Refcounted_Auto_Ptr.h>

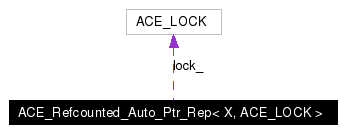

Collaboration diagram for ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >:

[legend]List of all members.

Private Member Functions
X *	release (void)
	Sets the pointer value to 0 and returns its old value.
void	reset (X *p=0)
X *	get (void) const
	Get the pointer value.
int	count (void) const
	Get the reference count value.
int	null (void) const
	Allows us to check for NULL on all ACE_Refcounted_Auto_Ptr objects.
	ACE_Refcounted_Auto_Ptr_Rep (X *p=0)
	~ACE_Refcounted_Auto_Ptr_Rep (void)
Static Private Member Functions
ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > *	internal_create (X *p)
ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > *	create (X *p)
ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > *	attach (ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > *&rep)
void	detach (ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > *&rep)
void	assign (ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > *&rep, ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > *new_rep)
Private Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
ACE_Auto_Basic_Ptr< X >	ptr_
	Pointer to the result.
int	ref_count_
	Reference count.
ACE_LOCK	lock_
	Synchronization variable for the MT_SAFE <ace_hash_map_manager_ex>.
Friends
class	ACE_Refcounted_Auto_Ptr<X, ACE_LOCK>

---

Detailed Description

template<class X, class ACE_LOCK>
class ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >

An ACE_Refcounted_Auto_Ptr_Rep<X, ACE_LOCK> object encapsulates a pointer to an object of type X. It is pointed to by ACE_Refcounted_Auto_Ptr<X, ACE_LOCK> object[s] and only accessible through them.

---

Constructor & Destructor Documentation

template<class X, class ACE_LOCK> ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::ACE_Refcounted_Auto_Ptr_Rep (  X *  p = 0  )  [inline, private]

template<class X, class ACE_LOCK> ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::~ACE_Refcounted_Auto_Ptr_Rep (  void   )  [inline, private]

---

Member Function Documentation

template<class X, class ACE_LOCK> void ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::assign (  ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > *&  rep, ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > *  new_rep )  [inline, static, private]

Decreases the rep's reference count and and deletes rep if there are no more references to rep. Then assigns new_rep to rep. Precondition (rep != 0 && new_rep != 0)

template<class X, class ACE_LOCK> ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > * ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::attach (  ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > *&  rep  )  [inline, static, private]

Increase the reference count and return argument. Uses the attribute "ace_lock_" to synchronize reference count updating. Precondition (rep != 0).

template<class X, class ACE_LOCK> int ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::count (  void   )  const [inline, private]

Get the reference count value.

template<class X, class ACE_LOCK> ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > * ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::create (  X *  p  )  [inline, static, private]

Create a ACE_Refcounted_Auto_Ptr_Rep<X, ACE_LOCK> and initialize the reference count.

template<class X, class ACE_LOCK> void ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::detach (  ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > *&  rep  )  [inline, static, private]

Decreases the reference count and and deletes rep if there are no more references to rep. Precondition (rep != 0)

template<class X, class ACE_LOCK> X * ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::get (  void   )  const [inline, private]

Get the pointer value.

template<class X, class ACE_LOCK> ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK > * ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::internal_create (  X *  p  )  [inline, static, private]

Allocate a new ACE_Refcounted_Auto_Ptr_Rep<X, ACE_LOCK> instance, returning NULL if it cannot be created.

template<class X, class ACE_LOCK> int ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::null (  void   )  const [inline, private]

Allows us to check for NULL on all ACE_Refcounted_Auto_Ptr objects.

template<class X, class ACE_LOCK> X * ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::release (  void   )  [inline, private]

Sets the pointer value to 0 and returns its old value.

template<class X, class ACE_LOCK> void ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::reset (  X *  p = 0  )  [inline, private]

Invokes delete on the previous pointer value and then sets the pointer value to the specified value.

---

Friends And Related Function Documentation

template<class X, class ACE_LOCK> friend class ACE_Refcounted_Auto_Ptr<X, ACE_LOCK> [friend]

---

Member Data Documentation

template<class X, class ACE_LOCK> ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::ACE_ALLOC_HOOK_DECLARE [private]

Declare the dynamic allocation hooks.

template<class X, class ACE_LOCK> ACE_LOCK ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::lock_ [mutable, private]

Synchronization variable for the MT_SAFE <ace_hash_map_manager_ex>.

template<class X, class ACE_LOCK> ACE_Auto_Basic_Ptr<X> ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::ptr_ [private]

Pointer to the result.

template<class X, class ACE_LOCK> int ACE_Refcounted_Auto_Ptr_Rep< X, ACE_LOCK >::ref_count_ [private]

Reference count.

---

The documentation for this class was generated from the following files:

• Refcounted_Auto_Ptr.h
• Refcounted_Auto_Ptr.inl

---
