ACE_Dev_Poll_Reactor Class Reference

A `/dev/poll' or `/dev/epoll' based Reactor implemenatation. More...

#include <Dev_Poll_Reactor.h>

Inheritance diagram for ACE_Dev_Poll_Reactor:

Inheritance graph
[legend]

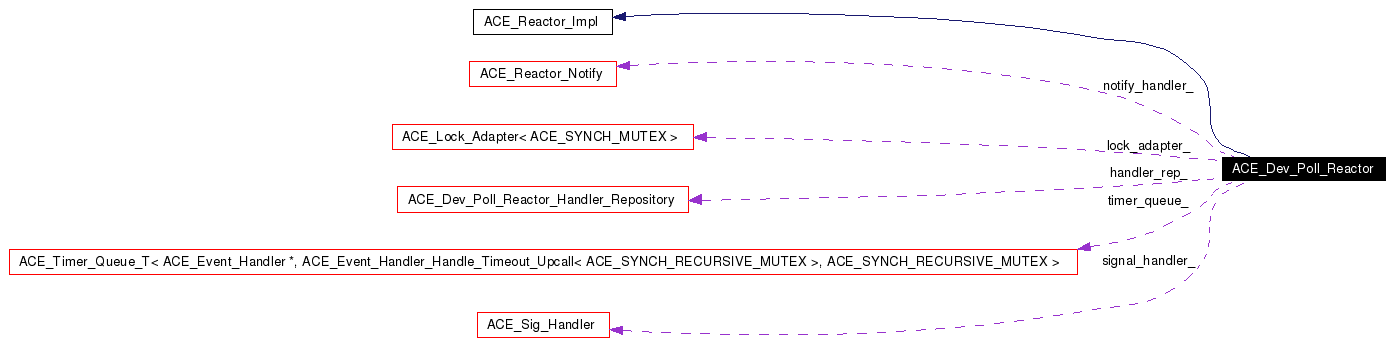

Collaboration diagram for ACE_Dev_Poll_Reactor:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Dev_Poll_Reactor (ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=0, ACE_Reactor_Notify *notify=0, int mask_signals=1)
 Initialize ACE_Dev_Poll_Reactor with the default size.
 ACE_Dev_Poll_Reactor (size_t size, int restart=0, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=0, ACE_Reactor_Notify *notify=0, int mask_signals=1)
 Initialize ACE_Dev_Poll_Reactor with size "@a size.".
virtual ~ACE_Dev_Poll_Reactor (void)
 Close down and release all resources.
virtual int open (size_t size, int restart=0, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0, int disable_notify_pipe=0, ACE_Reactor_Notify *=0)
 Initialization.
virtual int current_info (ACE_HANDLE handle, size_t &)
virtual int set_sig_handler (ACE_Sig_Handler *signal_handler)
 Use a user specified signal handler instead.
virtual int timer_queue (ACE_Timer_Queue *tq)
 Set a user-specified timer queue.
virtual ACE_Timer_Queuetimer_queue (void) const
virtual int close (void)
 Close down and release all resources.
virtual int work_pending (const ACE_Time_Value &max_wait_time=ACE_Time_Value::zero)
virtual int handle_events (ACE_Time_Value *max_wait_time=0)
virtual int alertable_handle_events (ACE_Time_Value *max_wait_time=0)
virtual int handle_events (ACE_Time_Value &max_wait_time)
virtual int alertable_handle_events (ACE_Time_Value &max_wait_time)
virtual int deactivated (void)
virtual void deactivate (int do_stop)
virtual int register_handler (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
virtual int register_handler (ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
virtual int register_handler (ACE_HANDLE event_handle, ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
virtual int register_handler (const ACE_Handle_Set &handles, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
virtual int register_handler (int signum, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0, ACE_Event_Handler **old_sh=0, ACE_Sig_Action *old_disp=0)
virtual int register_handler (const ACE_Sig_Set &sigset, ACE_Event_Handler *new_sh, ACE_Sig_Action *new_disp=0)
virtual int remove_handler (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
 Removes event_handler.
virtual int remove_handler (ACE_HANDLE handle, ACE_Reactor_Mask mask)
virtual int remove_handler (const ACE_Handle_Set &handle_set, ACE_Reactor_Mask mask)
virtual int remove_handler (int signum, ACE_Sig_Action *new_disp, ACE_Sig_Action *old_disp=0, int sigkey=-1)
virtual int remove_handler (const ACE_Sig_Set &sigset)
 Calls <remove_handler> for every signal in <sigset>.
virtual int suspend_handler (ACE_Event_Handler *event_handler)
virtual int suspend_handler (ACE_HANDLE handle)
 Suspend handle temporarily.
virtual int suspend_handler (const ACE_Handle_Set &handles)
 Suspend all handles in handle set temporarily.
virtual int suspend_handlers (void)
 Suspend all handles temporarily.
virtual int resume_handler (ACE_Event_Handler *event_handler)
virtual int resume_handler (ACE_HANDLE handle)
 Resume handle.
virtual int resume_handler (const ACE_Handle_Set &handles)
 Resume all handles in handle set.
virtual int resume_handlers (void)
 Resume all handles.
virtual int resumable_handler (void)
virtual int uses_event_associations (void)
virtual long schedule_timer (ACE_Event_Handler *event_handler, const void *arg, const ACE_Time_Value &delay, const ACE_Time_Value &interval=ACE_Time_Value::zero)
virtual int reset_timer_interval (long timer_id, const ACE_Time_Value &interval)
virtual int cancel_timer (ACE_Event_Handler *event_handler, int dont_call_handle_close=1)
virtual int cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)
virtual int schedule_wakeup (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks_to_be_added)
virtual int schedule_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask masks_to_be_added)
virtual int cancel_wakeup (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks_to_be_cleared)
 Clear <masks_to_be_cleared> from the <event_handler>'s entry.
virtual int cancel_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask masks_to_be_cleared)
 Clear <masks_to_be_cleared> from the <handle>'s entry.
virtual int notify (ACE_Event_Handler *event_handler=0, ACE_Reactor_Mask mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *=0)
virtual void max_notify_iterations (int)
virtual int max_notify_iterations (void)
virtual int purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)
virtual ACE_Event_Handlerfind_handler (ACE_HANDLE handle)
virtual int handler (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Event_Handler **event_handler=0)
virtual int handler (int signum, ACE_Event_Handler **=0)
virtual int initialized (void)
virtual size_t size (void) const
virtual ACE_Locklock (void)
 Returns a reference to the Reactor's internal lock.
virtual void wakeup_all_threads (void)
 Wake up all threads waiting in the event loop.
virtual int owner (ACE_thread_t new_owner, ACE_thread_t *old_owner=0)
 Transfers ownership of Reactor_Impl to the new_owner.
virtual int owner (ACE_thread_t *owner)
 Return the ID of the "owner" thread.
virtual int restart (void)
 Get the existing restart value.
virtual int restart (int r)
 Set a new value for restart and return the original value.
virtual void requeue_position (int)
 Set position of the owner thread.
virtual int requeue_position (void)
 Get position of the owner thread.
virtual void dump (void) const
 Dump the state of an object.
Low-level wait_set mask manipulation methods
Low-level methods to manipulate the event/reactor mask associated with a handle and event handler when polling for events.
The "interest set," i.e. the wait set, can be directly manipulated with these methods.


virtual int mask_ops (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask, int ops)
virtual int mask_ops (ACE_HANDLE handle, ACE_Reactor_Mask mask, int ops)
Low-level ready_set mask manipulation methods
These methods are unimplemented.

virtual int ready_ops (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask, int ops)
virtual int ready_ops (ACE_HANDLE handle, ACE_Reactor_Mask, int ops)
 GET/SET/ADD/CLR the ready "bit" bound with the handle and mask.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Member Functions

int work_pending_i (ACE_Time_Value *max_wait_time)
 Non-locking version of wait_pending().
int handle_events_i (ACE_Time_Value *max_wait_time)
int upcall (ACE_Event_Handler *event_handler, int(ACE_Event_Handler::*callback)(ACE_HANDLE), ACE_HANDLE handle)
 Perform the upcall with the given event handler method.
int dispatch (void)
int dispatch_timer_handlers (int &number_of_handlers_dispatched)
int dispatch_io_events (int &io_handlers_dispatched)
int register_handler_i (ACE_HANDLE handle, ACE_Event_Handler *eh, ACE_Reactor_Mask mask)
 Register the given event handler with the reactor.
int remove_handler_i (ACE_HANDLE handle, ACE_Reactor_Mask mask)
int suspend_handler_i (ACE_HANDLE handle)
 Temporarily remove the given handle from the "interest set.".
int resume_handler_i (ACE_HANDLE handle)
int mask_ops_i (ACE_HANDLE handle, ACE_Reactor_Mask mask, int ops)
short reactor_mask_to_poll_event (ACE_Reactor_Mask mask)
 Convert a reactor mask to its corresponding poll() event mask.

Protected Attributes

bool initialized_
 Has the reactor been initialized.
ACE_HANDLE poll_fd_
size_t size_
epoll_event * events_
 Table of event structures to be filled by epoll_wait:.
epoll_event * start_pevents_
epoll_event * end_pevents_
 The last element in the event array plus one.
sig_atomic_t deactivated_
ACE_SYNCH_MUTEX lock_
 Lock used for synchronization of reactor state.
ACE_Lock_Adapter< ACE_SYNCH_MUTEX > lock_adapter_
 Adapter used to return internal lock to outside world.
ACE_Dev_Poll_Reactor_Handler_Repository handler_rep_
 The repository that contains all registered event handlers.
ACE_Timer_Queuetimer_queue_
 Defined as a pointer to allow overriding by derived classes...
int delete_timer_queue_
ACE_Sig_Handlersignal_handler_
 Handle signals without requiring global/static variables.
int delete_signal_handler_
ACE_Reactor_Notifynotify_handler_
int delete_notify_handler_
int mask_signals_
int restart_

Detailed Description

A `/dev/poll' or `/dev/epoll' based Reactor implemenatation.

Attention:
This reactor is experimental.
The ACE_Dev_Poll_Reactor uses the `/dev/poll' or '/dev/epoll' character devices to demultiplex events on a given set of file descriptors. Unlike select(), `/dev/poll' and `/dev/epoll' have no hard-coded limit on the number of file descriptors that may be handled at any given time. As such, the ACE_Dev_Poll_Reactor can generally handle a much larger number of file descriptors than select() -based reactors. Furthermore, since `/dev/poll' and `/dev/epoll' both return a set of file descriptors that are active, there is no need to "walk" the set of file descriptors to determine which ones are active, such as what is done with the select() and poll() system calls. All returned file descriptors are active. This makes event dispatching very efficient.

Note:
In general, this reactor may only be used to demultiplex events on sockets. Demultiplexing events on pipes, for example may not work. This is due to a limitation in the underlying `/dev/poll' device driver.

It is only possible to achieve millisecond timeout resolutions with the ACE_Dev_Poll_Reactor. However, the timeout resolution for timers is independent of the reactors timeout resolution. As such, it may be possible to achieve sub-millisecond timeout resolutions for timers but that is entirely platform dependent.


Constructor & Destructor Documentation

ACE_Dev_Poll_Reactor::ACE_Dev_Poll_Reactor ACE_Sig_Handler = 0,
ACE_Timer_Queue = 0,
int  disable_notify_pipe = 0,
ACE_Reactor_Notify notify = 0,
int  mask_signals = 1


Initialize ACE_Dev_Poll_Reactor with the default size.

The default size for the ACE_Dev_Poll_Reactor is the maximum number of open file descriptors for the process.

ACE_Dev_Poll_Reactor::ACE_Dev_Poll_Reactor size_t  size,
int  restart = 0,
ACE_Sig_Handler = 0,
ACE_Timer_Queue = 0,
int  disable_notify_pipe = 0,
ACE_Reactor_Notify notify = 0,
int  mask_signals = 1


Initialize ACE_Dev_Poll_Reactor with size "@a size.".

Note:
On Unix platforms, the size parameter should be as large as the maximum number of file descriptors allowed for a given process. This is necessary since a file descriptor is used to directly index the array of event handlers maintained by the Reactor's handler repository. Direct indexing is used for efficiency reasons. If the size parameter is less than the process maximum, the process maximum will be decreased in order to prevent potential access violations.

ACE_Dev_Poll_Reactor::~ACE_Dev_Poll_Reactor void   )  [virtual]


Close down and release all resources.


Member Function Documentation

int ACE_Dev_Poll_Reactor::alertable_handle_events ACE_Time_Value max_wait_time  )  [virtual]


Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::alertable_handle_events ACE_Time_Value max_wait_time = 0  )  [virtual]


Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::cancel_timer long  timer_id,
const void **  arg = 0,
int  dont_call_handle_close = 1
[virtual]


Cancel the single Event_Handler that matches the <timer_id> value (which was returned from the schedule method). If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the Event_Handler was registered. This makes it possible to free up the memory and avoid memory leaks. Returns 1 if cancellation succeeded and 0 if the <timer_id> wasn't found.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::cancel_timer ACE_Event_Handler event_handler,
int  dont_call_handle_close = 1
[virtual]


Cancel all Event_Handlers that match the address of <event_handler>. Returns number of handlers cancelled.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::cancel_wakeup ACE_HANDLE  handle,
ACE_Reactor_Mask  masks_to_be_cleared
[virtual]


Clear <masks_to_be_cleared> from the <handle>'s entry.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::cancel_wakeup ACE_Event_Handler event_handler,
ACE_Reactor_Mask  masks_to_be_cleared
[virtual]


Clear <masks_to_be_cleared> from the <event_handler>'s entry.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::close void   )  [virtual]


Close down and release all resources.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::current_info ACE_HANDLE  handle,
size_t &
[virtual]


Parameters:
handle allows the reactor to check if the caller is valid.
Returns:
0 if the size of the current message has been put in size. -1 if not.

Implements ACE_Reactor_Impl.

void ACE_Dev_Poll_Reactor::deactivate int  do_stop  )  [virtual]


Control whether the Reactor will handle any more incoming events or not. If do_stop == 1, the Reactor will be disabled. By default, a reactor is in active state and can be deactivated/reactived as desired.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::deactivated void   )  [virtual]


Returns:
The status of Reactor. If this function returns 0, the reactor is actively handling events. If it returns non-zero, handle_events() and handle_alertable_events() return -1 immediately.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::dispatch void   )  [protected]


Dispatch ACE_Event_Handlers for time events, I/O events, and signal events. Returns the total number of ACE_Event_Handlers that were dispatched or -1 if something goes wrong.

int ACE_Dev_Poll_Reactor::dispatch_io_events int &  io_handlers_dispatched  )  [protected]


Dispatch all IO related events to their corresponding event handlers.

int ACE_Dev_Poll_Reactor::dispatch_timer_handlers int &  number_of_handlers_dispatched  )  [protected]


void ACE_Dev_Poll_Reactor::dump void   )  const [virtual]


Dump the state of an object.

Implements ACE_Reactor_Impl.

ACE_Event_Handler * ACE_Dev_Poll_Reactor::find_handler ACE_HANDLE  handle  )  [virtual]


Return the Event_Handler associated with <handle>. Return 0 if <handle> is not registered.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::handle_events ACE_Time_Value max_wait_time  )  [virtual]


This method is just like the one above, except the max_wait_time value is a reference and can therefore never be NULL.

Note:
It is only possible to achieve millisecond timeout resolutions with the ACE_Dev_Poll_Reactor.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::handle_events ACE_Time_Value max_wait_time = 0  )  [virtual]


This event loop driver blocks for up to max_wait_time before returning. It will return earlier if events occur. Note that max_wait_time can be 0, in which case this method blocks indefinitely until events occur.

max_wait_time is decremented to reflect how much time this call took. For instance, if a time value of 3 seconds is passed to handle_events() and an event occurs after 2 seconds, max_wait_time will equal 1 second. This can be used if an application wishes to handle events for some fixed amount of time.
The only difference between alertable_handle_events() and handle_events() is that in the alertable case, the event loop will return when the system queues an I/O completion routine or an Asynchronous Procedure Call.
Returns:
The total number of ACE_Event_Handlers that were dispatched, 0 if the max_wait_time elapsed without dispatching any handlers, or -1 if an error occurs.
Note:
It is only possible to achieve millisecond timeout resolutions with the ACE_Dev_Poll_Reactor.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::handle_events_i ACE_Time_Value max_wait_time  )  [protected]


This is a helper method called by all handle_events() methods.

int ACE_Dev_Poll_Reactor::handler int  signum,
ACE_Event_Handler **  = 0
[virtual]


Check to see if <signum> is associated with a valid Event_Handler bound to a signal. Return the <event_handler> associated with this <handler> if <event_handler> != 0.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::handler ACE_HANDLE  handle,
ACE_Reactor_Mask  mask,
ACE_Event_Handler **  event_handler = 0
[virtual]


Check to see if <handle> is associated with a valid Event_Handler bound to <mask>. Return the <event_handler> associated with this <handler> if <event_handler> != 0.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::initialized void   )  [virtual]


Returns true if Reactor has been successfully initialized, else false.

Implements ACE_Reactor_Impl.

ACE_Lock & ACE_Dev_Poll_Reactor::lock void   )  [virtual]


Returns a reference to the Reactor's internal lock.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::mask_ops ACE_HANDLE  handle,
ACE_Reactor_Mask  mask,
int  ops
[virtual]


Returns:
Old mask on success, -1 on error.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::mask_ops ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask,
int  ops
[virtual]


Returns:
Old mask on success, -1 on error.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::mask_ops_i ACE_HANDLE  handle,
ACE_Reactor_Mask  mask,
int  ops
[protected]


Returns:
Old mask on success, -1 on error.

int ACE_Dev_Poll_Reactor::max_notify_iterations void   )  [virtual]


Get the maximum number of times that the ACE_Reactor_Impl will iterate and dispatch the <ace_event_handlers> that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop.

Implements ACE_Reactor_Impl.

void ACE_Dev_Poll_Reactor::max_notify_iterations int   )  [virtual]


Set the maximum number of times that ACE_Reactor_Impl will iterate and dispatch the <ace_event_handlers> that are passed in via the notify queue before breaking out of its <ACE_Message_Queue::dequeue> loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::notify ACE_Event_Handler event_handler = 0,
ACE_Reactor_Mask  mask = ACE_Event_Handler::EXCEPT_MASK,
ACE_Time_Value = 0
[virtual]


Notify <event_handler> of <mask> event. The <ace_time_value> indicates how long to blocking trying to notify. If <timeout> == 0, the caller will block until action is possible, else will wait until the relative time specified in <timeout> elapses).

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::open size_t  size,
int  restart = 0,
ACE_Sig_Handler = 0,
ACE_Timer_Queue = 0,
int  disable_notify_pipe = 0,
ACE_Reactor_Notify = 0
[virtual]


Initialization.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::owner ACE_thread_t owner  )  [virtual]


Return the ID of the "owner" thread.

Note:
There is no need to set the owner of the event loop for the ACE_Dev_Poll_Reactor. Multiple threads may invoke the event loop simulataneously. As such, this method is a no-op.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::owner ACE_thread_t  new_owner,
ACE_thread_t old_owner = 0
[virtual]


Transfers ownership of Reactor_Impl to the new_owner.

Note:
There is no need to set the owner of the event loop for the ACE_Dev_Poll_Reactor. Multiple threads may invoke the event loop simulataneously. As such, this method is a no-op.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::purge_pending_notifications ACE_Event_Handler = 0,
ACE_Reactor_Mask  = ACE_Event_Handler::ALL_EVENTS_MASK
[virtual]


Purge any notifications pending in this reactor for the specified <ace_event_handler> object. Returns the number of notifications purged. Returns -1 on error.

Implements ACE_Reactor_Impl.

short ACE_Dev_Poll_Reactor::reactor_mask_to_poll_event ACE_Reactor_Mask  mask  )  [protected]


Convert a reactor mask to its corresponding poll() event mask.

int ACE_Dev_Poll_Reactor::ready_ops ACE_HANDLE  handle,
ACE_Reactor_Mask  ,
int  ops
[virtual]


GET/SET/ADD/CLR the ready "bit" bound with the handle and mask.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::ready_ops ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask,
int  ops
[virtual]


GET/SET/ADD/CLR the ready "bit" bound with the event_handler and mask.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::register_handler const ACE_Sig_Set sigset,
ACE_Event_Handler new_sh,
ACE_Sig_Action new_disp = 0
[virtual]


Registers <new_sh> to handle a set of signals <sigset> using the <new_disp>.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::register_handler int  signum,
ACE_Event_Handler new_sh,
ACE_Sig_Action new_disp = 0,
ACE_Event_Handler **  old_sh = 0,
ACE_Sig_Action old_disp = 0
[virtual]


Register new_sh to handle the signal signum using the new_disp. Returns the old_sh that was previously registered (if any), along with the old_disp of the signal handler.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::register_handler const ACE_Handle_Set handles,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
[virtual]


Register event_handler> with all the handles> in the Handle_Set.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::register_handler ACE_HANDLE  event_handle,
ACE_HANDLE  io_handle,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
[virtual]


Register an event_handler that will be notified when event_handle is signaled. mask specifies the network events that the event_handler is interested in.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::register_handler ACE_HANDLE  io_handle,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
[virtual]


Register event_handler with mask. The I/O handle is provided through the io_handle parameter.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::register_handler ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
[virtual]


Register event_handler with mask. The I/O handle will always come from get_handle on the event_handler.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::register_handler_i ACE_HANDLE  handle,
ACE_Event_Handler eh,
ACE_Reactor_Mask  mask
[protected]


Register the given event handler with the reactor.

int ACE_Dev_Poll_Reactor::remove_handler const ACE_Sig_Set sigset  )  [virtual]


Calls <remove_handler> for every signal in <sigset>.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::remove_handler int  signum,
ACE_Sig_Action new_disp,
ACE_Sig_Action old_disp = 0,
int  sigkey = -1
[virtual]


Remove the ACE_Event_Handler currently associated with <signum>. Install the new disposition (if given) and return the previous disposition (if desired by the caller). Returns 0 on success and -1 if <signum> is invalid.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::remove_handler const ACE_Handle_Set handle_set,
ACE_Reactor_Mask  mask
[virtual]


Removes all handles in <handle_set>. If <mask> == <ACE_Event_Handler::DONT_CALL> then the <handle_close> method of the associated <event_handler>s is not invoked.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::remove_handler ACE_HANDLE  handle,
ACE_Reactor_Mask  mask
[virtual]


Removes <handle>. If <mask> == <ACE_Event_Handler::DONT_CALL> then the <handle_close> method of the associated <event_handler> is not invoked.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::remove_handler ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
[virtual]


Removes event_handler.

Note:
The I/O handle will be obtained using get_handle() method of event_handler . If mask == ACE_Event_Handler::DONT_CALL then the handle_close() method of the event_handler is not invoked.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::remove_handler_i ACE_HANDLE  handle,
ACE_Reactor_Mask  mask
[protected]


Remove the event handler associated with the given handle and event mask from the "interest set."

int ACE_Dev_Poll_Reactor::requeue_position void   )  [virtual]


Get position of the owner thread.

Note:
This is currently a no-op.

Implements ACE_Reactor_Impl.

void ACE_Dev_Poll_Reactor::requeue_position int   )  [virtual]


Set position of the owner thread.

Note:
This is currently a no-op.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::reset_timer_interval long  timer_id,
const ACE_Time_Value interval
[virtual]


Resets the interval of the timer represented by <timer_id> to <interval>, which is specified in relative time to the current <gettimeofday>. If <interval> is equal to <ACE_Time_Value::zero>, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::restart int  r  )  [virtual]


Set a new value for restart and return the original value.

Parameters:
r If zero, then the event loop will not be automatically restarted if the underlying poll is interrupted via the INTR (interrupt) signal.
Returns:
Returns the previous "restart" value.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::restart void   )  [virtual]


Get the existing restart value.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::resumable_handler void   )  [virtual]


Does the reactor allow the application to resume the handle on its own, i.e., can it pass on the control of handle resumption to the application.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::resume_handler const ACE_Handle_Set handles  )  [virtual]


Resume all handles in handle set.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::resume_handler ACE_HANDLE  handle  )  [virtual]


Resume handle.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::resume_handler ACE_Event_Handler event_handler  )  [virtual]


Resume event_handler. Use ACE_Event_Handler::get_handle() to get the handle.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::resume_handler_i ACE_HANDLE  handle  )  [protected]


Place the given handle that was temporarily removed from the "interest set," i.e that was suspended, back in to the interest set. The given handle will once again be polled for events.

int ACE_Dev_Poll_Reactor::resume_handlers void   )  [virtual]


Resume all handles.

Implements ACE_Reactor_Impl.

long ACE_Dev_Poll_Reactor::schedule_timer ACE_Event_Handler event_handler,
const void *  arg,
const ACE_Time_Value delay,
const ACE_Time_Value interval = ACE_Time_Value::zero
[virtual]


Schedule an ACE_Event_Handler that will expire after an amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call.

See also:
cancel_timer()

reset_timer_interval()

Parameters:
event_handler event handler to schedule on reactor
arg argument passed to the handle_timeout() method of event_handler
delay time interval after which the timer will expire
interval time interval after which the timer will be automatically rescheduled
Returns:
-1 on failure, a timer_id value on success

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::schedule_wakeup ACE_HANDLE  handle,
ACE_Reactor_Mask  masks_to_be_added
[virtual]


Add <masks_to_be_added> to the <handle>'s entry. <event_handler> associated with <handle> must already have been registered.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::schedule_wakeup ACE_Event_Handler event_handler,
ACE_Reactor_Mask  masks_to_be_added
[virtual]


Add <masks_to_be_added> to the <event_handler>'s entry. <event_handler> must already have been registered.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::set_sig_handler ACE_Sig_Handler signal_handler  )  [virtual]


Use a user specified signal handler instead.

Implements ACE_Reactor_Impl.

size_t ACE_Dev_Poll_Reactor::size void   )  const [virtual]


Returns the current size of the Reactor's internal descriptor table.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::suspend_handler const ACE_Handle_Set handles  )  [virtual]


Suspend all handles in handle set temporarily.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::suspend_handler ACE_HANDLE  handle  )  [virtual]


Suspend handle temporarily.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::suspend_handler ACE_Event_Handler event_handler  )  [virtual]


Suspend event_handler temporarily. Use ACE_Event_Handler::get_handle() to get the handle.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::suspend_handler_i ACE_HANDLE  handle  )  [protected]


Temporarily remove the given handle from the "interest set.".

int ACE_Dev_Poll_Reactor::suspend_handlers void   )  [virtual]


Suspend all handles temporarily.

Implements ACE_Reactor_Impl.

ACE_Timer_Queue * ACE_Dev_Poll_Reactor::timer_queue void   )  const [virtual]


Get the timer queue

Returns:
The current ACE_Timer_Queue.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::timer_queue ACE_Timer_Queue tq  )  [virtual]


Set a user-specified timer queue.

Implements ACE_Reactor_Impl.

ACE_INLINE int ACE_Dev_Poll_Reactor::upcall ACE_Event_Handler event_handler,
int(ACE_Event_Handler::*)(ACE_HANDLE callback,
ACE_HANDLE  handle
[protected]


Perform the upcall with the given event handler method.

int ACE_Dev_Poll_Reactor::uses_event_associations void   )  [virtual]


Return 1 if we any event associations were made by the reactor for the handles that it waits on, 0 otherwise.

Implements ACE_Reactor_Impl.

void ACE_Dev_Poll_Reactor::wakeup_all_threads void   )  [virtual]


Wake up all threads waiting in the event loop.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::work_pending const ACE_Time_Value max_wait_time = ACE_Time_Value::zero  )  [virtual]


Returns non-zero if there are I/O events "ready" for dispatching, but does not actually dispatch the event handlers. By default, don't block while checking this, i.e., "poll".

Note:
It is only possible to achieve millisecond timeout resolutions with the ACE_Dev_Poll_Reactor.

Implements ACE_Reactor_Impl.

int ACE_Dev_Poll_Reactor::work_pending_i ACE_Time_Value max_wait_time  )  [protected]


Non-locking version of wait_pending().

Returns non-zero if there are I/O events "ready" for dispatching, but does not actually dispatch the event handlers. By default, don't block while checking this, i.e., "poll".

Note:
It is only possible to achieve millisecond timeout resolutions with the ACE_Dev_Poll_Reactor.


Member Data Documentation

ACE_Dev_Poll_Reactor::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_Reactor_Impl.

sig_atomic_t ACE_Dev_Poll_Reactor::deactivated_ [protected]


This flag is used to keep track of whether we are actively handling events or not.

int ACE_Dev_Poll_Reactor::delete_notify_handler_ [protected]


Keeps track of whether we need to delete the notify handler (if we didn't create it, then we don't delete it).

int ACE_Dev_Poll_Reactor::delete_signal_handler_ [protected]


Keeps track of whether we should delete the signal handler (if we didn't create it, then we don't delete it).

int ACE_Dev_Poll_Reactor::delete_timer_queue_ [protected]


Keeps track of whether we should delete the timer queue (if we didn't create it, then we don't delete it).

struct epoll_event* ACE_Dev_Poll_Reactor::end_pevents_ [protected]


The last element in the event array plus one.

The loop that dispatches IO events stops when this->start_pevents_ == this->end_pevents_.

struct epoll_event* ACE_Dev_Poll_Reactor::events_ [protected]


Table of event structures to be filled by epoll_wait:.

Track HANDLES we are interested in for various events that must be dispatched *without* polling. ACE_Dev_Poll_Ready_Set ready_set_;

ACE_Dev_Poll_Reactor_Handler_Repository ACE_Dev_Poll_Reactor::handler_rep_ [protected]


The repository that contains all registered event handlers.

bool ACE_Dev_Poll_Reactor::initialized_ [protected]


Has the reactor been initialized.

ACE_SYNCH_MUTEX ACE_Dev_Poll_Reactor::lock_ [protected]


Lock used for synchronization of reactor state.

ACE_Lock_Adapter<ACE_SYNCH_MUTEX> ACE_Dev_Poll_Reactor::lock_adapter_ [protected]


Adapter used to return internal lock to outside world.

int ACE_Dev_Poll_Reactor::mask_signals_ [protected]


If 0 then the Reactor will not mask the signals during the event dispatching. This is useful for applications that do not register any signal handlers and want to reduce the overhead introduce by the kernel level locks required to change the mask.

ACE_Reactor_Notify* ACE_Dev_Poll_Reactor::notify_handler_ [protected]


Callback object that unblocks the <ace_select_reactor> if it's sleeping.

ACE_HANDLE ACE_Dev_Poll_Reactor::poll_fd_ [protected]


All interactions with the `/dev/poll' or `/dev/epoll' device are done through this file descriptor.

int ACE_Dev_Poll_Reactor::restart_ [protected]


Restart the handle_events event loop method automatically when polling function in use (ioctl() in this case) is interrupted via an EINTR signal.

ACE_Sig_Handler* ACE_Dev_Poll_Reactor::signal_handler_ [protected]


Handle signals without requiring global/static variables.

size_t ACE_Dev_Poll_Reactor::size_ [protected]


The maximum number of file descriptors over which demultiplexing will occur.

struct epoll_event* ACE_Dev_Poll_Reactor::start_pevents_ [protected]


Pointer to the next epoll_event array element that contains the next event to be dispatched.

ACE_Timer_Queue* ACE_Dev_Poll_Reactor::timer_queue_ [protected]


Defined as a pointer to allow overriding by derived classes...


The documentation for this class was generated from the following files:
Generated on Thu Feb 10 20:36:23 2005 for ACE by  doxygen 1.3.9.1
