PortableServer.pidl File Reference

Pre-compiled IDL source for the PortableServer module. More...

#include <orb.idl>
import "Current.pidl";
import "OctetSeq.pidl";

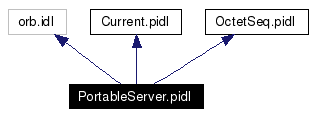

Include dependency graph for PortableServer.pidl:

Namespaces
namespace	PortableServer
Classes
exception	PortableServer::ForwardRequest
exception	PortableServer::NotAGroupObject
interface	PortableServer::ThreadPolicy
interface	PortableServer::LifespanPolicy
interface	PortableServer::IdUniquenessPolicy
interface	PortableServer::IdAssignmentPolicy
interface	PortableServer::ImplicitActivationPolicy
interface	PortableServer::ServantRetentionPolicy
interface	PortableServer::RequestProcessingPolicy
interface	PortableServer::POAManager
exception	PortableServer::POAManager::AdapterInactive
interface	PortableServer::AdapterActivator
interface	PortableServer::ServantManager
interface	PortableServer::ServantActivator
interface	PortableServer::ServantLocator
interface	PortableServer::POA
exception	PortableServer::POA::AdapterAlreadyExists
exception	PortableServer::POA::AdapterNonExistent
exception	PortableServer::POA::InvalidPolicy
exception	PortableServer::POA::NoServant
exception	PortableServer::POA::ObjectAlreadyActive
exception	PortableServer::POA::ObjectNotActive
exception	PortableServer::POA::ServantAlreadyActive
exception	PortableServer::POA::ServantNotActive
exception	PortableServer::POA::WrongAdapter
exception	PortableServer::POA::WrongPolicy
interface	PortableServer::Current
exception	PortableServer::Current::NoContext
Typedefs
typedef sequence< POA >	POAList
typedef CORBA::OctetSeq	ObjectId
typedef sequence< ObjectId >	IDs
Enumerations
enum	ThreadPolicyValue { ORB_CTRL_MODEL, SINGLE_THREAD_MODEL }
enum	LifespanPolicyValue { TRANSIENT, PERSISTENT }
enum	IdUniquenessPolicyValue { UNIQUE_ID, MULTIPLE_ID }
enum	IdAssignmentPolicyValue { USER_ID, SYSTEM_ID }
enum	ImplicitActivationPolicyValue { IMPLICIT_ACTIVATION, NO_IMPLICIT_ACTIVATION }
enum	ServantRetentionPolicyValue { RETAIN, NON_RETAIN }
enum	RequestProcessingPolicyValue { USE_ACTIVE_OBJECT_MAP_ONLY, USE_DEFAULT_SERVANT, USE_SERVANT_MANAGER }
Variables
native	Servant
const CORBA::PolicyType	THREAD_POLICY_ID = 16
const CORBA::PolicyType	LIFESPAN_POLICY_ID = 17
const CORBA::PolicyType	ID_UNIQUENESS_POLICY_ID = 18
const CORBA::PolicyType	ID_ASSIGNMENT_POLICY_ID = 19
const CORBA::PolicyType	IMPLICIT_ACTIVATION_POLICY_ID = 20
const CORBA::PolicyType	SERVANT_RETENTION_POLICY_ID = 21
const CORBA::PolicyType	REQUEST_PROCESSING_POLICY_ID = 22

---

Detailed Description

Pre-compiled IDL source for the PortableServer module.

Id

PortableServer.pidl,v 1.15 2004/08/27 07:19:41 jwillemsen Exp

This file was used to generate the code in PortableServerC.{h,i,cpp}, using the following command:

tao_idl.exe \ -o orig -Gp -Gd -Ge 1 -GT -Sc -GA -I/project/taotmp/bala/work/ACE+TAO/ACE_wrappers/TAO -Wb,export_macro=TAO_PortableServer_Export \ -Wb,export_include="portableserver_export.h" \ -Wb,pre_include="ace/pre.h" \ -Wb,post_include="ace/post.h" \ PortableServer.pidl

After the file is generated a patch from the diffs directory must be applied. The patch:

• Disables parts of the code under certain configurations.

• Eliminates cycles in the include dependencies.

• Adds non-idl components of PortableServer to the namespace. This includes (a) Servant (b) ServantBase (c) RefCountServantBase (d) Cookie (e) ObjectId_to_string (f) string_to_ObjectId (g) ObjectId_to_wstring (h) wstring_to_ObjectId (i) ServantBase_var (j) DynamicImplementation (k) LocalServantBase

Apply patches using the following command:

patch < diffs/PortableServer.diff

Note: The diffs were generated using:

rm diffs/PortableServer.diff for i in PortableServerC.{h,i,cpp}; do diff -wub orig/$i $i >> diffs/PortableServer.diff done

---

Typedef Documentation

typedef sequence<ObjectId> PortableServer::IDs

typedef CORBA::OctetSeq PortableServer::ObjectId

typedef sequence<POA> PortableServer::POAList

---

Enumeration Type Documentation

enum IdAssignmentPolicyValue

Enumeration values: USER_ID  SYSTEM_ID

enum IdUniquenessPolicyValue

Enumeration values: UNIQUE_ID  MULTIPLE_ID

enum ImplicitActivationPolicyValue

Enumeration values: IMPLICIT_ACTIVATION  NO_IMPLICIT_ACTIVATION

enum LifespanPolicyValue

Enumeration values: TRANSIENT  PERSISTENT

enum RequestProcessingPolicyValue

Enumeration values: USE_ACTIVE_OBJECT_MAP_ONLY  USE_DEFAULT_SERVANT  USE_SERVANT_MANAGER

enum ServantRetentionPolicyValue

Enumeration values: RETAIN  NON_RETAIN

enum ThreadPolicyValue

Enumeration values: ORB_CTRL_MODEL  SINGLE_THREAD_MODEL

---

Variable Documentation

const CORBA::PolicyType PortableServer::ID_ASSIGNMENT_POLICY_ID = 19

const CORBA::PolicyType PortableServer::ID_UNIQUENESS_POLICY_ID = 18

const CORBA::PolicyType PortableServer::IMPLICIT_ACTIVATION_POLICY_ID = 20

const CORBA::PolicyType PortableServer::LIFESPAN_POLICY_ID = 17

const CORBA::PolicyType PortableServer::REQUEST_PROCESSING_POLICY_ID = 22

typedef ServantBase * PortableServer::Servant

const CORBA::PolicyType PortableServer::SERVANT_RETENTION_POLICY_ID = 21

const CORBA::PolicyType PortableServer::THREAD_POLICY_ID = 16

---
