TAO_UIPMC_Endpoint Class Reference

TAO_UIPMC_Endpoint. More...

#include <UIPMC_Endpoint.h>

Inheritance diagram for TAO_UIPMC_Endpoint:

Inheritance graph
[legend]

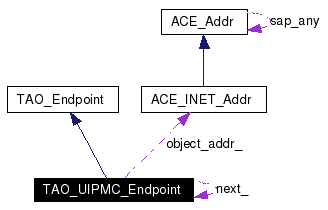

Collaboration diagram for TAO_UIPMC_Endpoint:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_UIPMC_Endpoint (void)
 Default constructor.
 TAO_UIPMC_Endpoint (const ACE_INET_Addr &addr)
 Constructor.
 TAO_UIPMC_Endpoint (const CORBA::Octet class_d_address[4], CORBA::UShort port)
 Constructor. Frank - deprecate this.
 ~TAO_UIPMC_Endpoint (void)
 Destructor.
virtual TAO_Endpointnext (void)
virtual int addr_to_string (char *buffer, size_t length)
virtual TAO_Endpointduplicate (void)
 Makes a copy of <this>.
CORBA::Boolean is_equivalent (const TAO_Endpoint *other_endpoint)
CORBA::ULong hash (void)
 Return a hash value for this object.
const ACE_INET_Addrobject_addr (void) const
 Return a reference to the <object_addr>.
void object_addr (const ACE_INET_Addr &addr)
 Set the IP multicast address and port.
const char * get_host_addr (void) const
CORBA::UShort port (void) const
 Return the port number.
CORBA::UShort port (CORBA::UShort p)
 Set the port number.

Private Member Functions

ACE_UINT32 uint_ip_addr (void) const
 Helper methods for getting and setting the IP address.
void uint_ip_addr (ACE_UINT32 ip_addr)
void update_object_addr (void)
 Helper method to update the cached object address.

Private Attributes

CORBA::Octet class_d_address_ [4]
 IP Multicast address. Frank - deprecate this.
CORBA::UShort port_
 UDP port number. Frank - deprecate this.
ACE_INET_Addr object_addr_
TAO_UIPMC_Endpointnext_

Detailed Description

TAO_UIPMC_Endpoint.

UIPMC-specific implementation of PP Framework Endpoint interface.


Constructor & Destructor Documentation

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint void   )


Default constructor.

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint const ACE_INET_Addr addr  )


Constructor.

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint const CORBA::Octet  class_d_address[4],
CORBA::UShort  port


Constructor. Frank - deprecate this.

@

TAO_UIPMC_Endpoint::~TAO_UIPMC_Endpoint void   )


Destructor.


Member Function Documentation

int TAO_UIPMC_Endpoint::addr_to_string char *  buffer,
size_t  length
[virtual]


Implements TAO_Endpoint.

TAO_Endpoint * TAO_UIPMC_Endpoint::duplicate void   )  [virtual]


Makes a copy of <this>.

Implements TAO_Endpoint.

const char * TAO_UIPMC_Endpoint::get_host_addr void   )  const


Return a pointer to the stringified host address (not including the port). This class retains ownership of the address memory.

CORBA::ULong TAO_UIPMC_Endpoint::hash void   )  [virtual]


Return a hash value for this object.

Implements TAO_Endpoint.

CORBA::Boolean TAO_UIPMC_Endpoint::is_equivalent const TAO_Endpoint other_endpoint  )  [virtual]


Return true if this endpoint is equivalent to <other_endpoint>. Two endpoints are equivalent iff their port and host are the same.

Implements TAO_Endpoint.

TAO_Endpoint * TAO_UIPMC_Endpoint::next void   )  [virtual]


Implements TAO_Endpoint.

void TAO_UIPMC_Endpoint::object_addr const ACE_INET_Addr addr  )


Set the IP multicast address and port.

ACE_INLINE const ACE_INET_Addr & TAO_UIPMC_Endpoint::object_addr void   )  const


Return a reference to the <object_addr>.

ACE_INLINE CORBA::UShort TAO_UIPMC_Endpoint::port CORBA::UShort  p  )


Set the port number.

ACE_INLINE CORBA::UShort TAO_UIPMC_Endpoint::port void   )  const


Return the port number.

ACE_INLINE void TAO_UIPMC_Endpoint::uint_ip_addr ACE_UINT32  ip_addr  )  [private]


ACE_INLINE ACE_UINT32 TAO_UIPMC_Endpoint::uint_ip_addr void   )  const [private]


Helper methods for getting and setting the IP address.

ACE_INLINE void TAO_UIPMC_Endpoint::update_object_addr void   )  [private]


Helper method to update the cached object address.


Member Data Documentation

CORBA::Octet TAO_UIPMC_Endpoint::class_d_address_[4] [private]


IP Multicast address. Frank - deprecate this.

@

TAO_UIPMC_Endpoint* TAO_UIPMC_Endpoint::next_ [private]


UIPMC Endpoints can be stringed into a list. Return the next endpoint in the list, if any.

ACE_INET_Addr TAO_UIPMC_Endpoint::object_addr_ [private]


Cached instance of <ace_inet_addr> for use in making invocations, etc.

CORBA::UShort TAO_UIPMC_Endpoint::port_ [private]


UDP port number. Frank - deprecate this.

@


The documentation for this class was generated from the following files:
Generated on Fri Dec 31 16:35:12 2004 for TAO_PortableGroup by  doxygen 1.3.9.1
