TAO_CEC_TypedProxyPushConsumer Class Reference

#include <CEC_TypedProxyPushConsumer.h>

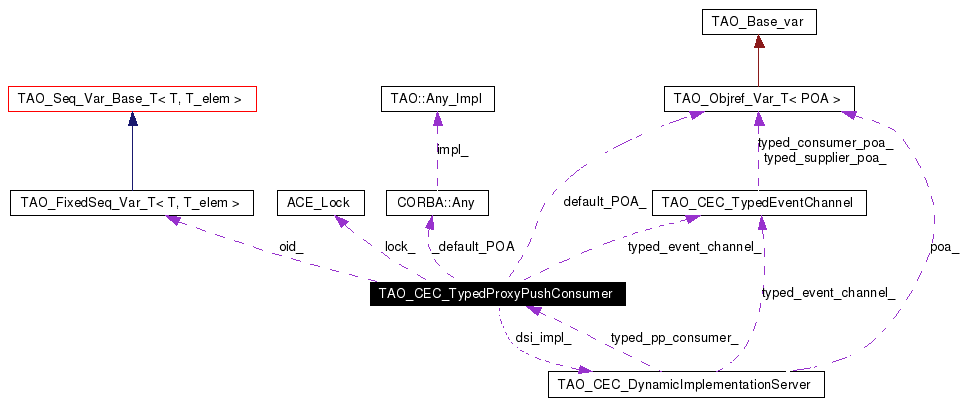

Collaboration diagram for TAO_CEC_TypedProxyPushConsumer:

[legend]List of all members.

Public Types
typedef CosTypedEventChannelAdmin::TypedProxyPushConsumer_ptr	_ptr_type
typedef CosTypedEventChannelAdmin::TypedProxyPushConsumer_var	_var_type
Public Member Functions
	TAO_CEC_TypedProxyPushConsumer (TAO_CEC_TypedEventChannel *typed_event_channel)
virtual	~TAO_CEC_TypedProxyPushConsumer (void)
virtual void	shutdown (ACE_ENV_SINGLE_ARG_DECL_NOT_USED)
	The event channel is shutting down.
CORBA::ULong	_incr_refcnt (void)
	Increment and decrement the reference count.
CORBA::ULong	_decr_refcnt (void)
virtual void	_add_ref (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
virtual void	_remove_ref (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
Public Attributes
virtual void virtual activate(CosTypedEventChannelAdmin::TypedProxyPushConsumer_ptr &activated_proxy ACE_ENV_ARG_DECL) ACE_THROW_SPEC((CORBA void deactivate(ACE_ENV_SINGLE_ARG_DECL) ACE_THROW_SPEC((CORBA CORBA::Boolea	supplier_non_existent )(CORBA::Boolean_out disconnected ACE_ENV_ARG_DECL)
	Deactivate from the POA.
virtual void virtual connect_push_supplier(CosEventComm::PushSupplier_ptr push_supplier ACE_ENV_ARG_DECL_NOT_USED) ACE_THROW_SPEC((CORBA void virtual push(const CORBA::Any &event ACE_ENV_ARG_DECL_NOT_USED) ACE_THROW_SPEC((CORBA void virtual invoke(const TAO_CEC_TypedEvent &typed_event ACE_ENV_ARG_DECL) ACE_THROW_SPEC((CORBA void virtual disconnect_push_consumer(ACE_ENV_SINGLE_ARG_DECL_NOT_USED) ACE_THROW_SPEC((CORBA CORBA::Object_ptr virtual get_typed_consumer(ACE_ENV_SINGLE_ARG_DECL_NOT_USED) ACE_THROW_SPEC((CORBA PortableServer::POA_pt	_default_POA )(ACE_ENV_SINGLE_ARG_DECL)
Protected Member Functions
CORBA::Boolean	is_connected_i (void) const
	The private version (without locking) of is_connected().
void	cleanup_i (void)
	Release the supplier.
Private Attributes
TAO_CEC_TypedEventChannel *	typed_event_channel_
	The typed supplier admin, used for activation and memory managment.
ACE_Lock *	lock_
	The locking strategy.
CORBA::ULong	refcount_
	The reference count.
CosEventComm::PushSupplier_var	typed_supplier_
	The typed supplier....
TAO_CEC_DynamicImplementationServer *	dsi_impl_
	The DSI impl.
PortableServer::ObjectId_var	oid_
	The DSI Portable Server OID.
int	connected_
PortableServer::POA_var	default_POA_
	Store the default POA.
Friends
class	TAO_CEC_TypedProxyPushConsumer_Guard

---

Member Typedef Documentation

typedef CosTypedEventChannelAdmin::TypedProxyPushConsumer_ptr TAO_CEC_TypedProxyPushConsumer::_ptr_type

typedef CosTypedEventChannelAdmin::TypedProxyPushConsumer_var TAO_CEC_TypedProxyPushConsumer::_var_type

---

Constructor & Destructor Documentation

TAO_CEC_TypedProxyPushConsumer::TAO_CEC_TypedProxyPushConsumer (  TAO_CEC_TypedEventChannel *  typed_event_channel  )

TAO_CEC_TypedProxyPushConsumer::~TAO_CEC_TypedProxyPushConsumer (  void   )  [virtual]

---

Member Function Documentation

virtual void TAO_CEC_TypedProxyPushConsumer::_add_ref (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  [virtual]

CORBA::ULong TAO_CEC_TypedProxyPushConsumer::_decr_refcnt (  void   )

CORBA::ULong TAO_CEC_TypedProxyPushConsumer::_incr_refcnt (  void   )

Increment and decrement the reference count.

virtual void TAO_CEC_TypedProxyPushConsumer::_remove_ref (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  [virtual]

void TAO_CEC_TypedProxyPushConsumer::cleanup_i (  void   )  [protected]

Release the supplier.

ACE_INLINE CORBA::Boolean TAO_CEC_TypedProxyPushConsumer::is_connected_i (  void   )  const [protected]

The private version (without locking) of is_connected().

void TAO_CEC_TypedProxyPushConsumer::shutdown (  ACE_ENV_SINGLE_ARG_DECL_NOT_USED   )  [virtual]

The event channel is shutting down.

---

Friends And Related Function Documentation

friend class TAO_CEC_TypedProxyPushConsumer_Guard [friend]

---

Member Data Documentation

PortableServer::POA_ptr TAO_CEC_TypedProxyPushConsumer::_default_POA

int TAO_CEC_TypedProxyPushConsumer::connected_ [private]

If the flag is not zero then we are connected, notice that the supplier can be nil.

PortableServer::POA_var TAO_CEC_TypedProxyPushConsumer::default_POA_ [private]

Store the default POA.

TAO_CEC_DynamicImplementationServer* TAO_CEC_TypedProxyPushConsumer::dsi_impl_ [private]

The DSI impl.

ACE_Lock* TAO_CEC_TypedProxyPushConsumer::lock_ [private]

The locking strategy.

PortableServer::ObjectId_var TAO_CEC_TypedProxyPushConsumer::oid_ [private]

The DSI Portable Server OID.

CORBA::ULong TAO_CEC_TypedProxyPushConsumer::refcount_ [private]

The reference count.

CORBA::Boolean TAO_CEC_TypedProxyPushConsumer::supplier_non_existent

Deactivate from the POA. Invoke the _non_existent() pseudo-operation on the supplier. If it is disconnected then it returns true and sets the <disconnected> flag.

TAO_CEC_TypedEventChannel* TAO_CEC_TypedProxyPushConsumer::typed_event_channel_ [private]

The typed supplier admin, used for activation and memory managment.

CosEventComm::PushSupplier_var TAO_CEC_TypedProxyPushConsumer::typed_supplier_ [private]

The typed supplier....

---

The documentation for this class was generated from the following files:

• CEC_TypedProxyPushConsumer.h
• CEC_TypedProxyPushConsumer.cpp
• CEC_TypedProxyPushConsumer.i

---
