TAO_CEC_MT_Dispatching Class Reference

Dispatching strategy that minimizes mt inversion. More...

#include <CEC_MT_Dispatching.h>

Inheritance diagram for TAO_CEC_MT_Dispatching:

Inheritance graph
[legend]

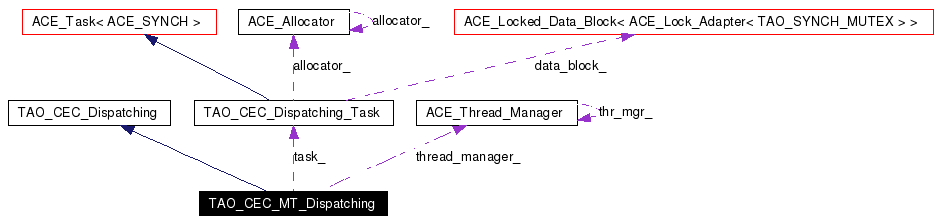

Collaboration diagram for TAO_CEC_MT_Dispatching:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_CEC_MT_Dispatching (int nthreads, int thread_creation_flags, int thread_priority, int force_activate)
virtual void activate (void)
virtual void shutdown (void)
virtual void push (TAO_CEC_ProxyPushSupplier *proxy, const CORBA::Any &event ACE_ENV_ARG_DECL)
 The consumer represented by <proxy> should receive <event>.
virtual void push_nocopy (TAO_CEC_ProxyPushSupplier *proxy, CORBA::Any &event ACE_ENV_ARG_DECL)

Private Attributes

ACE_Thread_Manager thread_manager_
 Use our own thread manager.
int nthreads_
 The number of active tasks.
int thread_creation_flags_
int thread_priority_
 The priority of the dispatching threads.
int force_activate_
TAO_CEC_Dispatching_Task task_
 The dispatching task.
TAO_SYNCH_MUTEX lock_
 Synchronize access to internal data.
int active_
 Are the threads running?

Detailed Description

Dispatching strategy that minimizes mt inversion.

This strategy uses a single queue, serviced by one or more threads. It's main purpose is to decouple the suppliers from the client execution time, specially in the collocated case.


Constructor & Destructor Documentation

TAO_CEC_MT_Dispatching::TAO_CEC_MT_Dispatching int  nthreads,
int  thread_creation_flags,
int  thread_priority,
int  force_activate


Constructor It will create <nthreads> servicing threads...


Member Function Documentation

void TAO_CEC_MT_Dispatching::activate void   )  [virtual]


Initialize all the data structures, activate any internal threads, etc.

Implements TAO_CEC_Dispatching.

void TAO_CEC_MT_Dispatching::push TAO_CEC_ProxyPushSupplier proxy,
const CORBA::Any &event  ACE_ENV_ARG_DECL
[virtual]


The consumer represented by <proxy> should receive <event>.

Implements TAO_CEC_Dispatching.

void TAO_CEC_MT_Dispatching::push_nocopy TAO_CEC_ProxyPushSupplier proxy,
CORBA::Any &event  ACE_ENV_ARG_DECL
[virtual]


Implements TAO_CEC_Dispatching.

void TAO_CEC_MT_Dispatching::shutdown void   )  [virtual]


Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implements TAO_CEC_Dispatching.


Member Data Documentation

int TAO_CEC_MT_Dispatching::active_ [private]


Are the threads running?

int TAO_CEC_MT_Dispatching::force_activate_ [private]


If activation at the requested priority fails then we fallback on the defaults for thread activation.

TAO_SYNCH_MUTEX TAO_CEC_MT_Dispatching::lock_ [private]


Synchronize access to internal data.

int TAO_CEC_MT_Dispatching::nthreads_ [private]


The number of active tasks.

TAO_CEC_Dispatching_Task TAO_CEC_MT_Dispatching::task_ [private]


The dispatching task.

int TAO_CEC_MT_Dispatching::thread_creation_flags_ [private]


The flags (THR_BOUND, THR_NEW_LWP, etc.) used to create the dispatching threads.

ACE_Thread_Manager TAO_CEC_MT_Dispatching::thread_manager_ [private]


Use our own thread manager.

int TAO_CEC_MT_Dispatching::thread_priority_ [private]


The priority of the dispatching threads.


The documentation for this class was generated from the following files:
