TAO_Transport_Mux_Strategy Class Reference

Strategy to determine whether the connection should be multiplexed for multiple requests or it is exclusive for a single request at a time. More...

#include <Transport_Mux_Strategy.h>

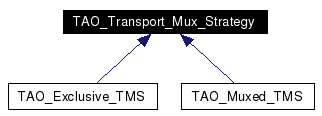

Inheritance diagram for TAO_Transport_Mux_Strategy:

Inheritance graph
[legend]

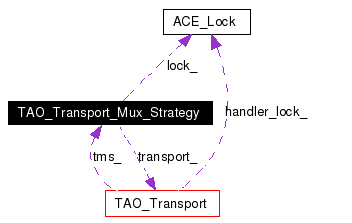

Collaboration diagram for TAO_Transport_Mux_Strategy:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_Transport_Mux_Strategy (TAO_Transport *transport)
 Base class constructor.
virtual ~TAO_Transport_Mux_Strategy (void)
 Base class destructor.
virtual CORBA::ULong request_id (void)=0
virtual int bind_dispatcher (CORBA::ULong request_id, TAO_Reply_Dispatcher *rd)=0
virtual int unbind_dispatcher (CORBA::ULong request_id)=0
virtual int dispatch_reply (TAO_Pluggable_Reply_Params &params)=0
virtual bool idle_after_send (void)=0
virtual bool idle_after_reply (void)=0
virtual void connection_closed (void)=0

Protected Attributes

TAO_Transporttransport_
 Cache the transport reference.
ACE_Locklock_
 Lock to protect the state of the object.

Detailed Description

Strategy to determine whether the connection should be multiplexed for multiple requests or it is exclusive for a single request at a time.


Constructor & Destructor Documentation

TAO_Transport_Mux_Strategy::TAO_Transport_Mux_Strategy TAO_Transport transport  )


Base class constructor.

TAO_Transport_Mux_Strategy::~TAO_Transport_Mux_Strategy void   )  [virtual]


Base class destructor.


Member Function Documentation

virtual int TAO_Transport_Mux_Strategy::bind_dispatcher CORBA::ULong  request_id,
TAO_Reply_Dispatcher rd
[pure virtual]


Bind the dispatcher with the request id. Commonalities in the derived class implementations is kept here.

Implemented in TAO_Exclusive_TMS, and TAO_Muxed_TMS.

virtual void TAO_Transport_Mux_Strategy::connection_closed void   )  [pure virtual]


The transport object has closed the connection, inform all Reply dispatchers and waiting strategies.

Implemented in TAO_Exclusive_TMS, and TAO_Muxed_TMS.

virtual int TAO_Transport_Mux_Strategy::dispatch_reply TAO_Pluggable_Reply_Params params  )  [pure virtual]


Dispatch the reply for <request_id>, cleanup any resources allocated for that request.

Implemented in TAO_Exclusive_TMS, and TAO_Muxed_TMS.

virtual bool TAO_Transport_Mux_Strategy::idle_after_reply void   )  [pure virtual]


Request is sent and the reply is received. Idle the transport now. The return value indicates whether idling was successful or not.

Implemented in TAO_Exclusive_TMS, and TAO_Muxed_TMS.

virtual bool TAO_Transport_Mux_Strategy::idle_after_send void   )  [pure virtual]


Request has been just sent, but the reply is not received. Idle the transport now. The return value indicates whether idling was successful or not.

Implemented in TAO_Exclusive_TMS, and TAO_Muxed_TMS.

virtual CORBA::ULong TAO_Transport_Mux_Strategy::request_id void   )  [pure virtual]


Generate and return an unique request id for the current invocation.

Implemented in TAO_Exclusive_TMS, and TAO_Muxed_TMS.

virtual int TAO_Transport_Mux_Strategy::unbind_dispatcher CORBA::ULong  request_id  )  [pure virtual]


Unbind the dispatcher, the client is no longer waiting for the request, for example, because the request timedout. The strategy can (must) cleanup any resources associated with the request. A later reply for that request should be ignored.

Implemented in TAO_Exclusive_TMS, and TAO_Muxed_TMS.


Member Data Documentation

ACE_Lock* TAO_Transport_Mux_Strategy::lock_ [protected]


Lock to protect the state of the object.

TAO_Transport* TAO_Transport_Mux_Strategy::transport_ [protected]


Cache the transport reference.


The documentation for this class was generated from the following files:
