TAO_Queued_Data Class Reference

Represents a node in the queue of incoming messages. More...

#include <Incoming_Message_Queue.h>

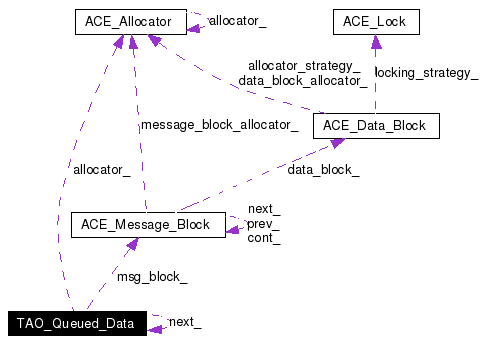

Collaboration diagram for TAO_Queued_Data:

[legend]List of all members.

Public Member Functions
	TAO_Queued_Data (ACE_Allocator *alloc=0)
	Default Constructor.
	TAO_Queued_Data (ACE_Message_Block *mb, ACE_Allocator *alloc=0)
	Constructor.
	TAO_Queued_Data (const TAO_Queued_Data &qd)
	Copy constructor.
Static Public Member Functions
TAO_Queued_Data *	get_queued_data (ACE_Allocator *alloc=0)
	Creation and deletion of a node in the queue.
void	release (TAO_Queued_Data *qd)
TAO_Queued_Data *	duplicate (TAO_Queued_Data &qd)
Public Attributes
ACE_Message_Block *	msg_block_
	The message block that contains the message.
CORBA::Long	missing_data_
CORBA::Octet	byte_order_
	The byte order of the message that is stored in the node..
CORBA::Octet	major_version_
CORBA::Octet	minor_version_
CORBA::Octet	more_fragments_
TAO_Pluggable_Message_Type	msg_type_
	The message type of the message.
TAO_Queued_Data *	next_
	Pounter to the next element in the queue.
Static Private Member Functions
void	replace_data_block (ACE_Message_Block &mb)
Private Attributes
ACE_Allocator *	allocator_
	The allocator used to allocate this class.

---

Detailed Description

Represents a node in the queue of incoming messages.

This class contains necessary information about a message that is stored in the queue. Such a node can be used by the incoming thread from the reactor to dequeue and process the message by sending it to the higher layers of the ORB.

---

Constructor & Destructor Documentation

TAO_Queued_Data::TAO_Queued_Data (  ACE_Allocator *  alloc = 0  )

Default Constructor.

TAO_Queued_Data::TAO_Queued_Data (  ACE_Message_Block *  mb, ACE_Allocator *  alloc = 0 )

Constructor.

TAO_Queued_Data::TAO_Queued_Data (  const TAO_Queued_Data &  qd  )

Copy constructor.

---

Member Function Documentation

TAO_Queued_Data * TAO_Queued_Data::duplicate (  TAO_Queued_Data &  qd  )  [static]

Duplicate ourselves. This creates a copy of ourselves on the heap and returns a pointer to the duplicated node.

TAO_Queued_Data * TAO_Queued_Data::get_queued_data (  ACE_Allocator *  alloc = 0  )  [static]

Creation and deletion of a node in the queue.

void TAO_Queued_Data::release (  TAO_Queued_Data *  qd  )  [static]

ACE_INLINE void TAO_Queued_Data::replace_data_block (  ACE_Message_Block &  mb  )  [static, private]

Replace the datablock with a one allocated on the heap or allocator

---

Member Data Documentation

ACE_Allocator* TAO_Queued_Data::allocator_ [private]

The allocator used to allocate this class.

CORBA::Octet TAO_Queued_Data::byte_order_

The byte order of the message that is stored in the node..

CORBA::Octet TAO_Queued_Data::major_version_

Many protocols like GIOP have a major and minor version information that would be needed to read and decipher the message.

CORBA::Octet TAO_Queued_Data::minor_version_

CORBA::Long TAO_Queued_Data::missing_data_

Data missing in the above message that hasn't been read or processed yet.

CORBA::Octet TAO_Queued_Data::more_fragments_

Some messages can be fragmented by the protocol (this is an ORB level fragmentation on top of the TCP/IP fragmentation. This member indicates whether the message that we have recd. and queue already has more fragments that is missing..

ACE_Message_Block* TAO_Queued_Data::msg_block_

The message block that contains the message.

TAO_Pluggable_Message_Type TAO_Queued_Data::msg_type_

The message type of the message.

TAO_Queued_Data* TAO_Queued_Data::next_

Pounter to the next element in the queue.

---

The documentation for this class was generated from the following files:

• Incoming_Message_Queue.h
• Incoming_Message_Queue.cpp
• Incoming_Message_Queue.inl

---
