TAO_IIOP_Endpoint Class Reference

TAO_IIOP_Endpoint. More...

#include <IIOP_Endpoint.h>

Inheritance diagram for TAO_IIOP_Endpoint:

Inheritance graph
[legend]

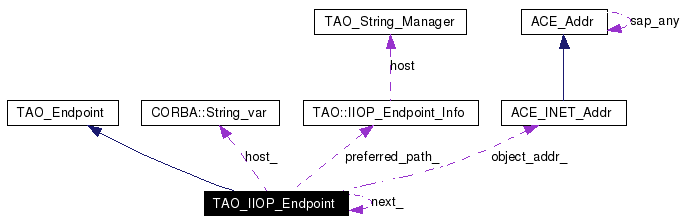

Collaboration diagram for TAO_IIOP_Endpoint:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_IIOP_Endpoint (void)
 Default constructor.
 TAO_IIOP_Endpoint (const char *host, CORBA::UShort port, const ACE_INET_Addr &addr, CORBA::Short priority=TAO_INVALID_PRIORITY)
 TAO_IIOP_Endpoint (const ACE_INET_Addr &addr, int use_dotted_decimal_addresses)
 Constructor.
 TAO_IIOP_Endpoint (const char *host, CORBA::UShort port, CORBA::Short priority)
 Constructor. This constructor is used when decoding endpoints.
 ~TAO_IIOP_Endpoint (void)
 Destructor.
virtual TAO_Endpointnext (void)
 Endpoints can be stringed in a list.
virtual int addr_to_string (char *buffer, size_t length)
 Return a string representation for the address.
virtual TAO_Endpointduplicate (void)
 Makes a copy of this.
virtual CORBA::Boolean is_equivalent (const TAO_Endpoint *other_endpoint)
virtual CORBA::ULong hash (void)
 Return a hash value for this object.
const ACE_INET_Addrobject_addr (void) const
 Return a reference to the <object_addr>.
const char * host (void) const
const char * host (const char *h)
CORBA::UShort port (void) const
 Return the port number.
CORBA::UShort port (CORBA::UShort p)
 Set the port number.
bool is_preferred_network (void) const
 Do we have a preferred local network for the target?
const char * preferred_network (void) const
 Return the preferred network if any.

Private Member Functions

int set (const ACE_INET_Addr &addr, int use_dotted_decimal_addresses)
 Helper method for setting INET_Addr.
void object_addr_i (void) const
 Helper method for object_addr () call.
CORBA::ULong preferred_interfaces (TAO_ORB_Core *oc)
 TAO_IIOP_Endpoint (const TAO_IIOP_Endpoint &)
 Canonical copy constructor.

Private Attributes

CORBA::String_var host_
 String representing the host name.
CORBA::UShort port_
 TCP port number.
ACE_INET_Addr object_addr_
bool object_addr_set_
 Flag to indicate if the address has been resolved and set.
TAO::IIOP_Endpoint_Info preferred_path_
 Preferred path for this endpoint.
bool is_encodable_
 Is this endpoint created encodable as part of the IOR?
TAO_IIOP_Endpointnext_

Friends

class TAO_IIOP_Profile
class TAO_SSLIOP_Profile

Detailed Description

TAO_IIOP_Endpoint.

IIOP-specific implementation of PP Framework Endpoint interface.


Constructor & Destructor Documentation

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint void   )


Default constructor.

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint const char *  host,
CORBA::UShort  port,
const ACE_INET_Addr addr,
CORBA::Short  priority = TAO_INVALID_PRIORITY


Constructor. This is the most efficient constructor since it does not require any address resolution processing.

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint const ACE_INET_Addr addr,
int  use_dotted_decimal_addresses


Constructor.

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint const char *  host,
CORBA::UShort  port,
CORBA::Short  priority


Constructor. This constructor is used when decoding endpoints.

TAO_IIOP_Endpoint::~TAO_IIOP_Endpoint void   )


Destructor.

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint const TAO_IIOP_Endpoint  )  [private]


Canonical copy constructor.

In private section to prevent clients from invoking this accidentally. Clients should only use duplicate () to make a depp copy


Member Function Documentation

int TAO_IIOP_Endpoint::addr_to_string char *  buffer,
size_t  length
[virtual]


Return a string representation for the address.

The purpose of this method is to provide a general interface to the underlying address object's addr_to_string method. This allows the protocol implementor to select the appropriate string format.

Returns:
-1 if buffer is too small.

Implements TAO_Endpoint.

TAO_Endpoint * TAO_IIOP_Endpoint::duplicate void   )  [virtual]


Makes a copy of this.

Implements TAO_Endpoint.

CORBA::ULong TAO_IIOP_Endpoint::hash void   )  [virtual]


Return a hash value for this object.

Implements TAO_Endpoint.

const char * TAO_IIOP_Endpoint::host const char *  h  )


Copy the string <h> into <host_> and return the resulting pointer. This object maintains ownership of this string.

ACE_INLINE const char * TAO_IIOP_Endpoint::host void   )  const


Return a pointer to the host string. This object maintains ownership of this string.

CORBA::Boolean TAO_IIOP_Endpoint::is_equivalent const TAO_Endpoint other_endpoint  )  [virtual]


Return true if this endpoint is equivalent to other_endpoint. Two endpoints are equivalent if their port and host are the same.

Implements TAO_Endpoint.

bool TAO_IIOP_Endpoint::is_preferred_network void   )  const


Do we have a preferred local network for the target?

TAO_Endpoint * TAO_IIOP_Endpoint::next void   )  [virtual]


Endpoints can be stringed in a list.

Returns:
The next endpoint in the list, if any.

Implements TAO_Endpoint.

const ACE_INET_Addr & TAO_IIOP_Endpoint::object_addr void   )  const


Return a reference to the <object_addr>.

void TAO_IIOP_Endpoint::object_addr_i void   )  const [private]


Helper method for object_addr () call.

ACE_INLINE CORBA::UShort TAO_IIOP_Endpoint::port CORBA::UShort  p  )


Set the port number.

ACE_INLINE CORBA::UShort TAO_IIOP_Endpoint::port void   )  const


Return the port number.

CORBA::ULong TAO_IIOP_Endpoint::preferred_interfaces TAO_ORB_Core oc  )  [private]


Generate preferred interfaces from the options passed in by the user.

const char * TAO_IIOP_Endpoint::preferred_network void   )  const


Return the preferred network if any.

int TAO_IIOP_Endpoint::set const ACE_INET_Addr addr,
int  use_dotted_decimal_addresses
[private]


Helper method for setting INET_Addr.


Friends And Related Function Documentation

friend class TAO_IIOP_Profile [friend]


friend class TAO_SSLIOP_Profile [friend]



Member Data Documentation

CORBA::String_var TAO_IIOP_Endpoint::host_ [private]


String representing the host name.

bool TAO_IIOP_Endpoint::is_encodable_ [private]


Is this endpoint created encodable as part of the IOR?

TAO_IIOP_Endpoint* TAO_IIOP_Endpoint::next_ [private]


IIOP Endpoints can be stringed into a list. Return the next endpoint in the list, if any.

ACE_INET_Addr TAO_IIOP_Endpoint::object_addr_ [mutable, private]


Cached instance of ACE_INET_Addr for use in making invocations, etc.

bool TAO_IIOP_Endpoint::object_addr_set_ [mutable, private]


Flag to indicate if the address has been resolved and set.

CORBA::UShort TAO_IIOP_Endpoint::port_ [private]


TCP port number.

TAO::IIOP_Endpoint_Info TAO_IIOP_Endpoint::preferred_path_ [private]


Preferred path for this endpoint.


The documentation for this class was generated from the following files:
Generated on Fri Dec 31 15:30:13 2004 for TAO by  doxygen 1.3.9.1
